Top Safety Pick

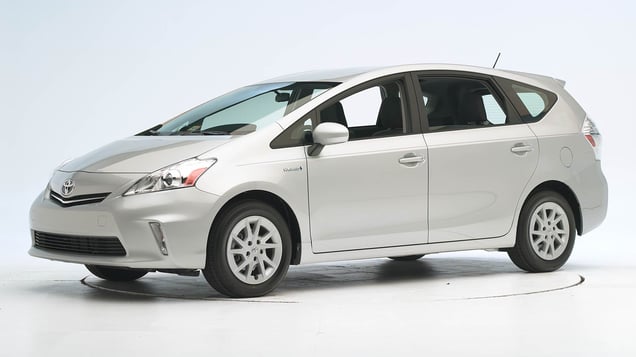

2012 Toyota Prius v

midsize car / 4-door wagon

2012 Toyota Prius v 4-door wagon

Crashworthiness

Rating overview
Small overlap front: driver-side
Moderate overlap front
Side
Roof strength
Head restraints & seats

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2012-14 models

Tested vehicle: 2012 Toyota Prius v Two wagon

The Toyota Prius v wagon was introduced in the 2012 model year. It is derived from the Toyota Prius but is longer and taller to provide more rear seat room and cargo-carrying capacity.

Overall evaluation
Structure and safety cage
Injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Restraints and dummy kinematics
The dummy’s head barely contacted the frontal airbag before sliding off the left side as the steering column moved 13 cm to the right. Additionally, the seat belt allowed excessive forward excursion of the dummy’s head and torso, permitting the head to hit the instrument panel. The side curtain airbag deployed too late during the crash, dropping onto the back of the head and pushing it outboard of the inflating curtain, leaving the dummy's head vulnerable to contact with side structure and outside objects. The side torso airbag deployed.

Action shot taken during the small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was not maintained well.

During the crash, the dummy's head barely contacted the frontal airbag before sliding off to the left, and the seat belt allowed the dummy to move too far forward, with the head hitting the instrument panel. The side curtain airbag deployed too late to offer any head protection, leaving the dummy's head exposed to contact with side structure and outside objects.

Intrusion into the occupant compartment was extensive as the left front wheel was forced rearward and inward into the door hinge pillar, driver footwell, and instrument panel during the crash. Left hip and left lower leg injury risk was high.

Moderate overlap front

Rating applies to 2012-17 models

Tested vehicle: 2012 Toyota Prius v wagon

The Toyota Prius v wagon was introduced in the 2012 model year. It is derived from the Toyota Prius but is longer and taller to provide more rear seat room and cargo-carrying capacity. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Toyota as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Restraints and dummy kinematics

Side

Rating applies to 2012 models

Tested vehicle: 2012 Toyota Prius v Three wagon with standard front and rear head curtain airbags and standard front seat-mounted torso airbags

The Toyota Prius v wagon was introduced in the 2012 model year. It is derived from the Toyota Prius but is longer and taller to provide more rear seat room and cargo-carrying capacity.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
The dummy's head pushed past the side curtain airbag and was hit by the window sill of the passenger door. This impact did not produce high head injury measures, but the head protection is inadequate. The side airbag didn’t unfurl completely during deployment, which contributed to the head moving outward excessively.

View of the vehicle and barrier just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag.

The side curtain airbag did not unfurl completely, and smeared greasepaint shows that the dummy's head was hit by the window sill (photo taken before rear door removed).

Roof strength

Rating applies to 2012-17 models

Tested vehicle: 2012 Toyota Prius v Two wagon

Overall evaluation
Curb weight 3,274 lbs
Peak force 14,180 lbs
Strength-to-weight ratio 4.33

Head restraints & seats

Rating applies to 2012-17 models

Seat type: Manual cloth seats

Overall evaluation
Dynamic rating
Seat/head restraint geometry
