2012 Mercedes-Benz E-Class

large luxury car / 4-door sedan

2012 Mercedes-Benz E-Class 4-door sedan

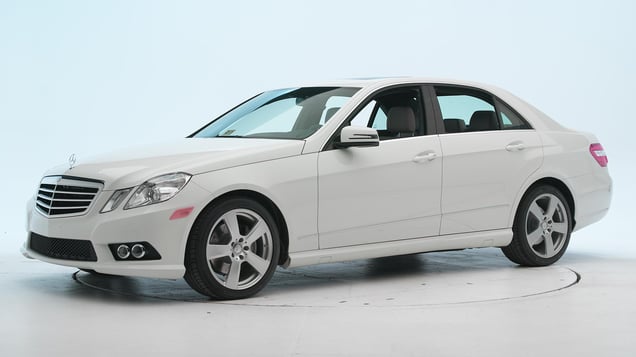

2010 Mercedes E class shown

Crashworthiness

Rating overview
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Other available safety features

  • Optional blind spot detection
  • Optional lane departure warning
  • Optional lane departure prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Moderate overlap front: original test

Rating applies to 2010-16 models

Tested vehicle: 2010 Mercedes-Benz E 350 4-door

The Mercedes-Benz E-Class was redesigned for the 2010 model year. Frontal ratings are assigned by the Institute based on a test conducted by Mercedes-Benz.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1001
Footwell intrusion
Footrest (cm) 1
Left (cm) 1
Center (cm) 2
Right (cm) 2
Brake pedal (cm) 2
Instrument panel rearward movement
Left (cm) -1
Right (cm) -1
Steering column movement
Upward (cm) -4
Rearward (cm) -8
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1001
Head
HIC-15 245
Peak gs at hard contact negligible
Neck
Tension (kN) 1.6
Extension bending moment (Nm) 10
Maximum Nij 0.37
Chest maximum compression (mm) 45
Legs
Femur force - left (kN) 2.3
Femur force - right (kN) 2.6
Knee displacement - left (mm) 3
Knee displacement - right (mm) 5
Maximum tibia index - left 0.47
Maximum tibia index - right 0.60
Tibia axial force - left (kN) 2.8
Tibia axial force - right (kN) 3.6
Foot acceleration (g)
Left 73
Right 63

About the original moderate overlap front test

Side: original test

Rating applies to 2010-16 models built after April 2010

Tested vehicle: 2010 Mercedes-Benz E 350 4-door with standard front and rear head curtain airbags and standard front seat-mounted torso airbags

The Mercedes-Benz E-Class was redesigned for the 2010 model year. Beginning with 2010 models built after April 2010, design changes were made to the front and rear door trim to improve occupant protection in side impact crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

View of the vehicle and barrier just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES1002
B-pillar to longitudinal centerline of driver's seat (cm) -24.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES1002
Head HIC-15 177
Neck
Tension (kN) 1.0
Compression (kN) 0.4
Shoulder
Lateral deflection (mm) 37
Lateral force (kN) 1.6
Torso
Maximum deflection (mm) 38
Average deflection (mm) 32
Maximum deflection rate (m/s) 2.85
Maximum viscous criterion (m/s) 0.51
Pelvis
Iliac force (kN) 1.9
Acetabulum force (kN) 2.0
Combined force (kN) 3.7
Left femur
L-M force (kN) 0.1
L-M moment (Nm) 80
A-P moment (Nm) 36

Passenger injury measures

Test ID CES1002
Head HIC-15 82
Neck
Tension (kN) 0.4
Compression (kN) 0.3
Shoulder
Lateral deflection (mm) 17
Lateral force (kN) 1.3
Torso
Maximum deflection (mm) 28
Average deflection (mm) 20
Maximum deflection rate (m/s) 2.79
Maximum viscous criterion (m/s) 0.31
Pelvis
Iliac force (kN) 0.6
Acetabulum force (kN) 1.8
Combined force (kN) 2.3
Left femur
L-M force (kN) 0.3
L-M moment (Nm) 40
A-P moment (Nm) -38

About the original side crash test

Roof strength

Rating applies to 2010-16 models

Tested vehicle: 2010 Mercedes-Benz E 350 4-door

Overall evaluation
Curb weight 3,880 lbs
Peak force 20,961 lbs
Strength-to-weight ratio 5.40

About the roof strength test

Head restraints & seats

Seat type: Seats with auto-adjust head restraint AHR

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Seats with auto-adjust head restraint AHR
Geometry
Backset (mm) 22
Distance below top of head (mm) -24
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 12.7
Head contact time (ms) 46
Force rating 1
Neck forces
Max neck shear force (N) 29
Max neck tension (N) 427

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
