Moderate overlap front: original test
Rating applies to 2011-12 models

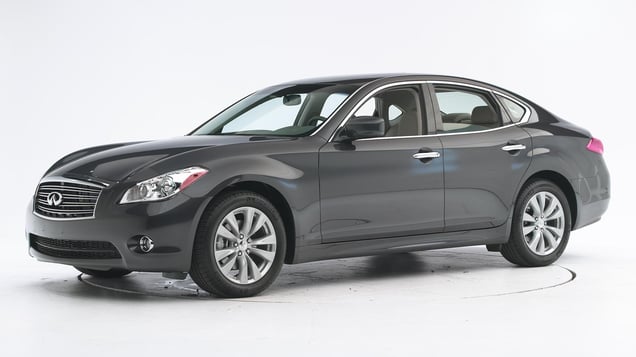

Tested vehicle: 2011 Infiniti M37x 4-door 4wd
The Infiniti M sedan was redesigned for the 2011 model year and renamed the M37 and M56 because the sizes of the two available engines were increased. Frontal ratings are assigned by the Institute based on a test conducted by Nissan as part of frontal crash test verification.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTF0912 |
---|---|
Footwell intrusion | |
Footrest (cm) | 4 |
Left (cm) | 8 |
Center (cm) | 11 |
Right (cm) | 11 |
Brake pedal (cm) | 11 |
Instrument panel rearward movement | |
Left (cm) | 1 |
Right (cm) | 2 |
Steering column movement | |
Upward (cm) | 5 |
Rearward (cm) | -1 |
A-pillar rearward movement (cm) | 0 |
Driver injury measures
Test ID | VTF0912 |
---|---|
Head | |
HIC-15 | 241 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.0 |
Extension bending moment (Nm) | 18 |
Maximum Nij | 0.22 |
Chest maximum compression (mm) | 30 |
Legs | |
Femur force - left (kN) | 1.4 |
Femur force - right (kN) | 1.1 |
Knee displacement - left (mm) | 0 |
Knee displacement - right (mm) | 4 |
Maximum tibia index - left | 0.31 |
Maximum tibia index - right | 0.48 |
Tibia axial force - left (kN) | 1.6 |
Tibia axial force - right (kN) | 2.4 |
Foot acceleration (g) | |
Left | 87 |
Right | 86 |
Side: original test
Rating applies to 2011-12 models
Tested vehicle: 2011 Infiniti M37x Premium 4-door 4wd with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
The Infiniti M sedan was redesigned for the 2011 model year and renamed the M37 and M56 because the sizes of the two available engines were increased. Side ratings are assigned by the Institute based on a test conducted by Nissan as part of side crash test verification.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
Measures of occupant compartment intrusion on driver side
Test ID | VTS0910 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -11.0 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | VTS0910 |
---|---|
Head HIC-15 | 235 |
Neck | |
Tension (kN) | 1.3 |
Compression (kN) | 0.3 |
Shoulder | |
Lateral deflection (mm) | 34 |
Lateral force (kN) | 1.6 |
Torso | |
Maximum deflection (mm) | 35 |
Average deflection (mm) | 29 |
Maximum deflection rate (m/s) | 5.45 |
Maximum viscous criterion (m/s) | 0.50 |
Pelvis | |
Iliac force (kN) | 1.5 |
Acetabulum force (kN) | 1.7 |
Combined force (kN) | 3.3 |
Left femur | |
L-M force (kN) | 0.4 |
L-M moment (Nm) | 18 |
A-P moment (Nm) | -93 |
Passenger injury measures
Test ID | VTS0910 |
---|---|
Head HIC-15 | 194 |
Neck | |
Tension (kN) | 0.2 |
Compression (kN) | 0.8 |
Shoulder | |
Lateral deflection (mm) | 48 |
Lateral force (kN) | 2.0 |
Torso | |
Maximum deflection (mm) | 32 |
Average deflection (mm) | 20 |
Maximum deflection rate (m/s) | 3.56 |
Maximum viscous criterion (m/s) | 0.40 |
Pelvis | |
Iliac force (kN) | 0.5 |
Acetabulum force (kN) | 1.5 |
Combined force (kN) | 1.9 |
Left femur | |
L-M force (kN) | 0.4 |
L-M moment (Nm) | 34 |
A-P moment (Nm) | 68 |
Roof strength
Rating applies to 2011-13 models
Tested vehicle: 2011 Infiniti M37 4-door
Rating does not apply to V8 4-wheel drive models. Rating of these models is Acceptable.
Overall evaluation | |
---|---|
Curb weight | 3,821 lbs |
Peak force | 16,085 lbs |
Strength-to-weight ratio | 4.21 |
Head restraints & seats
Seat type: Power leather seat
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | Power leather seat |
---|---|
Geometry | |
Backset (mm) | 51 |
Distance below top of head (mm) | 54 |
Seat design parameters | |
Pass/fail | Pass |
Max T1 acceleration (g) | 11.8 |
Head contact time (ms) | 68 |
Force rating | 1 |
Neck forces | |
Max neck shear force (N) | 22 |
Max neck tension (N) | 706 |
How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.
