Top Safety Pick

2012 Infiniti EX

midsize luxury SUV / 4-door SUV

2012 Infiniti EX 4-door SUV

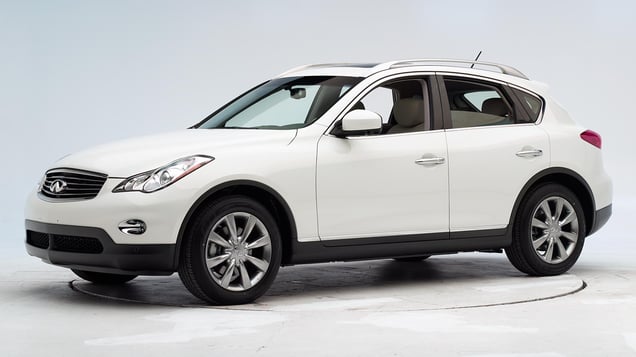

2011 Infiniti EX shown

Crashworthiness

Rating overview
Moderate overlap front
Side
Roof strength
Head restraints & seats

Other available safety features

  • Optional blind spot detection
  • Optional lane departure warning
  • Optional lane departure prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Moderate overlap front

Rating applies to 2008-13 models

Tested vehicle: 2008 Infiniti EX35 Journey 4-door 4wd

The Infiniti EX35 was introduced in the 2008 model year and renamed the EX37 in the 2013 model year because the engine size was increased. The EX was renamed the QX50 beginning with the 2014 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Action shot taken during the frontal offset crash test.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.

Smeared greasepaint indicates where the dummy's head brushed the side airbag during rebound. The head also hit the roof, sunvisor, and grab handle before moving back against the head restraint.

Intrusion into the driver's space was minimal, and all leg and foot injury measures were low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF0726
Footwell intrusion
Footrest (cm) 6
Left (cm) 7
Center (cm) 8
Right (cm) 7
Brake pedal (cm) 10
Instrument panel rearward movement
Left (cm) 1
Right (cm) 1
Steering column movement
Upward (cm) 5
Rearward (cm) 3
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID CEF0726
Head
HIC-15 237
Peak gs at hard contact 38
Neck
Tension (kN) 1.1
Extension bending moment (Nm) 21
Maximum Nij 0.26
Chest maximum compression (mm) 33
Legs
Femur force - left (kN) 1.7
Femur force - right (kN) 1.5
Knee displacement - left (mm) 3
Knee displacement - right (mm) 10
Maximum tibia index - left 0.46
Maximum tibia index - right 0.73
Tibia axial force - left (kN) 1.8
Tibia axial force - right (kN) 2.1
Foot acceleration (g)
Left 112
Right 59

How the moderate overlap front test is conducted

Side

Rating applies to 2008-13 models

Tested vehicle: 2008 Infiinti EX35 Journey 4-door 4wd with standard front and rear head curtain airbags and standard front seat-mounted torso airbags

The Infiniti EX35 was introduced in the 2008 model year and renamed the EX37in the 2013 model year because the engine size was increased.

Two tests of 2008 EX35 models were conducted. The injury ratings for the driver are based on just the second test; measures for the driver in the first test were not obtained because of equipment failure. The injury ratings for the rear passenger and the head protection ratings for both the driver and passenger are based on both tests. Structural ratings also are based on both tests.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

View of the vehicle and barrier just after the second of two crash tests.

View of the vehicle after the second crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag in the second test.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag in the second test.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES0746 CES0748
B-pillar to longitudinal centerline of driver's seat (cm) -14.5 -15.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES0746 CES0748
Head HIC-15 158
Neck
Tension (kN) 0.4
Compression (kN) 0.1
Shoulder
Lateral deflection (mm) 28
Lateral force (kN) 1.3
Torso
Maximum deflection (mm) 20
Average deflection (mm) 18
Maximum deflection rate (m/s) 4.07
Maximum viscous criterion (m/s) 0.22
Pelvis
Iliac force (kN) 0.7
Acetabulum force (kN) 2.0
Combined force (kN) 2.6
Left femur
L-M force (kN) 0.6
L-M moment (Nm) 140
A-P moment (Nm) -59

Passenger injury measures

Test ID CES0746 CES0748
Head HIC-15 28 36
Neck
Tension (kN) 0.1 0.0
Compression (kN) 0.4 0.3
Shoulder
Lateral deflection (mm) 16 18
Lateral force (kN) 1.1 1.2
Torso
Maximum deflection (mm) 14 16
Average deflection (mm) 12 13
Maximum deflection rate (m/s) 1.70 1.73
Maximum viscous criterion (m/s) 0.08 0.11
Pelvis
Iliac force (kN) 0.1 0.2
Acetabulum force (kN) 1.3 1.3
Combined force (kN) 1.3 1.3
Left femur
L-M force (kN) 0.7 0.7
L-M moment (Nm) 85 66
A-P moment (Nm) -27 -23

How the side crash test is conducted

Roof strength

Rating applies to 2008-13 models

Tested vehicle: 2011 Infiniti EX35 Journey 4-door 4wd

Overall evaluation
Curb weight 3,970 lbs
Peak force 15,878 lbs
Strength-to-weight ratio 4.00

How the roof strength test is conducted

Head restraints & seats

Rating applies to 2008-13 models

Seat type: Power leather seats with manual adjustable lumbar AHR

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Power leather seats with manual adjustable lumbar AHR
Geometry
Backset (mm) 26
Distance below top of head (mm) 38
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 11.6
Head contact time (ms) 62
Force rating 1
Neck forces
Max neck shear force (N) 58
Max neck tension (N) 494

How the head restraint & seat test is conducted
