Moderate overlap front: original test
Rating applies to 2011-13 models

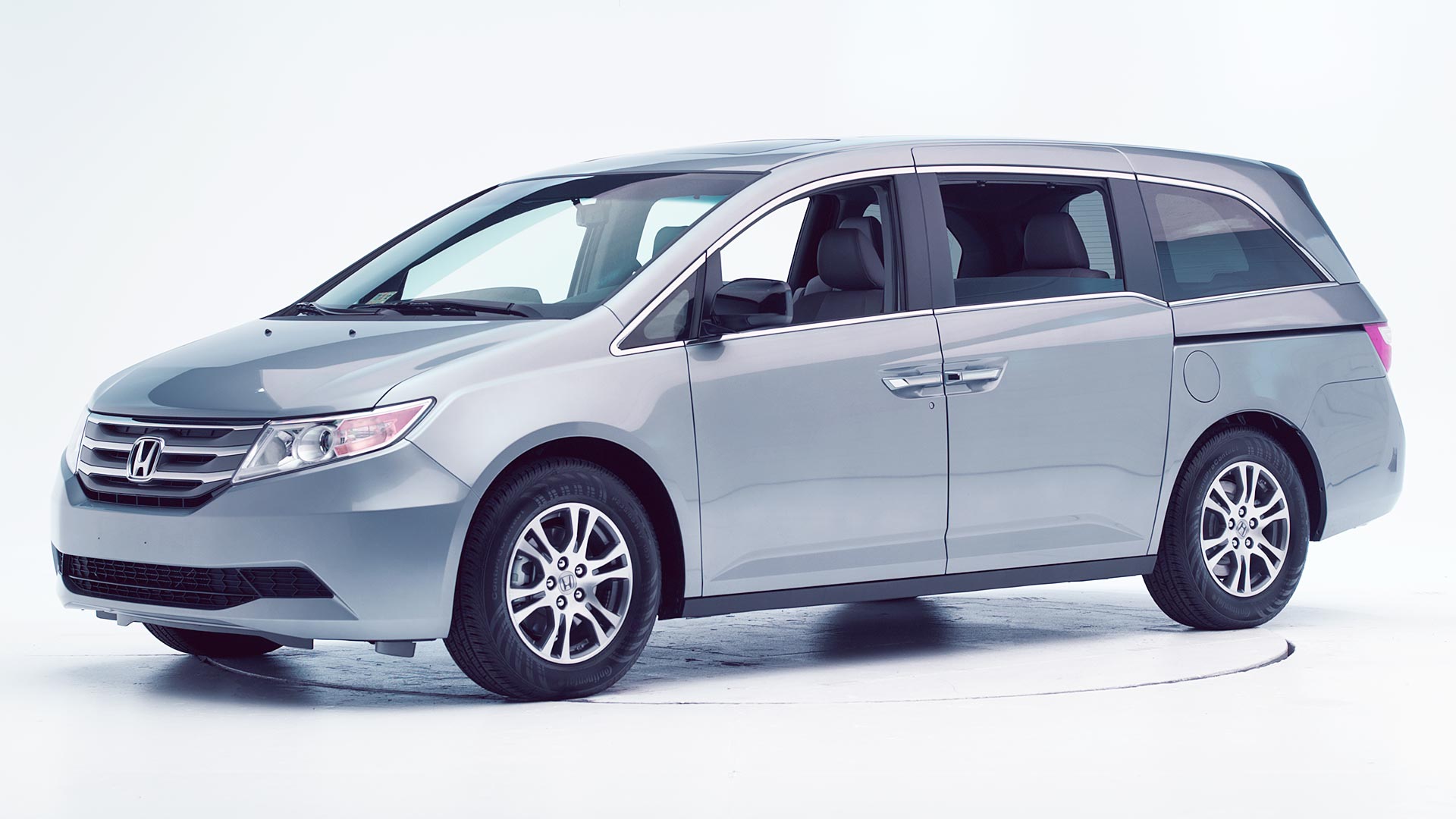

Tested vehicle: 2011 Honda Odyssey EX-L
The Honda Odyssey was redesigned for the 2011 model year. Frontal ratings are assigned by the Institute based on a test conducted by Honda as part of frontal crash test verification.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTF1011 |
---|---|
Footwell intrusion | |
Footrest (cm) | 7 |
Left (cm) | 7 |
Center (cm) | 9 |
Right (cm) | 14 |
Brake pedal (cm) | 3 |
Instrument panel rearward movement | |
Left (cm) | 2 |
Right (cm) | 1 |
Steering column movement | |
Upward (cm) | 5 |
Rearward (cm) | 2 |
A-pillar rearward movement (cm) | 0 |
Driver injury measures
Test ID | VTF1011 |
---|---|
Head | |
HIC-15 | 131 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.3 |
Extension bending moment (Nm) | 53 |
Maximum Nij | 0.31 |
Chest maximum compression (mm) | 24 |
Legs | |
Femur force - left (kN) | 0.3 |
Femur force - right (kN) | 0.7 |
Knee displacement - left (mm) | 0 |
Knee displacement - right (mm) | 0 |
Maximum tibia index - left | 0.63 |
Maximum tibia index - right | 0.99 |
Tibia axial force - left (kN) | 2.5 |
Tibia axial force - right (kN) | 5.1 |
Foot acceleration (g) | |
Left | 185 |
Right | 142 |
Side: original test
Rating applies to 2011-13 models
Tested vehicle: 2011 Honda Odyssey Touring with standard head curtain airbags for all three rows of seats and standard front seat-mounted torso airbags
The Honda Odyssey was redesigned for the 2011 model year. Side ratings are assigned by the Institute based on a test conducted by Honda as part of side crash test verification.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
Measures of occupant compartment intrusion on driver side
Test ID | VTS1005 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -18.5 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | VTS1005 |
---|---|
Head HIC-15 | 159 |
Neck | |
Tension (kN) | 0.8 |
Compression (kN) | 0.7 |
Shoulder | |
Lateral deflection (mm) | 22 |
Lateral force (kN) | 1.7 |
Torso | |
Maximum deflection (mm) | 22 |
Average deflection (mm) | 18 |
Maximum deflection rate (m/s) | 4.56 |
Maximum viscous criterion (m/s) | 0.20 |
Pelvis | |
Iliac force (kN) | 1.4 |
Acetabulum force (kN) | 0.9 |
Combined force (kN) | 2.2 |
Left femur | |
L-M force (kN) | 0.4 |
L-M moment (Nm) | 146 |
A-P moment (Nm) | 25 |
Passenger injury measures
Test ID | VTS1005 |
---|---|
Head HIC-15 | 99 |
Neck | |
Tension (kN) | 0.0 |
Compression (kN) | 0.5 |
Shoulder | |
Lateral deflection (mm) | 19 |
Lateral force (kN) | 1.6 |
Torso | |
Maximum deflection (mm) | 37 |
Average deflection (mm) | 32 |
Maximum deflection rate (m/s) | 4.55 |
Maximum viscous criterion (m/s) | 0.69 |
Pelvis | |
Iliac force (kN) | 0.4 |
Acetabulum force (kN) | 1.9 |
Combined force (kN) | 2.1 |
Left femur | |
L-M force (kN) | 1.0 |
L-M moment (Nm) | 148 |
A-P moment (Nm) | -28 |
Roof strength
Rating applies to 2011-13 models
Tested vehicle: 2011 Honda Odyssey EX
Overall evaluation | |
---|---|
Curb weight | 4,398 lbs |
Peak force | 22,666 lbs |
Strength-to-weight ratio | 5.15 |
Head restraints & seats
Seat type: Power leather seats (AHR)
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | Power leather seats (AHR) |
---|---|
Geometry | |
Backset (mm) | 58 |
Distance below top of head (mm) | 30 |
Seat design parameters | |
Pass/fail | Pass |
Max T1 acceleration (g) | 11.3 |
Head contact time (ms) | 64 |
Force rating | 1 |
Neck forces | |
Max neck shear force (N) | 1 |
Max neck tension (N) | 224 |
How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.
