2024 Honda CR-V

small SUV / 4-door SUV

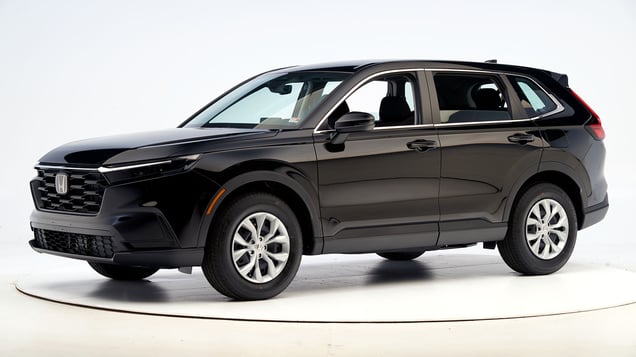

2024 Honda CR-V 4-door SUV

Crashworthiness

Rating overview
Small overlap front
Moderate overlap front: original test
Moderate overlap front: updated test
Side: updated test

Crash avoidance & mitigation

Headlights
Front crash prevention: vehicle-to-vehicle 2.0
Standard system
Front crash prevention: pedestrian
Standard system

Seat belts & child restraints

Seat belt reminders
LATCH ease of use

Other available safety features

  • Optional blind spot detection
  • Standard lane departure warning & prevention

Key

  • Good
  • Acceptable
  • Marginal
  • Poor

Small overlap front

The small overlap front evaluation consists of a driver-side and a passenger-side component. If the results of the two evaluations differ, then the combined small overlap rating is equal to the lower rating.

Driver-side

  • Rating applies to 2023-24 models

Tested vehicle: 2023 Honda CR-V EX-L 4-door 4wd

The Honda CR-V was redesigned for the 2023 model year. Driver-side small overlap frontal ratings are assigned by the Institute based on a test of a 2023 CR-V conducted by Honda as part of frontal crash test verification.

Overall driver-side evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTN2210
Lower occupant compartment
Lower hinge pillar max (cm) 2
Footrest (cm) 3
Left toepan (cm) 1
Brake pedal (cm) 1
Parking brake (cm)
Rocker panel lateral average (cm) 1
Upper occupant compartment
Steering column 0
Upper hinge pillar max (cm) 2
Upper dash (cm) 2
Lower instrument panel (cm) 2

Driver injury measures

Test ID VTN2210
Head
HIC-15 159
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 13
Maximum Nij 0.18
Chest maximum compression (mm) 16
Femur (kN)
Left 0.3
Right 0.1
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.32
Right 0.29
Tibia axial force (kN)
Left 1.5
Right 0.6
Foot acceleration (g)
Left 61
Right 60

Passenger-side

  • Rating applies to 2023-24 models

Tested vehicle: 2023 Honda CR-V EX-L 4-door 4wd

The Honda CR-V was redesigned for the 2023 model year. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test of a 2023 CR-V conducted by Honda as part of frontal crash test verification.

Overall passenger-side evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID VTP2225
Lower occupant compartment
Lower hinge pillar max (cm) 5
Footrest (cm) 7
Right toepan (cm) 3
Center toepan (cm) 3
Rocker panel lateral average (cm) 2
Upper occupant compartment
Center dash (cm) 1
Upper hinge pillar max (cm) 3
Upper dash (cm) 2
Right lower dash (cm) 2

Passenger injury measures

Test ID VTP2225
Head
HIC-15 124
Peak gs at hard contact no contact
Neck
Tension (kN) 0.8
Extension bending moment (Nm) 11
Maximum Nij 0.14
Chest maximum compression (mm) 12
Femur (kN)
Left 0.7
Right 0.6
Knee displacement (mm)
Left 0
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.28
Right 0.33
Tibia axial force (kN)
Left 2.1
Right 1.2
Foot acceleration (g)
Left 33
Right 40

Driver injury measures

Test ID VTP2225
Head
HIC-15 116
Peak gs at hard contact no contact
Neck
Tension (kN) 0.6
Extension bending moment (Nm) 15
Maximum Nij 0.21
Chest maximum compression (mm) 13
Femur (kN)
Left 0.3
Right 0.1
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.18
Right 0.27
Tibia axial force (kN)
Left 0.9
Right 1.0
Foot acceleration (g)
Left 32
Right 70

How the small overlap front test is conducted

Moderate overlap front: original test

Rating applies to 2023-24 models

Tested vehicle: 2023 Honda CR-V EX-L 4-door 4wd

The Honda CR-V was redesigned for the 2023 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test of a 2023 CR-V conducted by Honda as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF2212
Footwell intrusion
Footrest (cm) 6
Left (cm) 10
Center (cm) 4
Right (cm) 5
Brake pedal (cm) 5
Instrument panel rearward movement
Left (cm) 1
Right (cm) 0
Steering column movement
Upward (cm) -2
Rearward (cm) -7
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF2212
Head
HIC-15 169
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 18
Maximum Nij 0.28
Chest maximum compression (mm) 22
Legs
Femur force - left (kN) 0.4
Femur force - right (kN) 0.7
Knee displacement - left (mm) 0
Knee displacement - right (mm) 0
Maximum tibia index - left 0.31
Maximum tibia index - right 0.66
Tibia axial force - left (kN) 1.8
Tibia axial force - right (kN) 2.2
Foot acceleration (g)
Left 86
Right 57

How the moderate overlap front test is conducted

Moderate overlap front: updated test

Rating applies to 2023-24 models

Tested vehicle: 2024 Honda CR-V LX 4-door 4wd

The Honda CR-V was redesigned for the 2023 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Thigh/hip
Leg/foot
Driver restraints and dummy kinematics
Rear passenger injury measures
Head/neck
Chest
Thigh
Rear passenger restraints and dummy kinematics

View of the vehicle after the crash showing the airbags and damage to the occupant compartment.

The rear passenger dummy's head remained a safe distance from the front seatback.

Rear passenger dummy injury values indicate a low risk of injury to the head or neck and a moderate risk of injury to the chest. During the crash, the shoulder belt moved too far upward toward the dummy’s neck, compromising the effectiveness of the rear restraint system.

The rear passenger dummy's lap belt moved from the ideal position on the pelvis onto the abdomen, increasing the risk of abdominal injuries.

During the crash, the left rear seat pan moved forward and rotated downward due to deformation in the brackets that secure it to the seat back.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF2343
Footwell intrusion
Footrest (cm) 3
Left (cm) 6
Center (cm) 4
Right (cm) 5
Brake pedal (cm) 3
Instrument panel rearward movement
Left (cm) 0
Right (cm) 0
Steering column movement
Upward (cm) 1
Rearward (cm) -4
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID CEF2343
Head
HIC-15 178
Peak gs at hard contact no contact
Neck
Tension (kN) 1.3
Extension bending moment (Nm) 29
Maximum Nij 0.26
Chest maximum compression (mm) 18
Femur (kN)
Left 0.5
Right 0.5
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.28
Right 0.47
Tibia axial force (kN)
Left 2.0
Right 2.5
Foot acceleration (g)
Left 61
Right 72

Rear passenger injury measures

Test ID CEF2343
Head
HIC-15 for head contact during forward excursion
no contact
Peak gs at hard contact no contact
Neck
Tension (kN) 1.7
Compression (kN) 0.5
Maximum Nij for head contact during forward excursion
no contact
Chest
Chest index 42
Shoulder belt tension (kN) 4.3
Thigh (kN)
Left femur compression 0.4
Right femur compression 0.2

How the updated moderate overlap front test is conducted

February 2024 adjustment to rating criteria

Side: updated test

Rating applies to 2023-24 models

Tested vehicle: 2023 Honda CR-V EX-L 4-door 4wd

The Honda CR-V was redesigned for the 2023 model year. Side 2.0 ratings are assigned by the Institute based on a test of a 2023 CR-V conducted by Honda as part of side crash test verification.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS2234
B-pillar to longitudinal centerline of driver's seat (cm) -20.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS2234
Head
HIC-15 138
Peak gs at hard contact no contact
Neck
Tension (kN) 0.8
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 23
Lateral force (kN) 0.9
Torso
Maximum deflection (mm) 33
Average deflection (mm) 30
Maximum deflection rate (m/s) 2.96
Maximum viscous criterion (m/s) 0.39
Pelvis
Combined force (kN) 4.9

Passenger injury measures

Test ID VTS2234
Head
HIC-15 119
Peak gs at hard contact no contact
Neck
Tension (kN) 0.2
Compression (kN) 0.4
Shoulder
Lateral deflection (mm) 24
Lateral force (kN) 1.0
Torso
Maximum deflection (mm) 27
Average deflection (mm) 22
Maximum deflection rate (m/s) 3.12
Maximum viscous criterion (m/s) 0.29
Pelvis
Combined force (kN) 3.4

How the side crash test is conducted

Headlights

Trim level(s)

  • All trims
Low-beam headlight typeLED reflector
High-beam headlight typeLED reflector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was good on the sharp left curve and fair on the gradual left and both right curves.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on the gradual left curve and fair on the sharp left and both right curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

Technical measurements for this test
Trim level(s)
  • All trims
Low-beam headlight type LED reflector
High-beam headlight type LED reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2023-24 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 85.7 m None
Straightaway left edge 54.7 m None
250m radius right curve, right edge 58.8 m None
250m radius left curve, right edge 59.6 m None
150m radius right curve, right edge 50.1 m None
150m radius left curve, left edge 55.1 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 146.6 m
Straightaway left edge 150.4 m
250m radius right curve, right edge 74.0 m
250m radius left curve, left edge 76.1 m
150m radius right curve, right edge 59.9 m
150m radius left curve, left edge 60.4 m

How headlights are evaluated

Front crash prevention: vehicle-to-vehicle 2.0

Rating applies to all 2023-24 models

System details

  • standard Collision Mitigation Braking System

Overall evaluation

Passenger car target

Test runSpeed reductionTimely warning?
31 mph/target centeredCollision avoided
31 mph/target off-centerCollision avoided
37 mph/target centeredCollision avoided
37 mph/target off-centerCollision avoided
43 mph/target centeredCollision nearly avoided
43 mph/target off-centerCollision nearly avoided

Motorcycle target

Test runSpeed reductionTimely warning?
31 mph/target centeredCollision avoided
31 mph/target off-centerCollision avoided
37 mph/target centeredCollision avoided
37 mph/target off-centerCollision avoided
43 mph/target centered27 mph
43 mph/target off-center36 mph

Semitrailer

Only warning is tested with the semitrailer.

Test runTimely warning?
31 mph/target centered
37 mph/target centered
43 mph/target centered

How front crash prevention is evaluated

Front crash prevention: pedestrian

Rating applies to all 2024 models

System details

  • standard Collision Mitigation Braking System
Overall evaluation
Includes high-beam assist credit

Crossing child — day

  • In the 12 mph test, impact speed was reduced by 10 mph.
  • In the 25 mph test, impact speed was reduced by 18 mph.

Crossing adult — night

  • In the 12 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle failed to slow.
  • In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, impact speed was reduced by 17 mph.

Parallel adult — night

  • In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle failed to slow.
  • In the 37 mph test, impact speed was reduced by 33 mph when using its high beams and a warning was issued 2.4 seconds before impact. When using its low beams, this vehicle failed to slow and a warning was issued 0 seconds before impact.

How front crash prevention is evaluated

Seat belt reminders

Rating applies to 2023-24 models

Overall evaluation
Front row
Unbelted occupant alert (audible & visual)
Initiation time
DurationLong enough (90+ seconds)
Volume
Audio frequency
Second row
Startup status alert (visual)
Initiation time
Duration at least 60 seconds
Belt disengaged alert (audible & visual)
Initiation time
Duration at least 30 seconds
Volume
Audio frequency
Technical measurements for this test
Background cabin sound pressure level at 24 km/h 51 dB
Audible signal sound pressure level at 24 km/h 64 dB
Difference between background and signal 13.3 dB
Background cabin sound pressure level at 40 km/h 56 dB
Audible signal sound pressure level at 40 km/h 63 dB
Difference between background and signal 7.6 dB
Dominant audio frequency 736 Hz

How seat belt reminders are evaluated

Child seat anchors

Rating applies to 2023-24 models

Overall evaluation
Vehicle trimEX
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor and the ability to borrow lower anchors from the other seating positions.

Note: When anchors are borrowed, they aren't available to use in their designated positions.

Overall evaluation
Vehicle trimEX
Seat type cloth
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
difficult to maneuver around anchors
2
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
Can be borrowed from 1 and 3
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
difficult to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 48
Lower anchor B
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 52
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

Seat position 22

2

Lower anchor A
Lower latch is shared for this seat position
Lower anchor B
Lower latch is shared for this seat position
Tether anchor
Location Roof
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

Seat position 23

1

Lower anchor A
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 48
Lower anchor B
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 45
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

How child seat anchors are evaluated
