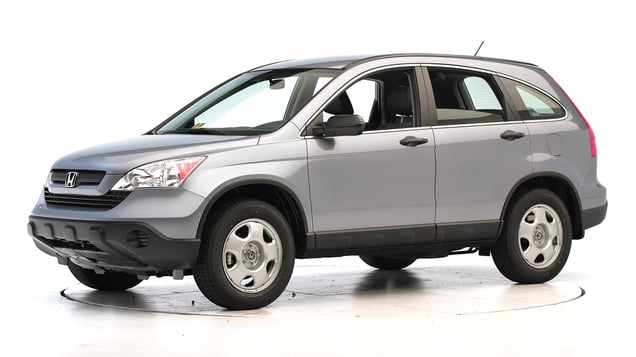

2008 Honda CR-V

Tested vehicle: 2007 Honda CR-V EX 4-door 4wd
Rating applies to 2007-11 models

The Honda CR-V was redesigned for the 2007 model year. Frontal ratings are assigned by the Institute based on a test conducted by Honda.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Evaluation criteria	Measurement
Test ID	VTF0611
Footwell intrusion
Footrest (cm)	2
Left (cm)	6
Center (cm)	5
Right (cm)	5
Brake pedal (cm)	7
Instrument panel rearward movement
Left (cm)	0
Right (cm)	0
Steering column movement
Upward (cm)	1
Rearward (cm)	-1
A-pillar rearward movement (cm)	0

Driver injury measures

Evaluation criteria	Measurement
Test ID	VTF0611
Head
HIC-15	223
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.8
Extension bending moment (Nm)	8
Maximum Nij	0.17
Chest maximum compression (mm)	30
Legs
Femur force - left (kN)	0.3
Femur force - right (kN)	0.8
Knee displacement - left (mm)	0
Knee displacement - right (mm)	0
Maximum tibia index - left	0.57
Maximum tibia index - right	0.64
Tibia axial force - left (kN)	3.3
Tibia axial force - right (kN)	3.5
Foot acceleration (g)
Left	92
Right	84

About the original moderate overlap front test

Tested vehicle: 2007 Honda CR-V LX 4-door 4wd with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
Rating applies to 2007-11 models

The Honda CR-V was redesigned for the 2007 model year.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID	CES0641
B-pillar to longitudinal centerline of driver's seat (cm)	-13.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Evaluation criteria	Measurement
Test ID	CES0641
Head HIC-15	266
Neck
Tension (kN)	1.1
Compression (kN)	0.2
Shoulder
Lateral deflection (mm)	43
Lateral force (kN)	1.8
Torso
Maximum deflection (mm)	34
Average deflection (mm)	30
Maximum deflection rate (m/s)	2.78
Maximum viscous criterion (m/s)	0.49
Pelvis
Iliac force (kN)	2.8
Acetabulum force (kN)	2.8
Combined force (kN)	5.6
Left femur
L-M force (kN)	0.6
L-M moment (Nm)	71
A-P moment (Nm)	31

Passenger injury measures

Evaluation criteria	Measurement
Test ID	CES0641
Head HIC-15	197
Neck
Tension (kN)	0.1
Compression (kN)	0.8
Shoulder
Lateral deflection (mm)	41
Lateral force (kN)	1.7
Torso
Maximum deflection (mm)	33
Average deflection (mm)	28
Maximum deflection rate (m/s)	3.41
Maximum viscous criterion (m/s)	0.51
Pelvis
Iliac force (kN)	1.2
Acetabulum force (kN)	3.4
Combined force (kN)	4.1
Left femur
L-M force (kN)	0.3
L-M moment (Nm)	73
A-P moment (Nm)	54

About the original side crash test

Tested vehicle: 2009 Honda CR-V LX 4-door 2wd
Rating applies to 2007-11 models

(Curb weight taken from 2007 Honda CR-V LX 4-door 4wd)

Seat type: All seats AHR

Technical measurements for this test

Seat type	All seats AHR
Geometry
Backset (mm)	40
Distance below top of head (mm)	48
Seat design parameters
Pass/fail	Pass
Max T1 acceleration (g)	12.3
Head contact time (ms)	61
Force rating	1
Neck forces
Max neck shear force (N)	26
Max neck tension (N)	453

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
