Moderate overlap front: original test

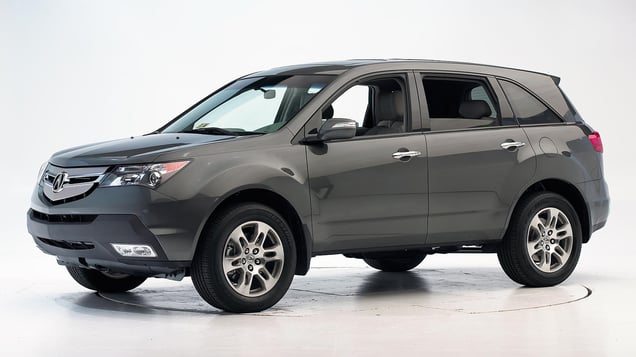

Tested vehicle: 2007 Acura MDX 4D 4wd
Rating applies to 2007-13 models
The Acura MDX was redesigned for the 2007 model year. Frontal ratings are assigned by the Institute based on a test conducted by Honda.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTF0614 |
| Footwell intrusion | |
| Footrest (cm) | 7 |
| Left (cm) | 8 |
| Center (cm) | 11 |
| Right (cm) | 11 |
| Brake pedal (cm) | 4 |
| Instrument panel rearward movement | |
| Left (cm) | 1 |
| Right (cm) | 1 |
| Steering column movement | |
| Upward (cm) | -1 |
| Rearward (cm) | 1 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTF0614 |
| Head | |
| HIC-15 | 199 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.0 |
| Extension bending moment (Nm) | 8 |
| Maximum Nij | 0.25 |
| Chest maximum compression (mm) | 29 |
| Legs | |
| Femur force - left (kN) | 0.0 |
| Femur force - right (kN) | 2.2 |
| Knee displacement - left (mm) | 1 |
| Knee displacement - right (mm) | 1 |
| Maximum tibia index - left | 0.37 |
| Maximum tibia index - right | 0.46 |
| Tibia axial force - left (kN) | 2.0 |
| Tibia axial force - right (kN) | 2.5 |
| Foot acceleration (g) | |
| Left | 61 |
| Right | 44 |
Side: original test
Tested vehicle: 2007 Acura MDX 4-door 4wd with standard head curtain airbags for all three rows of seats and standard front seat-mounted torso airbags
Rating applies to 2007-09 models
The Acura MDX was redesigned for the 2007 model year. Structure ratings are based on this test and on a later test of a 2010 MDX model.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Test ID | CES0711 | VTS0907 |
|---|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -16.5 | -15.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | ||
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES0711 |
| Head HIC-15 | 133 |
| Neck | |
| Tension (kN) | 1.2 |
| Compression (kN) | 0.0 |
| Shoulder | |
| Lateral deflection (mm) | 25 |
| Lateral force (kN) | 1.6 |
| Torso | |
| Maximum deflection (mm) | 21 |
| Average deflection (mm) | 19 |
| Maximum deflection rate (m/s) | 2.97 |
| Maximum viscous criterion (m/s) | 0.19 |
| Pelvis | |
| Iliac force (kN) | 3.0 |
| Acetabulum force (kN) | 1.8 |
| Combined force (kN) | 4.6 |
| Left femur | |
| L-M force (kN) | 0.3 |
| L-M moment (Nm) | 79 |
| A-P moment (Nm) | -40 |
Passenger injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES0711 |
| Head HIC-15 | 94 |
| Neck | |
| Tension (kN) | 0.0 |
| Compression (kN) | 0.7 |
| Shoulder | |
| Lateral deflection (mm) | 21 |
| Lateral force (kN) | 1.4 |
| Torso | |
| Maximum deflection (mm) | 32 |
| Average deflection (mm) | 23 |
| Maximum deflection rate (m/s) | 3.11 |
| Maximum viscous criterion (m/s) | 0.48 |
| Pelvis | |
| Iliac force (kN) | 2.3 |
| Acetabulum force (kN) | 2.6 |
| Combined force (kN) | 4.9 |
| Left femur | |
| L-M force (kN) | 0.3 |
| L-M moment (Nm) | 65 |
| A-P moment (Nm) | 29 |
Head restraints & seats
Seat type: Power leather seats AHR built after May 2007
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
Technical measurements for this test
| Seat type | Power leather seats AHR mfg after May 2007 |
|---|---|
| Geometry | |
| Backset (mm) | 24 |
| Distance below top of head (mm) | 39 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 12.0 |
| Head contact time (ms) | 64 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 28 |
| Max neck tension (N) | 607 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
