Top Safety Pick

2010 Volvo XC60

midsize luxury SUV / 4-door SUV

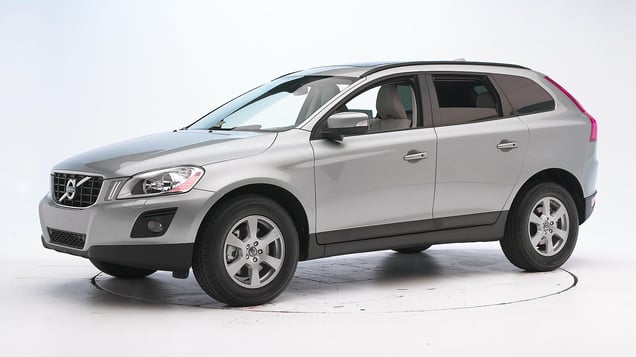

2010 Volvo XC60 4-door SUV

Crashworthiness

Rating overview
Moderate overlap front
Side
Roof strength
Head restraints & seats

Other available safety features

  • Standard daytime running lights
  • Optional blind spot detection
  • Optional lane departure warning

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Moderate overlap front

Rating applies to 2010-17 models

Tested vehicle: 2010 Volvo XC60 3.2 4-door 4wd

The Volvo XC60 was introduced in the 2010 model year.

Overall evaluation
Structure and safety cage
Injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Restraints and dummy kinematics

Action shot taken during the frontal offset crash test.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained very well.

Intrusion into the driver's space was minimal, and all leg and foot injury measures were low.

Smeared greasepaint indicates where the dummy's head hit the roof rail during rebound. Head acceleration from this hit was low.

Side

Rating applies to 2010-17 models

Tested vehicle: 2010 Volvo XC60 3.2 4-door 4wd with standard front and rear head curtain airbags and standard front seat-mounted torso airbags

The Volvo XC60 was introduced in the 2010 model year.

During the test, the lower side seat trim was pushed against a service release button for the safety belt, which then detached from its anchor on the outboard side of the driver's seat. Although there was no unusual movement of the dummy, the dummy was not restrained during part of the crash event. Volvo has addressed the problem on models built after November 2009 and is issuing a recall to fix the belts on cars built earlier.

Cars built before the fix and subsequently not repaired would be rated only Acceptable and would not be eligible for TOP SAFETY PICK status.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Head protection

View of the vehicle and barrier just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

The driver dummy's head (shown) was protected from being hit by hard structures by the side airbags. The rear passenger dummy's head was protected by the side curtain airbag.

During the crash, the lap portion of the driver dummy's lap/shoulder belt detached from its anchorage near the door and moved into the passenger's seat. Volvo is conducting a recall to fix the seat belt anchorage.

Roof strength

Rating applies to 2010-17 models

Tested vehicle: 2010 Volvo XC60 3.2 4-door 4wd

Overall evaluation
Curb weight 4,172 lbs
Peak force 21,828 lbs
Strength-to-weight ratio 5.23

Head restraints & seats

Rating applies to 2010-17 models

Seat type: All seats

Overall evaluation
Dynamic rating
Seat/head restraint geometry
