Top Safety Pick +Top Safety Pick criteria

2019 Volvo XC40

small SUV / 4-door SUV

Award applies only to vehicles with specific headlights

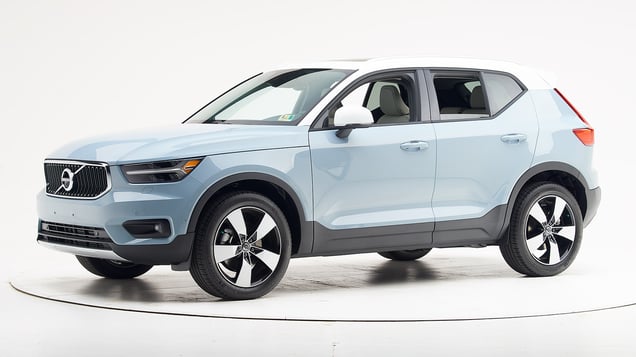

2019 Volvo XC40 4-door SUV

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front: original test
Side: original test
Side: updated test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights (varies by trim/option)
Front crash prevention: vehicle-to-vehicle
Standard system
Superior
Front crash prevention: pedestrian (day)
Standard system
Superior

Seat belts & child restraints

LATCH ease of use

Other available safety features

  • Optional blind spot detection
  • Standard lane departure warning & prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2019-24 models

Tested vehicle: 2019 Volvo XC40 T5 Momentum 4-door 4wd

The Volvo XC40 was introduced in the 2019 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained very well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

The driver's space was maintained well, and risk of injuries to the dummy's legs and feet was low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1810
Lower occupant compartment
Lower hinge pillar max (cm) 4
Footrest (cm) 2
Left toepan (cm) 1
Brake pedal (cm) 4
Parking brake (cm)
Rocker panel lateral average (cm) 1
Upper occupant compartment
Steering column 0
Upper hinge pillar max (cm) 3
Upper dash (cm) 3
Lower instrument panel (cm) 2

Driver injury measures

Test ID CEN1810
Head
HIC-15 100
Peak gs at hard contact no contact
Neck
Tension (kN) 1.0
Extension bending moment (Nm) 16
Maximum Nij 0.23
Chest maximum compression (mm) 16
Femur (kN)
Left 0.9
Right 0.7
Knee displacement (mm)
Left 0
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.60
Right 0.43
Tibia axial force (kN)
Left 2.6
Right 1.4
Foot acceleration (g)
Left 55
Right 43

How the driver-side small overlap front test is conducted

Small overlap front: passenger-side

Rating applies to 2019-24 models

Tested vehicle: 2019 Volvo XC40 T5 4-door 4wd

The Volvo XC40 was introduced in the 2019 model. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Volvo as part of front crash test verification.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID VTP1901
Lower occupant compartment
Lower hinge pillar max (cm) 16
Footrest (cm) 9
Right toepan (cm) 4
Center toepan (cm) 3
Rocker panel lateral average (cm) 8
Upper occupant compartment
Center dash (cm) 3
Upper hinge pillar max (cm) 7
Upper dash (cm) 4
Right lower dash (cm) 4

Passenger injury measures

Test ID VTP1901
Head
HIC-15 136
Peak gs at hard contact no contact
Neck
Tension (kN) 0.7
Extension bending moment (Nm) 9
Maximum Nij 0.15
Chest maximum compression (mm) 24
Femur (kN)
Left 2.0
Right 6.6
Knee displacement (mm)
Left 0
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 6
Maximum tibia index
Left 0.33
Right 0.52
Tibia axial force (kN)
Left 1.0
Right 1.4
Foot acceleration (g)
Left 27
Right 43

Driver injury measures

Test ID VTP1901
Head
HIC-15 98
Peak gs at hard contact no contact
Neck
Tension (kN) 1.1
Extension bending moment (Nm) 5
Maximum Nij 0.20
Chest maximum compression (mm) 27
Femur (kN)
Left 0.4
Right 0.2
Knee displacement (mm)
Left 1
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.33
Right 0.19
Tibia axial force (kN)
Left 0.4
Right 0.3
Foot acceleration (g)
Left 30
Right 51

How the passenger-side small overlap front test is conducted

Moderate overlap front: original test

Rating applies to 2019-23 models

Tested vehicle: 2019 Volvo XC40 T5 Momentum 4-door 4wd

The Volvo XC40 was introduced in the 2019 model year. Two moderate overlap frontal tests of the XC40 were conducted, one by the Institute and the other by Volvo as part of frontal crash test verification. Ratings are based on both tests, but the vehicle specifications shown below are based on the Institute’s test.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Action shot taken during the Institute's moderate overlap frontal crash test.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained very well (Institute test car shown).

Smeared greasepaint indicates where the dummy's head contacted the side curtain airbag during rebound in the Institute's test.

Intrusion into the driver's space was minimal in both tests, and all leg and foot injury measures were low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF1901 VTF1902
Footwell intrusion
Footrest (cm) 4 5
Left (cm) 6 7
Center (cm) 3 4
Right (cm) 4 4
Brake pedal (cm) 4 3
Instrument panel rearward movement
Left (cm) 0 0
Right (cm) 0 -1
Steering column movement
Upward (cm) 1 -1
Rearward (cm) -1 0
A-pillar rearward movement (cm) 0 0

Driver injury measures

Test ID CEF1901 VTF1902
Head
HIC-15 275 261
Peak gs at hard contact no contact no contact
Neck
Tension (kN) 1.1 1.3
Extension bending moment (Nm) 7 8
Maximum Nij 0.21 0.26
Chest maximum compression (mm) 22 27
Legs
Femur force - left (kN) 0.6 0.9
Femur force - right (kN) 0.4 0.6
Knee displacement - left (mm) 1 1
Knee displacement - right (mm) 1 0
Maximum tibia index - left 0.21 0.27
Maximum tibia index - right 0.26 0.47
Tibia axial force - left (kN) 1.4 1.7
Tibia axial force - right (kN) 1.6 2.4
Foot acceleration (g)
Left 50 49
Right 42 54

How the moderate overlap front test is conducted

Side: original test

Rating applies to 2019-24 models

Tested vehicle: 2019 Volvo XC40 T5 Momentum 4-door 4wd

The Volvo XC40 was introduced in the 2019 model year. Side ratings are assigned by the Institute based on a test conducted by Volvo as part of side crash test verification.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1902
B-pillar to longitudinal centerline of driver's seat (cm) -20.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1902
Head HIC-15 97
Neck
Tension (kN) 1.2
Compression (kN) 0.4
Shoulder
Lateral deflection (mm) 38
Lateral force (kN) 1.4
Torso
Maximum deflection (mm) 37
Average deflection (mm) 34
Maximum deflection rate (m/s) 4.83
Maximum viscous criterion (m/s) 0.85
Pelvis
Iliac force (kN) 1.0
Acetabulum force (kN) 1.7
Combined force (kN) 2.7
Left femur
L-M force (kN) 0.8
L-M moment (Nm) 12
A-P moment (Nm) 87

Passenger injury measures

Test ID VTS1902
Head HIC-15 159
Neck
Tension (kN) 0.6
Compression (kN) -0.2
Shoulder
Lateral deflection (mm) 10
Lateral force (kN) 0.5
Torso
Maximum deflection (mm) 28
Average deflection (mm) 22
Maximum deflection rate (m/s) 2.73
Maximum viscous criterion (m/s) 0.40
Pelvis
Iliac force (kN) 0.4
Acetabulum force (kN) 1.8
Combined force (kN) 1.9
Left femur
L-M force (kN) 0.4
L-M moment (Nm) 97
A-P moment (Nm) -23

How the side crash test is conducted

Side: updated test

Rating applies to 2019-24 models

Tested vehicle: 2021 Volvo XC40 T5 Momentum 4-door 4wd

The Volvo XC40 was introduced in the 2019 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis
Rear passenger head protection

View of the vehicle just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Smeared greasepaint shows where the rear passenger dummy's head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES2006
B-pillar to longitudinal centerline of driver's seat (cm) -12.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES2006
Head
HIC-15 129
Peak gs at hard contact no contact
Neck
Tension (kN) 1.4
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 37
Lateral force (kN) 1.3
Torso
Maximum deflection (mm) 42
Average deflection (mm) 37
Maximum deflection rate (m/s) 4.03
Maximum viscous criterion (m/s) 0.84
Pelvis
Combined force (kN) 5.3

Passenger injury measures

Test ID CES2006
Head
HIC-15 387
Peak gs at hard contact no contact
Neck
Tension (kN) 1.2
Compression (kN) 0.4
Shoulder
Lateral deflection (mm) 28
Lateral force (kN) 1.3
Torso
Maximum deflection (mm) 38
Average deflection (mm) 31
Maximum deflection rate (m/s) 4.59
Maximum viscous criterion (m/s) 0.65
Pelvis
Combined force (kN) 3.1

How the side crash test is conducted

Roof strength

Rating applies to 2019-23 models

Tested vehicle: 2019 Volvo XC40 T5 Momentum 4-door 4wd

Ratings apply to the Volvo XC40 Recharge (tested) and the structurally similar 2022 C40 Recharge.

Overall evaluation
Curb weight3,811 lbs
Peak force19,949 lbs
Strength-to-weight ratio5.23

How the roof strength test is conducted

Head restraints & seats

Seat type: Power leather seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Power leather seat
Geometry
Backset (mm) 6
Distance below top of head (mm) 28
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 11.0
Head contact time (ms) 49
Force rating 1
Neck forces
Max neck shear force (N) 64
Max neck tension (N) 236

How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

  • Momentum trim equipped with Advanced package
  • R-Design trim equipped with Advanced package
  • Inscription trim equipped with Advanced package
Low-beam headlight typeLED reflector
High-beam headlight typeLED reflector
Curve-adaptive?Yes
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit Some glare

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on both right curves and fair on both left curves.

The low beams created some glare.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on the gradual left and both right curves and fair on the sharp left curve.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and on both left curves.

Technical measurements for this test
Trim level(s)
  • Momentum trim equipped with Advanced package
  • R-Design trim equipped with Advanced package
  • Inscription trim equipped with Advanced package
Low-beam headlight type LED reflector
High-beam headlight type LED reflector
Curve-adaptive? Yes
High-beam assist? Yes
Overall rating
Applies to 2019-22 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 98.1 m 12.6%
Straightaway left edge 63.7 m 12.6%
250m radius right curve, right edge 74.4 m None
250m radius left curve, left edge 58.5 m None
150m radius right curve, right edge 68.2 m None
150m radius left curve, left edge 52.4 m 0.5%
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 169.2 m
Straightaway left edge 151.1 m
250m radius right curve, right edge 92.2 m
250m radius left curve, left edge 81.1 m
150m radius right curve, right edge 72.0 m
150m radius left curve, left edge 64.9 m

Trim level(s)

  • Momentum trim
  • R-Design trim
  • Inscription trim
Low-beam headlight typeLED reflector
High-beam headlight typeLED reflector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit Excessive glare

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on both right curves and fair on both left curves.

The low beams created excessive glare.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on the gradual left and both right curves and fair on the sharp left curve.

High-beam assist compensates for some limitations of this vehicle's low beams on both left curves.

Technical measurements for this test
Trim level(s)
  • Momentum trim
  • R-Design trim
  • Inscription trim
Low-beam headlight type LED reflector
High-beam headlight type LED reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2019-20 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 105.5 m 143.0%
Straightaway left edge 65.0 m 143.0%
250m radius right curve, right edge 75.1 m 11.4%
250m radius left curve, left edge 58.8 m 32.4%
150m radius right curve, right edge 65.5 m 18.0%
150m radius left curve, left edge 54.5 m 39.2%
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 154.5 m
Straightaway left edge 132.2 m
250m radius right curve, right edge 86.8 m
250m radius left curve, left edge 76.2 m
150m radius right curve, right edge 69.3 m
150m radius left curve, left edge 61.6 m

How headlights are evaluated

Front crash prevention: vehicle-to-vehicle

System details

  • Standard Collision Warning with Full Auto Brake

Overall evaluation

Applies to 2019-22 models

Superior
Superior
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

How front crash prevention is evaluated

Front crash prevention: pedestrian (day)

System details

  • standard Collision Warning with Full Auto Brake

Overall evaluation

This rating applies to all 2019-22 models

Superior
Superior

Crossing child

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 23 mph.

Crossing adult

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

Parallel adult

  • In the 25 mph test, this vehicle avoided a collision.
  • In the 37 mph test, impact speed was reduced by 35 mph. A warning was issued 2 seconds before impact.

Child seat anchors

Rating applies to 2019-24 models

Overall evaluation
Vehicle trimT5 Momentum
Seat type leather

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Overall evaluation
Vehicle trimT5 Momentum
Seat type leather
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
difficult to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
difficult to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 14
Clearance angle (degrees) 27
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 4
Clearance angle (degrees) 21
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Middle seatback
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 13
Clearance angle (degrees) 21
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 6
Clearance angle (degrees) 21
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

How child seat anchors are evaluated
