2000 Volvo S80

large luxury car / 4-door sedan

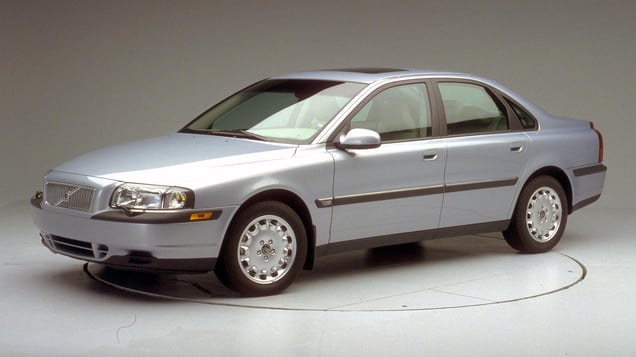

2000 Volvo S80 4-door sedan


Rating overview
Moderate overlap front: original test


  • G
  • A
  • M
  • P
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Moderate overlap front: original test

Rating applies to 2000 models

Tested vehicle: 2000 Volvo S80 4-door

The Volvo S80 was introduced in the 1999 model year and modified beginning with 2000 models to include structural changes to improve occupant protection in frontal crashes.

Overall evaluation
Structure and safety cage
Driver injury measures
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Dummy movement was well controlled. After the dummy moved forward into the airbag, it rebounded into the seat and then its head hit the B-pillar. However, hot gases escaping through vent holes in the driver airbag caused some melting of the vinyl "skin" on the dummy's hands, indicating the possibility of burn injuries. Also, in a separate 5 mph frontal impact without dummies in the car, both frontal airbags deployed. Such deployments not only are unnecessary in low-speed crashes but also may cause severe injuries to front-seat occupants positioned too close to the airbags.

Action shot taken during the frontal offset crash test.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.

Black residue on the dummy's hands indicates where there was contact with hot gases vented from the airbag. Additional testing showed these gases were hot enough to cause burns to drivers' hands.

Both frontal airbags deployed unexpectedly during a 5 mph frontal impact into a full-width barrier.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CF00007
Footwell intrusion
Footrest (cm) 10
Left (cm) 14
Center (cm) 17
Right (cm) 15
Brake pedal (cm) 10
Instrument panel rearward movement
Left (cm) 4
Right (cm) 2
Steering column movement
Upward (cm) 3
Rearward (cm) 2
A-pillar rearward movement (cm) 3

Driver injury measures

Test ID CF00007
HIC-15 188
Peak gs at hard contact 26
Tension (kN) 1.3
Extension bending moment (Nm) 38
Maximum Nij 0.33
Chest maximum compression (mm) 33
Femur force - left (kN) 2.2
Femur force - right (kN) 3.7
Knee displacement - left (mm) 0
Knee displacement - right (mm) 0
Maximum tibia index - left 0.44
Maximum tibia index - right 0.70
Tibia axial force - left (kN) 0.9
Tibia axial force - right (kN) 3.2
Foot acceleration (g)
Left 54
Right 95

How the moderate overlap front test is conducted
