2019 Toyota Tundra

large pickup / Extended cab pickup

2019 Toyota Tundra Extended cab pickup

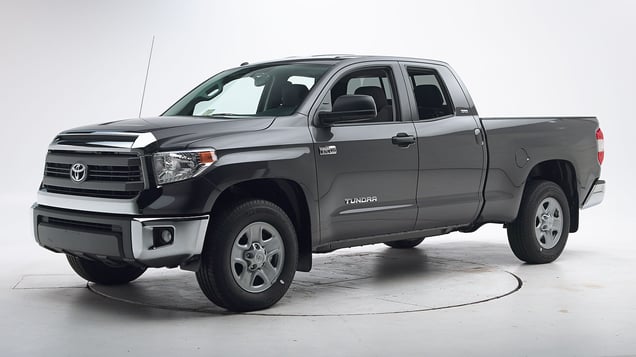

2015 Toyota Tundra shown

Crashworthiness

Rating overview
Small overlap front: driver-side
Moderate overlap front
Side
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights (varies by trim/option)
Front crash prevention
Standard system
Superior

Child seat anchors

LATCH ease of use

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2014-19 models

Tested vehicle: 2015 Toyota Tundra SR5 Double Cab 2wd
The Toyota Tundra Double Cab was redesigned for the 2007 model year. Beginning with 2010 models, the driver and passenger frontal airbags and front seat belts were modified and knee airbags for the driver and front passenger were added. Beginning with 2014 models, the side curtain airbags were lengthened and reprogrammed to deploy in small overlap and moderate overlap frontal crashes to improve occupant protection.

Overall evaluation
Structure and safety cage
Injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Restraints and dummy kinematics

Intrusion of the footrest and toepan contributed to a high risk of injury to the left lower leg, a significant risk to the right lower leg, and a moderate risk to the left foot.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well.

Action shot taken during the driver-side small overlap frontal crash test.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

Moderate overlap front

Rating applies to 2014-19 models

Tested vehicle: 2014 Toyota Tundra SR5 Double Cab 2wd

The Toyota Tundra Double Cab was redesigned for the 2007 model year. Beginning with 2010 models, the driver and passenger frontal airbags and front seat belts were modified and knee airbags for the driver and front passenger were added. Beginning with 2014 models, the side curtain airbags were lengthened and reprogrammed to deploy in small overlap and moderate overlap frontal crashes to improve occupant protection.

Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Toyota as part of frontal crash test verification. Because there were no structural changes, the structure rating of the current model is based on Toyota's test of a 2014 model and three earlier tests of 2007 and 2010 Tundra models.

Overall evaluation
Structure and safety cage
Injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Restraints and dummy kinematics

Side

Rating applies to 2014-19 models

Tested vehicle: 2014 Toyota Tundra SR5 Double Cab 2wd with standard front and rear head curtain airbags and standard front seat-mounted torso airbags

The Toyota Tundra Double Cab was redesigned for the 2007 model year. Beginning with 2014 models, the side curtain and side torso airbags as well as the front seat structure were modified to improve occupant protection in side impact crashes.

Two tests of the Tundra were conducted, one of a 2007 model by the Institute and the other a 2014 model by Toyota as part of side crash test verification. These vehicles are rated separately, except that the structure ratings for both vehicles are based on both tests.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Head protection

Roof strength

Rating applies to 2007-19 models

Tested vehicle: 2011 Toyota Tundra Double Cab 2wd

Toyota confirmed there is no 2011 Tundra Double Cab that is heavy enough to drop to an Acceptable rating, in agreement with Toyota's website.

Overall evaluation
Curb weight 5,142 lbs
Peak force 23,069 lbs
Strength-to-weight ratio 4.49

Head restraints & seats

Rating applies to 2014-19 models

Seat type: Power cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry

Front crash prevention

System details

  • Standard Pre-Collision System with Pedestrian Detection

Package name

  • Standard Toyota Safety Sense P

Applies to 2018-19 models

Overall evaluation

  • This system meets the requirements for forward collision warning.
  • In the 12 mph IIHS test, this vehicle avoided a collision.
  • In the 25 mph IIHS test, this vehicle avoided a collision.
Superior
Superior

How front crash prevention is evaluated

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

  • SR trim
  • SR5 trim
Low-beam headlight type Halogen reflector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating

Low beams
On the straightaway, visibility was fair on the left side of the road and inadequate on the right side. On curves, visibility was inadequate in all 4 tests.

The low beams created some glare.

High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

Trim level(s)

  • SR5 trim equipped with TRD Sport package
  • SR5 trim equipped with TRD Off-road package
  • Limited trim
Low-beam headlight type LED reflector
High-beam headlight type LED reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating

Low beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was inadequate in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

How headlights are evaluated

Child seat anchors

Applies to 2016-19 models built after February 2016

Overall evaluation
Vehicle trim SR5 Double Cab
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

1 2 3
G Good
A Acceptable
M Marginal
P Poor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
hard-to-find location
other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
hard-to-find location
other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors

How child seat anchors are evaluated
