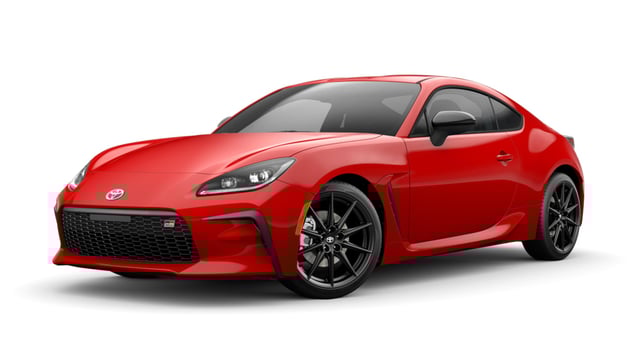

2026 Toyota GR86
small car / 2-door hatchback
Headlights
Ratings are given for 4 different headlight variations available on this vehicle.
(1) Trim level(s): Premium trim equipped with Automatic Transmission package, Special Edition trim
| Evaluation criteria | Rating |
|---|---|
| Low-beam headlight type | LED projector |
| High-beam headlight type | LED projector |
| Curve-adaptive? | Yes |
| High-beam assist? | Yes |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good in all 4 tests.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good in all 4 tests.
High-beam assist compensates for some limitations of this vehicle's low beams on the gradual left curve.
Technical measurements for this test
| Evaluation criteria | Measurement |
|---|---|
| Trim level(s) |
|
| Low-beam headlight type | LED projector |
| High-beam headlight type | LED projector |
| Curve-adaptive? | Yes |
| High-beam assist? | Yes |
|
Overall rating Applies to 2022-26 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 146.2 m | None |
| Straightaway left edge | 74.1 m | None |
| 250m radius right curve, right edge | 74.8 m | None |
| 250m radius left curve, left edge | 69.1 m | None |
| 150m radius right curve, right edge | 63.7 m | None |
| 150m radius left curve, left edge | 61.8 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 152.5 m |
| Straightaway left edge | 137.8 m |
| 250m radius right curve, right edge | 78.9 m |
| 250m radius left curve, left edge | 76.6 m |
| 150m radius right curve, right edge | 66.1 m |
| 150m radius left curve, left edge | 65.4 m |
(2) Trim level(s): Premium trim equipped with Manual Transmission package
| Evaluation criteria | Rating |
|---|---|
| Low-beam headlight type | LED projector |
| High-beam headlight type | LED projector |
| Curve-adaptive? | Yes |
| High-beam assist? | No |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good in all 4 tests.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good in all 4 tests.
Technical measurements for this test
| Evaluation criteria | Measurement |
|---|---|
| Trim level(s) |
|
| Low-beam headlight type | LED projector |
| High-beam headlight type | LED projector |
| Curve-adaptive? | Yes |
| High-beam assist? | No |
|
Overall rating Applies to 2022-26 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 146.2 m | None |
| Straightaway left edge | 74.1 m | None |
| 250m radius right curve, right edge | 74.8 m | None |
| 250m radius left curve, left edge | 69.1 m | None |
| 150m radius right curve, right edge | 63.7 m | None |
| 150m radius left curve, left edge | 61.8 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 152.5 m |
| Straightaway left edge | 137.8 m |
| 250m radius right curve, right edge | 78.9 m |
| 250m radius left curve, left edge | 76.6 m |
| 150m radius right curve, right edge | 66.1 m |
| 150m radius left curve, left edge | 65.4 m |
(3) Trim level(s): Base trim equipped with Automatic Transmission package
| Evaluation criteria | Rating |
|---|---|
| Low-beam headlight type | LED projector |
| High-beam headlight type | LED projector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on the gradual right curve and fair on the sharp right and both left curves.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was fair on the gradual right curve and inadequate on the sharp right and both left curves.
High-beam assist compensates for some limitations of this vehicle's low beams on the gradual left curve and on the gradual right curve.
Technical measurements for this test
| Evaluation criteria | Measurement |
|---|---|
| Trim level(s) |
|
| Low-beam headlight type | LED projector |
| High-beam headlight type | LED projector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating Applies to 2022-26 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 143.9 m | None |
| Straightaway left edge | 76.6 m | None |
| 250m radius right curve, right edge | 67.1 m | None |
| 250m radius left curve, left edge | 60.4 m | None |
| 150m radius right curve, right edge | 51.6 m | None |
| 150m radius left curve, left edge | 49.3 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 151.6 m |
| Straightaway left edge | 138.9 m |
| 250m radius right curve, right edge | 68.2 m |
| 250m radius left curve, left edge | 63.8 m |
| 150m radius right curve, right edge | 51.1 m |
| 150m radius left curve, left edge | 49.1 m |
(4) Trim level(s): Base trim equipped with Manual Transmission package
| Evaluation criteria | Rating |
|---|---|
| Low-beam headlight type | LED projector |
| High-beam headlight type | LED projector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on the gradual right curve and fair on the sharp right and both left curves.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was fair on the gradual right curve and inadequate on the sharp right and both left curves.
Technical measurements for this test
| Evaluation criteria | Measurement |
|---|---|
| Trim level(s) |
|
| Low-beam headlight type | LED projector |
| High-beam headlight type | LED projector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating Applies to 2022-26 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 143.9 m | None |
| Straightaway left edge | 76.6 m | None |
| 250m radius right curve, right edge | 67.1 m | None |
| 250m radius left curve, left edge | 60.4 m | None |
| 150m radius right curve, right edge | 51.6 m | None |
| 150m radius left curve, left edge | 49.3 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 151.6 m |
| Straightaway left edge | 138.9 m |
| 250m radius right curve, right edge | 68.2 m |
| 250m radius left curve, left edge | 63.8 m |
| 150m radius right curve, right edge | 51.1 m |
| 150m radius left curve, left edge | 49.1 m |
