Moderate overlap front: original test
Rating applies to 2003-11 models
Tested vehicle: 2003 Saab 9-3 Linear 4-door
The Saab 9-3 was redesigned for the 2003 model year.
The frontal offset crash test ratings also apply to the station wagon version of the 9-3, known as the SportCombi, beginning with its introduction in the 2006 model year.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.
Dummy movement was well controlled. During rebound, the dummy's head hit only the deployed side curtain airbag, its fabric cover, and the head restraint.<strong> </strong>.
There was little change in the position of the dummy's feet following the crash test. Injury risk was low.
Measures of occupant compartment intrusion on driver side
Test ID | CEF0306 |
---|---|
Footwell intrusion | |
Footrest (cm) | 6 |
Left (cm) | 8 |
Center (cm) | 14 |
Right (cm) | 13 |
Brake pedal (cm) | 8 |
Instrument panel rearward movement | |
Left (cm) | 3 |
Right (cm) | 1 |
Steering column movement | |
Upward (cm) | -1 |
Rearward (cm) | -5 |
A-pillar rearward movement (cm) | 2 |
Driver injury measures
Test ID | CEF0306 |
---|---|
Head | |
HIC-15 | 164 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.1 |
Extension bending moment (Nm) | 8 |
Maximum Nij | 0.20 |
Chest maximum compression (mm) | 37 |
Legs | |
Femur force - left (kN) | 2.0 |
Femur force - right (kN) | 5.0 |
Knee displacement - left (mm) | 2 |
Knee displacement - right (mm) | 0 |
Maximum tibia index - left | 0.29 |
Maximum tibia index - right | 0.38 |
Tibia axial force - left (kN) | 1.3 |
Tibia axial force - right (kN) | 1.6 |
Foot acceleration (g) | |
Left | 62 |
Right | 65 |
Side: original test
Rating applies to 2004-11 models built after December 2003
Tested vehicle: 2004 Saab 9-3 Linear 4-door with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
The Saab 9-3 was redesigned for the 2003 model year. Modifications were made to the side torso airbags for 2004 and later models built after December 2003 to improve occupant protection in side-impact crashes.
The side impact crash test ratings also apply to the station wagon version of the 9-3, known as the SportCombi, beginning with its introduction in the 2006 model year.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Action shot taken during the side impact crash test showing the driver dummy's head was protected from being hit by hard structures by the side airbags.
Smeared greasepaint shows where the rear passenger dummy's head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
Test ID | CES0412 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -11.0 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | CES0412 |
---|---|
Head HIC-15 | 205 |
Neck | |
Tension (kN) | 1.0 |
Compression (kN) | 0.6 |
Shoulder | |
Lateral deflection (mm) | 41 |
Lateral force (kN) | 1.7 |
Torso | |
Maximum deflection (mm) | 45 |
Average deflection (mm) | 33 |
Maximum deflection rate (m/s) | 5.16 |
Maximum viscous criterion (m/s) | 0.95 |
Pelvis | |
Iliac force (kN) | 1.9 |
Acetabulum force (kN) | 2.9 |
Combined force (kN) | 4.5 |
Left femur | |
L-M force (kN) | 1.0 |
L-M moment (Nm) | 91 |
A-P moment (Nm) | 27 |
Passenger injury measures
Test ID | CES0412 |
---|---|
Head HIC-15 | 204 |
Neck | |
Tension (kN) | 0.1 |
Compression (kN) | 0.4 |
Shoulder | |
Lateral deflection (mm) | 40 |
Lateral force (kN) | 1.8 |
Torso | |
Maximum deflection (mm) | 36 |
Average deflection (mm) | 29 |
Maximum deflection rate (m/s) | 3.22 |
Maximum viscous criterion (m/s) | 0.35 |
Pelvis | |
Iliac force (kN) | 0.1 |
Acetabulum force (kN) | 1.4 |
Combined force (kN) | 1.4 |
Left femur | |
L-M force (kN) | 1.7 |
L-M moment (Nm) | 180 |
A-P moment (Nm) | 18 |
Roof strength
Rating applies to 2003-11 models

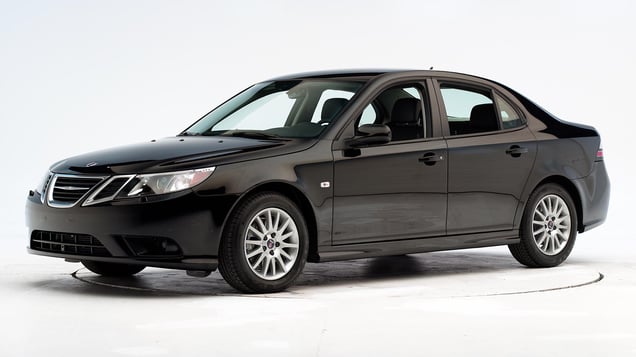

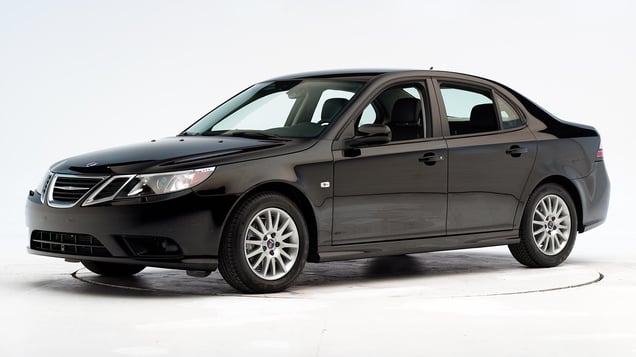

Tested vehicle: 2011 Saab 9-3 Sport Sedan 4-door
Overall evaluation | |
---|---|
Curb weight | 3,344 lbs |
Peak force | 11,482 lbs |
Strength-to-weight ratio | 3.43 |
Head restraints & seats
Seat type: All seats AHR
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | All seats AHR |
---|---|
Geometry | |
Backset (mm) | 30 |
Distance below top of head (mm) | 60 |
Seat design parameters | |
Pass/fail | Pass |
Max T1 acceleration (g) | 16.2 |
Head contact time (ms) | 64 |
Force rating | 1 |
Neck forces | |
Max neck shear force (N) | 11 |
Max neck tension (N) | 287 |
How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.
