2017 Nissan Titan

large pickup / Crew cab pickup

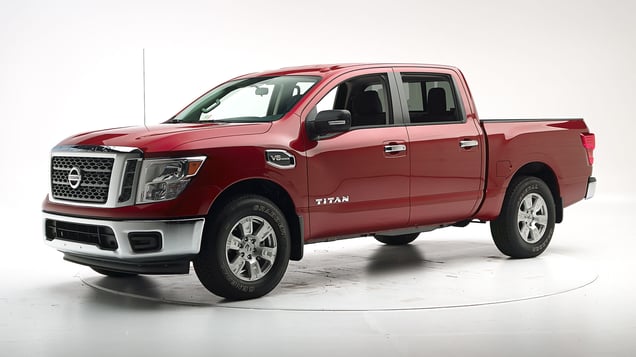

2017 Nissan Titan Crew cab pickup

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights
Front crash prevention: vehicle-to-vehicle
Not available

Seat belts & child restraints

LATCH ease of use

Other available safety features

  • Optional blind spot detection

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2017-19 models built after August 2017

Tested vehicle: 2017 Nissan Titan SV Crew Cab

The Nissan Titan Crew Cab (light duty pickup with gasoline engine) was redesigned for the 2017 model year after a one-year absence from the market. Beginning with 2017 models built after August 2017, the front-end structure was modified to improve occupant protection in small overlap crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test of the 2017 Nissan Titan built after August 2017.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

Forces on the left lower leg were high enough to indicate moderate risk of injury.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1724
Lower occupant compartment
Lower hinge pillar max (cm) 17
Footrest (cm) 14
Left toepan (cm) 7
Brake pedal (cm) 9
Parking brake (cm) 15
Rocker panel lateral average (cm) 5
Upper occupant compartment
Steering column 3
Upper hinge pillar max (cm) 7
Upper dash (cm) 7
Lower instrument panel (cm) 7

Driver injury measures

Test ID CEN1724
Head
HIC-15 104
Peak gs at hard contact no contact
Neck
Tension (kN) 1.1
Extension bending moment (Nm) 13
Maximum Nij 0.38
Chest maximum compression (mm) 24
Femur (kN)
Left 0.6
Right 0.8
Knee displacement (mm)
Left 1
Right 2
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.00
Right 0.48
Tibia axial force (kN)
Left 0.0
Right 0.6
Foot acceleration (g)
Left 72
Right 40

Rating applies to 2017 models built before September 2017

Tested vehicle: 2017 Nissan Titan SV Crew Cab

The Nissan Titan Crew Cab (light duty pickup with gasoline engine) was redesigned for the 2017 model year after a one-year absence from the market.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test of the 2017 Nissan Titan built before September 2017.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was not maintained well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

Intrusion of the door hinge pillar, instrument panel (see inset), and parking brake pedal contributed to a likely risk of injury to the left lower leg, a significant risk to the right lower leg, and a moderate risk to the left foot.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1636
Lower occupant compartment
Lower hinge pillar max (cm) 27
Footrest (cm) 19
Left toepan (cm) 12
Brake pedal (cm) 20
Parking brake (cm) 21
Rocker panel lateral average (cm) 4
Upper occupant compartment
Steering column 9
Upper hinge pillar max (cm) 19
Upper dash (cm) 17
Lower instrument panel (cm) 16

Driver injury measures

Test ID CEN1636
Head
HIC-15 40
Peak gs at hard contact no contact
Neck
Tension (kN) 0.8
Extension bending moment (Nm) 8
Maximum Nij 0.18
Chest maximum compression (mm) 26
Femur (kN)
Left 3.5
Right 2.2
Knee displacement (mm)
Left 6
Right 8
Knee-thigh-hip injury risk (%)
Left 1
Right 0
Maximum tibia index
Left 2.13
Right 1.08
Tibia axial force (kN)
Left 5.9
Right 0.6
Foot acceleration (g)
Left 172
Right 102

How the driver-side small overlap front test is conducted

Small overlap front: passenger-side

Rating applies to 2017-19 models built after August 2017

Tested vehicle: 2018 Nissan Titan SV Crew Cab

The Nissan Titan (light duty pickup with gasoline engine) was redesigned for the 2017 model year after a one-year absence from the market. Beginning with 2017 models built after August 2017, the front-end structure was modified to improve occupant protection in small overlap crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the passenger-side small overlap frontal crash test.

The dummy's position in relation to the door frame and dashboard after the crash test indicates that the passenger’s survival space was maintained reasonably well.

The frontal and side curtain airbags worked well together to keep the passenger dummy’s head from coming close to any stiff structure or outside objects that could cause injury.

Despite intrusion of the footwell and dashboard, risk of injuries to the dummy's legs and feet was low.

Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID CEP1821
Lower occupant compartment
Lower hinge pillar max (cm) 17
Footrest (cm) 28
Right toepan (cm) 23
Center toepan (cm) 16
Rocker panel lateral average (cm) 3
Upper occupant compartment
Center dash (cm) 7
Upper hinge pillar max (cm) 10
Upper dash (cm) 9
Right lower dash (cm) 9

Passenger injury measures

Test ID CEP1821
Head
HIC-15 278
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 12
Maximum Nij 0.15
Chest maximum compression (mm) 16
Femur (kN)
Left 2.8
Right 5.2
Knee displacement (mm)
Left 7
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 5
Maximum tibia index
Left 0.70
Right 0.53
Tibia axial force (kN)
Left 2.4
Right 1.5
Foot acceleration (g)
Left 65
Right 51

Driver injury measures

Test ID CEP1821
Head
HIC-15 70
Peak gs at hard contact no contact
Neck
Tension (kN) 0.8
Extension bending moment (Nm) 18
Maximum Nij 0.19
Chest maximum compression (mm) 32
Femur (kN)
Left 0.5
Right 0.1
Knee displacement (mm)
Left 5
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.48
Right 0.25
Tibia axial force (kN)
Left 0.4
Right 0.4
Foot acceleration (g)
Left 28
Right 75

How the passenger-side small overlap front test is conducted

Moderate overlap front: original test

Rating applies to 2017-19 models

Tested vehicle: 2017 Nissan Titan S Crew Cab

The Nissan Titan Crew Cab (light duty pickup with gasoline engine) was redesigned for the 2017 model year after a one-year absence from the market. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Nissan as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1622
Footwell intrusion
Footrest (cm) 4
Left (cm) 3
Center (cm) 3
Right (cm) 3
Brake pedal (cm) 3
Instrument panel rearward movement
Left (cm) 1
Right (cm) 0
Steering column movement
Upward (cm) 3
Rearward (cm) 1
A-pillar rearward movement (cm) 1

Driver injury measures

Test ID VTF1622
Head
HIC-15 222
Peak gs at hard contact no contact
Neck
Tension (kN) 1.2
Extension bending moment (Nm) 28
Maximum Nij 0.25
Chest maximum compression (mm) 29
Legs
Femur force - left (kN) 1.0
Femur force - right (kN) 0.1
Knee displacement - left (mm) 10
Knee displacement - right (mm) 0
Maximum tibia index - left 0.70
Maximum tibia index - right 0.37
Tibia axial force - left (kN) 1.7
Tibia axial force - right (kN) 1.2
Foot acceleration (g)
Left 44
Right 93

How the moderate overlap front test is conducted

Side: original test

Rating applies to 2017-19 models

Tested vehicle: 2017 Nissan Titan SV Crew Cab

The Nissan Titan Crew Cab (light duty pickup with gasoline engine) was redesigned for the 2017 model year after a one-year absence from the market.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

View of the vehicle just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES1615
B-pillar to longitudinal centerline of driver's seat (cm) -12.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES1615
Head HIC-15 147
Neck
Tension (kN) 1.4
Compression (kN) 1.2
Shoulder
Lateral deflection (mm) 49
Lateral force (kN) 1.8
Torso
Maximum deflection (mm) 40
Average deflection (mm) 36
Maximum deflection rate (m/s) 4.25
Maximum viscous criterion (m/s) 0.73
Pelvis
Iliac force (kN) 1.5
Acetabulum force (kN) 1.6
Combined force (kN) 3.0
Left femur
L-M force (kN) 0.6
L-M moment (Nm) 85
A-P moment (Nm) 12

Passenger injury measures

Test ID CES1615
Head HIC-15 53
Neck
Tension (kN) 0.2
Compression (kN) 0.3
Shoulder
Lateral deflection (mm) 21
Lateral force (kN) 1.0
Torso
Maximum deflection (mm) 41
Average deflection (mm) 31
Maximum deflection rate (m/s) 3.60
Maximum viscous criterion (m/s) 0.66
Pelvis
Iliac force (kN) 0.0
Acetabulum force (kN) 1.6
Combined force (kN) 1.6
Left femur
L-M force (kN) 0.8
L-M moment (Nm) 38
A-P moment (Nm) -34

How the side crash test is conducted

Roof strength

Rating applies to 2017-23 models

Tested vehicle: 2017 Nissan Titan SV Crew Cab

Overall evaluation
Curb weight5,460 lbs
Peak force24,857 lbs
Strength-to-weight ratio4.55

How the roof strength test is conducted

Head restraints & seats

Seat type: Manual cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Manual cloth seat
Geometry
Backset (mm) 30
Distance below top of head (mm) 18
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 14.4
Head contact time (ms) 52
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 379

How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

  • S trim
  • SV trim
Low-beam headlight typeHalogen reflector
High-beam headlight typeHalogen reflector
Curve-adaptive?No
High-beam assist?No
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination

Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.

Technical measurements for this test
Trim level(s)
  • S trim
  • SV trim
Low-beam headlight type Halogen reflector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? No
Overall rating
Applies to 2017-19 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 80.9 m None
Straightaway left edge 50.8 m None
250m radius right curve, right edge 48.4 m None
250m radius left curve, left edge 47.4 m None
150m radius right curve, right edge 44.5 m None
150m radius left curve, left edge 44.3 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 146.6 m
Straightaway left edge 121.4 m
250m radius right curve, right edge 61.5 m
250m radius left curve, left edge 63.4 m
150m radius right curve, right edge 49.3 m
150m radius left curve, left edge 51.8 m

Trim level(s)

  • Pro 4X trim
  • SL trim
  • Platinum trim
Low-beam headlight typeLED projector
High-beam headlight typeHalogen reflector
Curve-adaptive?No
High-beam assist?No
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination Some glare

Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was fair on the sharp right curve and inadequate on the gradual right and both left curves.

The low beams created some glare.

High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was fair on the gradual right curve and inadequate on the sharp right and both left curves.

Technical measurements for this test
Trim level(s)
  • Pro 4X trim
  • SL trim
  • Platinum trim
Low-beam headlight type LED projector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? No
Overall rating
Applies to 2017-19 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 81.4 m None
Straightaway left edge 51.5 m None
250m radius right curve, right edge 52.7 m None
250m radius left curve, left edge 47.0 m None
150m radius right curve, right edge 46.3 m 23.4%
150m radius left curve, left edge 43.5 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 152.4 m
Straightaway left edge 100.5 m
250m radius right curve, right edge 68.6 m
250m radius left curve, left edge 62.7 m
150m radius right curve, right edge 52.1 m
150m radius left curve, left edge 49.1 m

How headlights are evaluated

Child seat anchors

Rating applies to 2017-19 models

Overall evaluation
Vehicle trimSV
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Overall evaluation
Vehicle trimSV
Seat type cloth
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) could not measure
Clearance angle (degrees) 74
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) could not measure
Clearance angle (degrees) 79
Tether anchor
Location Back wall
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Back wall
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) could not measure
Clearance angle (degrees) 73
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) could not measure
Clearance angle (degrees) 70
Tether anchor
Location Back wall
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

How child seat anchors are evaluated
