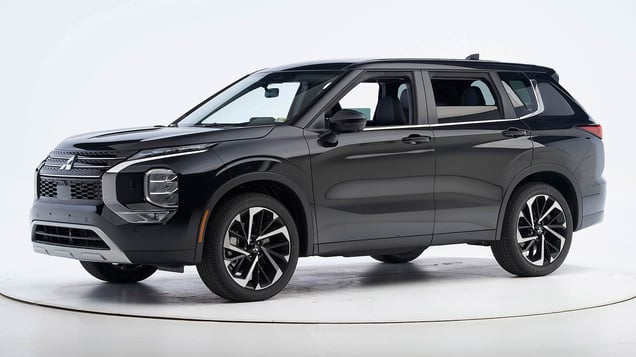

2022 Mitsubishi Outlander

small SUV / 4-door SUV

Award applies only to vehicles built after June 2021

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Front crash prevention: vehicle-to-vehicle
Headlights (varies by trim/option)
Standard system	Superior
Front crash prevention: pedestrian (day)
Standard system	Superior

Seat belts & child restraints

LATCH ease of use

Other available safety features

Standard blind spot detection
Standard lane departure warning
Standard daytime running lights
Optional lane departure prevention

Key

G
Good
A
Acceptable
M
Marginal
P
Poor

Superior
Advanced
Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2022-24 models

Tested vehicle: 2022 Mitsubishi Outlander SE 4-door 4wd

The Mitsubishi Outlander was redesigned for the 2022 model year after a one-year absence from the market. Driver-side small overlap frontal ratings are assigned by the Institute based on a test of a 2022 model Outlander conducted by Mitsubishi as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID	VTN2002
Lower occupant compartment
Lower hinge pillar max (cm)	10
Footrest (cm)	7
Left toepan (cm)	7
Brake pedal (cm)	5
Parking brake (cm)
Rocker panel lateral average (cm)	2
Upper occupant compartment
Steering column	3
Upper hinge pillar max (cm)	12
Upper dash (cm)	11
Lower instrument panel (cm)	10

Driver injury measures

Test ID	VTN2002
Head
HIC-15	101
Peak gs at hard contact	no contact
Neck
Tension (kN)	1.2
Extension bending moment (Nm)	7
Maximum Nij	0.18
Chest maximum compression (mm)	18
Femur (kN)
Left	1.5
Right	0.9
Knee displacement (mm)
Left	2
Right	1
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.60
Right	0.41
Tibia axial force (kN)
Left	2.0
Right	1.1
Foot acceleration (g)
Left	98
Right	34

How the driver-side small overlap front test is conducted

Small overlap front: passenger-side

Rating applies to 2022-24 models

Tested vehicle: 2022 Mitsubishi Outlander SE 4-door 4wd

The Mitsubishi Outlander was redesigned for the 2022 model year after a one-year absence from the market. Beginning with 2023 models, changes were made to the passenger-side frontal airbag and seat belt pretensioner to improve occupant protection in small overlap front crashes. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test of a 2023 model Outlander conducted by Mitsubishi as part of frontal crash test verification. Because there were no changes to the structure or driver restraints, the structure rating and driver data is based on this test and an earlier test of a 2022 model Outlander conducted by Mitsubishi.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID	VTP2007	VTP2217
Lower occupant compartment
Lower hinge pillar max (cm)	4	6
Footrest (cm)	3	6
Right toepan (cm)	1	2
Center toepan (cm)	1	2
Rocker panel lateral average (cm)	0	1
Upper occupant compartment
Center dash (cm)	3	4
Upper hinge pillar max (cm)	6	7
Upper dash (cm)	5	6
Right lower dash (cm)	4	6

Passenger injury measures

Test ID	VTP2217
Head
HIC-15	73
Peak gs at hard contact	no contact
Neck
Tension (kN)	1.1
Extension bending moment (Nm)	11
Maximum Nij	0.22
Chest maximum compression (mm)	20
Femur (kN)
Left	1.0
Right	4.5
Knee displacement (mm)
Left	2
Right	2
Knee-thigh-hip injury risk (%)
Left	0
Right	2
Maximum tibia index
Left	0.32
Right	0.29
Tibia axial force (kN)
Left	1.3
Right	1.8
Foot acceleration (g)
Left	59
Right	51

Driver injury measures

Test ID	VTP2007	VTP2217
Head
HIC-15	51	70
Peak gs at hard contact	no contact	no contact
Neck
Tension (kN)	0.7	0.8
Extension bending moment (Nm)	9	10
Maximum Nij	0.15	0.17
Chest maximum compression (mm)	22	19
Femur (kN)
Left	0.1	0.6
Right	0.2	0.2
Knee displacement (mm)
Left	0	0
Right	0	0
Knee-thigh-hip injury risk (%)
Left	0	0
Right	0	0
Maximum tibia index
Left	0.25	0.47
Right	0.18	0.18
Tibia axial force (kN)
Left	0.9	0.5
Right	0.3	0.3
Foot acceleration (g)
Left	31	30
Right	57	43

How the passenger-side small overlap front test is conducted

Moderate overlap front: original test

Rating applies to 2022-24 models

Tested vehicle: 2022 Mitsubishi Outlander SE 4-door 4wd

The Mitsubishi Outlander was redesigned for the 2022 model year after a one-year absence from the market. Moderate overlap frontal ratings are assigned by the Institute based on a test of a 2022 model Outlander conducted by Mitsubishi as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID	VTF2001
Footwell intrusion
Footrest (cm)	4
Left (cm)	7
Center (cm)	10
Right (cm)	8
Brake pedal (cm)	11
Instrument panel rearward movement
Left (cm)	1
Right (cm)	0
Steering column movement
Upward (cm)	2
Rearward (cm)	-4
A-pillar rearward movement (cm)	0

Driver injury measures

Test ID	VTF2001
Head
HIC-15	135
Peak gs at hard contact	no contact
Neck
Tension (kN)	1.3
Extension bending moment (Nm)	17
Maximum Nij	0.26
Chest maximum compression (mm)	25
Legs
Femur force - left (kN)	0.6
Femur force - right (kN)	1.1
Knee displacement - left (mm)	0
Knee displacement - right (mm)	1
Maximum tibia index - left	0.35
Maximum tibia index - right	0.41
Tibia axial force - left (kN)	2.2
Tibia axial force - right (kN)	2.1
Foot acceleration (g)
Left	46
Right	65

How the moderate overlap front test is conducted

Side: original test

Rating applies to 2022-23 models

Tested vehicle: 2022 Mitsubishi Outlander SE 4-door 4wd

The Mitsubishi Outlander was redesigned for the 2022 model year after a one-year absence from the market. Side ratings are assigned by the Institute based on a test of a 2022 Mitsubishi Outlander conducted by Mitsubishi as part of side crash test verification.

Driver injury measures
Overall evaluation
Structure and safety cage
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID	VTS2011
B-pillar to longitudinal centerline of driver's seat (cm)	-21.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID	VTS2011
Head HIC-15	148
Neck
Tension (kN)	0.6
Compression (kN)	0.3
Shoulder
Lateral deflection (mm)	25
Lateral force (kN)	1.3
Torso
Maximum deflection (mm)	26
Average deflection (mm)	23
Maximum deflection rate (m/s)	2.94
Maximum viscous criterion (m/s)	0.32
Pelvis
Iliac force (kN)	0.8
Acetabulum force (kN)	1.8
Combined force (kN)	2.6
Left femur
L-M force (kN)	0.8
L-M moment (Nm)	108
A-P moment (Nm)	-20

Passenger injury measures

Test ID	VTS2011
Head HIC-15	112
Neck
Tension (kN)	0.2
Compression (kN)	0.4
Shoulder
Lateral deflection (mm)	7
Lateral force (kN)	0.6
Torso
Maximum deflection (mm)	27
Average deflection (mm)	22
Maximum deflection rate (m/s)	1.33
Maximum viscous criterion (m/s)	0.16
Pelvis
Iliac force (kN)	0.6
Acetabulum force (kN)	1.1
Combined force (kN)	1.6
Left femur
L-M force (kN)	0.3
L-M moment (Nm)	50
A-P moment (Nm)	-16

How the side crash test is conducted

Roof strength

Rating applies to 2022-23 models

Tested vehicle: 2022 Mitsubishi Outlander 2.5 SE 4-door 4wd

Overall evaluation
Curb weight	3,780 lbs
Peak force	22,066 lbs
Strength-to-weight ratio	5.84

How the roof strength test is conducted

Head restraints & seats

Seat type: Power leatherette seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry

Technical measurements for this test

Geometry
Seat type	Power leatherette seat
Backset (mm)	20
Distance below top of head (mm)	10
Seat design parameters
Pass/fail	Pass
Max T1 acceleration (g)	11.1
Head contact time (ms)	63
Force rating	1
Neck forces
Max neck shear force (N)	0
Max neck tension (N)	603

How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

All trims; built after June 2021

Distance at which headlights provide at least 5 lux illumination:
Low-beam headlight type	LED reflector
High-beam headlight type	LED reflector
Curve-adaptive?	No
High-beam assist?	Yes
Overall rating

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good in all 4 tests.

The low beams created some glare.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on the gradual left and gradual right curves and fair on the sharp right and sharp left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the sharp left curve and on the sharp right curve.

Technical measurements for this test

Trim level(s)	All trims
Low-beam headlight type	LED reflector
High-beam headlight type	LED reflector
Curve-adaptive?	No
High-beam assist?	Yes
Overall rating Applies to 2022-24 models built after June 2021

LOW BEAMS	Average minimum useful illumination distance (5 lux)	Amount glare exceeded threshold
Straightaway right edge	117.3 m	None
Straightaway left edge	63.3 m	None
250m radius right curve, right edge	78.4 m	0.3%
250m radius left curve, right edge	71.9 m	68.9%
150m radius right curve, right edge	59.1 m	None
150m radius left curve, left edge	57.0 m	53.7%

HIGH BEAMS	Average minimum useful illumination distance (5 lux)
Straightaway right edge	172.2 m
Straightaway left edge	147.7 m
250m radius right curve, right edge	89.1 m
250m radius left curve, left edge	86.0 m
150m radius right curve, right edge	64.6 m
150m radius left curve, left edge	61.0 m

Trim level(s)

All trims; built before July 2021

Distance at which headlights provide at least 5 lux illumination:
Low-beam headlight type	LED reflector
High-beam headlight type	LED reflector
Curve-adaptive?	No
High-beam assist?	Yes
Overall rating

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good in all 4 tests.

The low beams created excessive glare.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on the gradual left and gradual right curves and fair on the sharp left and sharp right curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the sharp right curve.

Technical measurements for this test

Trim level(s)	All trims
Low-beam headlight type	LED reflector
High-beam headlight type	LED reflector
Curve-adaptive?	No
High-beam assist?	Yes
Overall rating Applies to 2022 models built before July 2021

LOW BEAMS	Average minimum useful illumination distance (5 lux)	Amount glare exceeded threshold
Straightaway right edge	126.0 m	192.6%
Straightaway left edge	62.9 m	192.6%
250m radius right curve, right edge	82.5 m	137.9%
250m radius left curve, left edge	81.2 m	273.0%
150m radius right curve, right edge	59.7 m	127.1%
150m radius left curve, left edge	60.4 m	242.5%

HIGH BEAMS	Average minimum useful illumination distance (5 lux)
Straightaway right edge	191.4 m
Straightaway left edge	169.9 m
250m radius right curve, right edge	90.6 m
250m radius left curve, left edge	93.0 m
150m radius right curve, right edge	63.5 m
150m radius left curve, left edge	64.2 m

How headlights are evaluated

Front crash prevention: vehicle-to-vehicle

System details

Standard Forward Collision Mitigation System

Overall evaluation

Applies to 2022-23 models

Superior

This system meets the requirements for forward collision warning.
In the 12 mph test, this vehicle avoided a collision.
In the 25 mph test, this vehicle avoided a collision.

How front crash prevention is evaluated

Front crash prevention: pedestrian (day)

System details

standard Forward Collision Mitigation System

Overall evaluation

This rating applies to all 2022-24 models

Superior

Crossing child

In the 12 mph test, this vehicle avoided a collision.
In the 25 mph test, impact speed was reduced by 23 mph.

Crossing adult

In the 12 mph test, this vehicle avoided a collision.
In the 25 mph test, this vehicle avoided a collision.

Parallel adult

In the 25 mph test, this vehicle avoided a collision.
In the 37 mph test, this vehicle avoided a collision. A warning was issued 2.1 seconds before impact.

Child seat anchors

Rating applies to 2022-24 models

Overall evaluation
Vehicle trim	SE
Seat type	leather

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Overall evaluation
Vehicle trim	SE
Seat type	leather

G	Good
A	Acceptable
M	Marginal
P	Poor
	Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol	Tether anchor
lower anchor symbol	Lower anchors
shared lower achors symbol	Lower anchor(s) can be borrowed from adjacent positions(s)
	No hardware available

Details by seating position

1
1	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	not too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors
2
2	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	none available
3
3	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	not too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors

Technical measurements for this test

Seat position 21

Lower anchor A
Open access rated	No
Depth (cm)	0-2
Force (lbs)	11
Clearance angle (degrees)	81
Lower anchor B
Open access rated	No
Depth (cm)	0-2
Force (lbs)	11
Clearance angle (degrees)	83
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes

Seat position 22

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes

Seat position 23

Lower anchor A
Open access rated	No
Depth (cm)	0-2
Force (lbs)	12
Clearance angle (degrees)	71
Lower anchor B
Open access rated	No
Depth (cm)	0-2
Force (lbs)	11
Clearance angle (degrees)	70
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes

How child seat anchors are evaluated
