2000 Mazda Millenia

midsize luxury car / 4-door sedan

2000 Mazda Millenia 4-door sedan

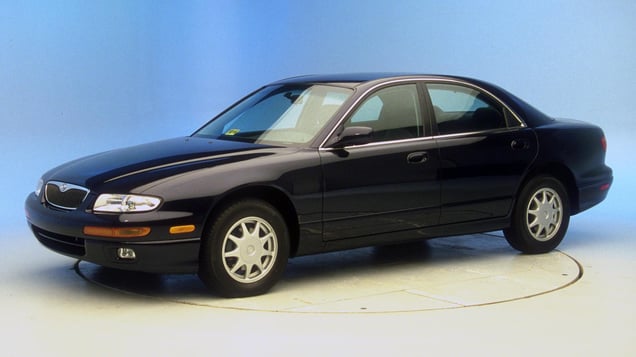

1995 Mazda Millenia shown

Crashworthiness

Rating overview
Moderate overlap front: original test

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Moderate overlap front: original test

Rating applies to 1995-2002 models

Tested vehicle: 1995 Mazda Millenia 4-door

The Mazda Millenia was introduced in the 1995 model year and restyled for 2001.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Action shot taken during the frontal offset crash test.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well.

Footwell intrusion contributed to the likelihood of left leg injury. The dummy's right leg finished trapped at the heel in the buckled floor.

There was moderate deformation of the occupant compartment along the roof rail, but the structural integrity of the driver door was maintained well.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CF95006
Footwell intrusion
Footrest (cm) 16
Left (cm) 24
Center (cm) 27
Right (cm) 22
Brake pedal (cm) 25
Instrument panel rearward movement
Left (cm) 8
Right (cm) 6
Steering column movement
Upward (cm) 6
Rearward (cm) 7
A-pillar rearward movement (cm) 3

Driver injury measures

Test ID CF95006
Head
HIC-15 175
Peak gs at hard contact 18
Neck
Tension (kN) 1.4
Extension bending moment (Nm) 26
Maximum Nij 0.31
Chest maximum compression (mm) 39
Legs
Femur force - left (kN) 4.8
Femur force - right (kN) 1.6
Knee displacement - left (mm) 8
Knee displacement - right (mm) 1
Maximum tibia index - left 1.59
Maximum tibia index - right 0.50
Tibia axial force - left (kN) 1.2
Tibia axial force - right (kN) 3.3
Foot acceleration (g)
Left 62
Right 59

About the original moderate overlap front test
