Top Safety Pick + Top Safety Pick criteria

2014 Mazda 3

small car / 4-door hatchback

Award applies only to vehicles with optional front crash prevention built after October 2013

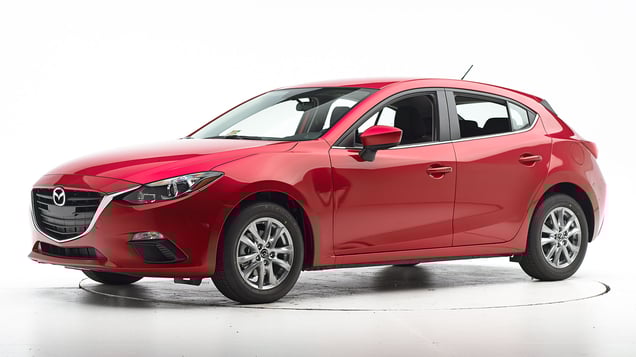

2014 Mazda 3 4-door hatchback

Crashworthiness

Rating overview
Small overlap front: driver-side
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Front crash prevention: vehicle-to-vehicle
Optional system
Advanced

Other available safety features

  • Standard daytime running lights
  • Optional blind spot detection
  • Optional lane departure warning

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2014-18 models built after October 2013

Tested vehicle: 2014 Mazda 3 i-Touring 4-door

The Mazda 3 was redesigned for the 2014 model year. Beginning with 2014 models built after October 2013, the front suspension was modified to improve occupant protection in small overlap frontal crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.) The small overlap frontal ratings apply to both the hatchback and sedan versions of the Mazda 3.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

Forces on the right lower leg were just high enough to indicate a moderate risk of injury.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1346
Lower occupant compartment
Lower hinge pillar max (cm) 12
Footrest (cm) 8
Left toepan (cm) 3
Brake pedal (cm) 5
Parking brake (cm)
Rocker panel lateral average (cm) 1
Upper occupant compartment
Steering column 0
Upper hinge pillar max (cm) 4
Upper dash (cm) 7
Lower instrument panel (cm) 9

Driver injury measures

Test ID CEN1346
Head
HIC-15 210
Peak gs at hard contact no contact
Neck
Tension (kN) 1.5
Extension bending moment (Nm) 5
Maximum Nij 0.25
Chest maximum compression (mm) 24
Femur (kN)
Left 0.5
Right 0.2
Knee displacement (mm)
Left 1
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.46
Right 0.86
Tibia axial force (kN)
Left 1.2
Right 1.5
Foot acceleration (g)
Left 50
Right 54

How the driver-side small overlap front test is conducted

Moderate overlap front: original test

Rating applies to 2014-18 models

Tested vehicle: 2014 Mazda 3 i-Touring 4-door

The Mazda 3 was redesigned for the 2014 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Mazda as part of frontal crash test verification. These ratings apply to both the sedan and hatchback versions of the Mazda 3.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1315
Footwell intrusion
Footrest (cm) 3
Left (cm) 7
Center (cm) 8
Right (cm) 2
Brake pedal (cm) 2
Instrument panel rearward movement
Left (cm) 0
Right (cm) -1
Steering column movement
Upward (cm) -4
Rearward (cm) -5
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1315
Head
HIC-15 124
Peak gs at hard contact no contact
Neck
Tension (kN) 1.2
Extension bending moment (Nm) 14
Maximum Nij 0.24
Chest maximum compression (mm) 35
Legs
Femur force - left (kN) 0.5
Femur force - right (kN) 0.3
Knee displacement - left (mm) 0
Knee displacement - right (mm) 0
Maximum tibia index - left 0.41
Maximum tibia index - right 0.53
Tibia axial force - left (kN) 2.0
Tibia axial force - right (kN) 2.1
Foot acceleration (g)
Left 44
Right 64

How the moderate overlap front test is conducted

Side: original test

Rating applies to 2014-18 models

Tested vehicle: 2014 Mazda 3 i-Touring 4-door with standard front and rear head curtain airbags and standard front seat-mounted torso airbags

The Mazda 3 was redesigned for the 2014 model year. Side ratings are assigned by the Institute based on a test conducted by Mazda as part of side crash test verification. These ratings apply to both the sedan and hatchback versions of the Mazda 3.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1310
B-pillar to longitudinal centerline of driver's seat (cm) -14.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1310
Head HIC-15 408
Neck
Tension (kN) 0.9
Compression (kN) 0.4
Shoulder
Lateral deflection (mm) 32
Lateral force (kN) 1.5
Torso
Maximum deflection (mm) 32
Average deflection (mm) 29
Maximum deflection rate (m/s) 3.76
Maximum viscous criterion (m/s) 0.42
Pelvis
Iliac force (kN) 1.5
Acetabulum force (kN) 1.3
Combined force (kN) 2.6
Left femur
L-M force (kN) 1.9
L-M moment (Nm) 114
A-P moment (Nm) 138

Passenger injury measures

Test ID VTS1310
Head HIC-15 113
Neck
Tension (kN) 0.3
Compression (kN) 0.5
Shoulder
Lateral deflection (mm) 48
Lateral force (kN) 1.8
Torso
Maximum deflection (mm) 42
Average deflection (mm) 32
Maximum deflection rate (m/s) 2.61
Maximum viscous criterion (m/s) 0.58
Pelvis
Iliac force (kN) 0.1
Acetabulum force (kN) 1.6
Combined force (kN) 1.6
Left femur
L-M force (kN) 1.1
L-M moment (Nm) 49
A-P moment (Nm) 158

How the side crash test is conducted

Roof strength

Rating applies to 2014-18 models

Tested vehicle: 2014 Mazda 3 i Touring 4-door

Rating applies to both the Mazda 3 hatchback (tested) and the structurally similar Mazda 3 sedan.

Overall evaluation
Curb weight 2,866 lbs
Peak force 18,217 lbs
Strength-to-weight ratio 6.36

How the roof strength test is conducted

Head restraints & seats

Seat type: Manual cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Manual cloth seat
Geometry
Backset (mm) 14
Distance below top of head (mm) 4
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 11.1
Head contact time (ms) 61
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 396

How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.

Front crash prevention: vehicle-to-vehicle

System details

  • Optional Smart City Brake Support

Package name

  • Optional Technology Package

Overall evaluation

Applies to 2014-16 models

Advanced
Advanced
with optional equipment
  • This system does not meet the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle failed to slow.

How front crash prevention is evaluated
