2000 Lexus LS
large luxury car / 4-door sedan
Moderate overlap front: original test

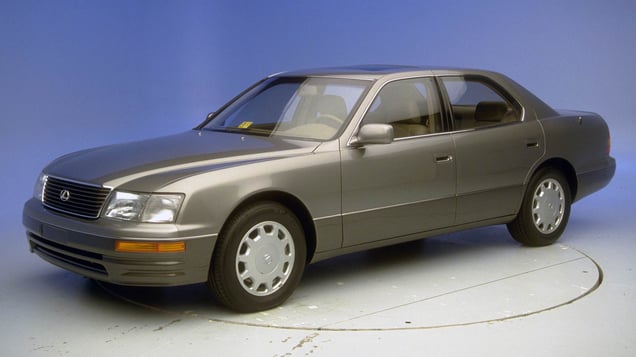

Tested vehicle: 1997 Lexus LS 400 4-door
Rating applies to 1995-2000 models
The Lexus LS, available as only one model named the LS 400, was redesigned for the 1995 model year.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CF96031 |
| Footwell intrusion | |
| Footrest (cm) | 6 |
| Left (cm) | 16 |
| Center (cm) | 15 |
| Right (cm) | 11 |
| Brake pedal (cm) | 9 |
| Instrument panel rearward movement | |
| Left (cm) | 3 |
| Right (cm) | 4 |
| Steering column movement | |
| Upward (cm) | 1 |
| Rearward (cm) | 6 |
| A-pillar rearward movement (cm) | 5 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CF96031 |
| Head | |
| HIC-15 | 414 |
| Peak gs at hard contact | negligible |
| Neck | |
| Tension (kN) | 1.5 |
| Extension bending moment (Nm) | 22 |
| Maximum Nij | 0.31 |
| Chest maximum compression (mm) | 37 |
| Legs | |
| Femur force - left (kN) | 2.8 |
| Femur force - right (kN) | 5.3 |
| Knee displacement - left (mm) | 3 |
| Knee displacement - right (mm) | 9 |
| Maximum tibia index - left | 0.40 |
| Maximum tibia index - right | 0.66 |
| Tibia axial force - left (kN) | 1.0 |
| Tibia axial force - right (kN) | 1.9 |
| Foot acceleration (g) | |
| Left | 59 |
| Right | 64 |
