2004 Land Rover Discovery Series II

midsize SUV / 4-door SUV

2004 Land Rover Discovery Series II 4-door SUV

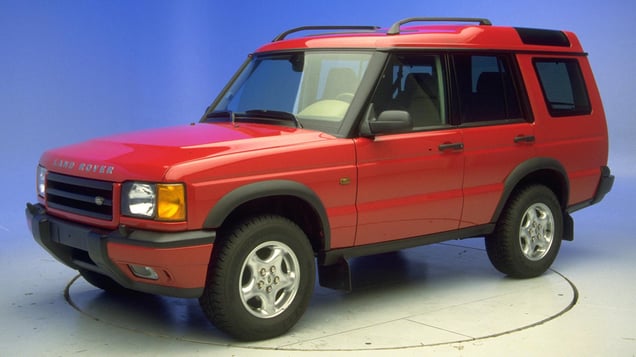

1999 Land Rover Discovery Series II shown

Crashworthiness

Rating overview
Moderate overlap front

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Moderate overlap front

Rating applies to 1999-2004 models built after October 1998

Tested vehicle: 1999 Land Rover Discovery Ser.II 4-door 4wd

The Land Rover Discovery was re-engineered during the 1999 model year and renamed the Discovery Series II. The size of the cargo area was increased, and for all 1999 and later models manufactured after October 1998, the vehicle was structurally modified to improve occupant protection in frontal crashes. (Note: Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on or near the driver door.)

The Institute has evaluated the crashworthiness of a 1999 Discovery Series II with the structural changes in a 40 mph frontal offset crash test into a deformable barrier.

Overall evaluation
Structure and safety cage
Injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Restraints and dummy kinematics
Dummy movement was well controlled. During rebound, the dummy's head tilted toward the driver door and then hit the B-pillar as it continued moving rearward. There was too much upward movement of the steering wheel.

Action shot taken during the frontal offset crash test.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates the driver's survival space was maintained reasonably well.

Intrusion in the footwell area contributed to high forces on the dummy's left leg, indicating injury likelihood.

Smeared greasepaint on the airbag shows where the dummy's face contacted it. The restraints performed well except for the excessive steering column movement.
