Small overlap front
The small overlap front evaluation consists of a driver-side and a passenger-side component. If the results of the two evaluations differ, then the combined small overlap rating is equal to the lower rating.
Driver-side
- Rating applies to 2021-24 models

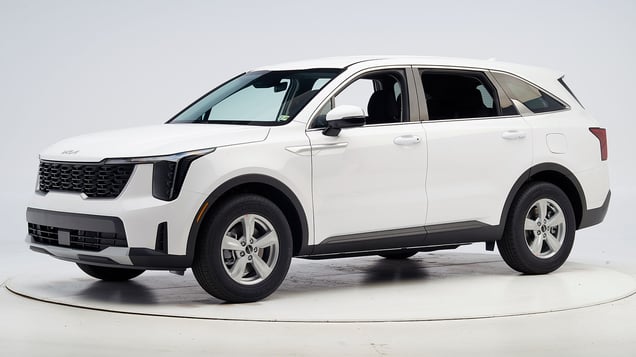

Tested vehicle: 2021 Kia Sorento S 4-door 4wd
The Kia Sorento was redesigned for the 2021 model year. Driver-side small overlap frontal ratings are assigned by the Institute based on a test of a 2021 Kia Sorento conducted by Hyundai/Kia as part of frontal crash test verification.
Overall driver-side evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTN2013 |
---|---|
Lower occupant compartment | |
Lower hinge pillar max (cm) | 11 |
Footrest (cm) | 7 |
Left toepan (cm) | 6 |
Brake pedal (cm) | 2 |
Parking brake (cm) | 9 |
Rocker panel lateral average (cm) | 5 |
Upper occupant compartment | |
Steering column | 1 |
Upper hinge pillar max (cm) | 4 |
Upper dash (cm) | 6 |
Lower instrument panel (cm) | 8 |
Driver injury measures
Test ID | VTN2013 |
---|---|
Head | |
HIC-15 | 83 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 0.9 |
Extension bending moment (Nm) | 10 |
Maximum Nij | 0.18 |
Chest maximum compression (mm) | 24 |
Femur (kN) | |
Left | 1.0 |
Right | 0.8 |
Knee displacement (mm) | |
Left | 3 |
Right | 2 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.56 |
Right | 0.53 |
Tibia axial force (kN) | |
Left | 2.2 |
Right | 0.7 |
Foot acceleration (g) | |
Left | 35 |
Right | 38 |
Passenger-side
- Rating applies to 2021-24 models
Tested vehicle: 2021 Kia Sorento S 4-door 4wd
The Kia Sorento was redesigned for the 2021 model year. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test of a 2021 Kia Sorento conducted by Hyundai/Kia as part of frontal crash test verification.
Overall passenger-side evaluation | |
---|---|
Structure and safety cage | |
Passenger injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Passenger restraints and dummy kinematics | |
Driver injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on passenger side
Test ID | VTP2017 |
---|---|
Lower occupant compartment | |
Lower hinge pillar max (cm) | 12 |
Footrest (cm) | 7 |
Right toepan (cm) | 4 |
Center toepan (cm) | 3 |
Rocker panel lateral average (cm) | 5 |
Upper occupant compartment | |
Center dash (cm) | 5 |
Upper hinge pillar max (cm) | 6 |
Upper dash (cm) | 7 |
Right lower dash (cm) | 6 |
Passenger injury measures
Test ID | VTP2017 |
---|---|
Head | |
HIC-15 | 79 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 0.8 |
Extension bending moment (Nm) | 13 |
Maximum Nij | 0.17 |
Chest maximum compression (mm) | 25 |
Femur (kN) | |
Left | 0.1 |
Right | 0.5 |
Knee displacement (mm) | |
Left | 0 |
Right | 1 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.39 |
Right | 0.65 |
Tibia axial force (kN) | |
Left | 0.8 |
Right | 1.2 |
Foot acceleration (g) | |
Left | 29 |
Right | 54 |
Driver injury measures
Test ID | VTP2017 |
---|---|
Head | |
HIC-15 | 84 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 0.9 |
Extension bending moment (Nm) | 13 |
Maximum Nij | 0.20 |
Chest maximum compression (mm) | 24 |
Femur (kN) | |
Left | 0.8 |
Right | 0.9 |
Knee displacement (mm) | |
Left | 1 |
Right | 2 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.32 |
Right | 0.43 |
Tibia axial force (kN) | |
Left | 1.5 |
Right | 1.0 |
Foot acceleration (g) | |
Left | 38 |
Right | 56 |
Moderate overlap front: original test
Rating applies to 2021-24 models
Tested vehicle: 2021 Kia Sorento S 4-door 4wd
The Kia Sorento was redesigned for the 2021 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test of a 2021 Kia Sorento conducted by Hyundai/Kia as part of frontal crash test verification.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTF2017 |
---|---|
Footwell intrusion | |
Footrest (cm) | 4 |
Left (cm) | 7 |
Center (cm) | 5 |
Right (cm) | 7 |
Brake pedal (cm) | 5 |
Instrument panel rearward movement | |
Left (cm) | 0 |
Right (cm) | 1 |
Steering column movement | |
Upward (cm) | -1 |
Rearward (cm) | -2 |
A-pillar rearward movement (cm) | 0 |
Driver injury measures
Test ID | VTF2017 |
---|---|
Head | |
HIC-15 | 237 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.0 |
Extension bending moment (Nm) | 8 |
Maximum Nij | 0.26 |
Chest maximum compression (mm) | 31 |
Legs | |
Femur force - left (kN) | 1.3 |
Femur force - right (kN) | 1.8 |
Knee displacement - left (mm) | 2 |
Knee displacement - right (mm) | 2 |
Maximum tibia index - left | 0.44 |
Maximum tibia index - right | 0.41 |
Tibia axial force - left (kN) | 2.3 |
Tibia axial force - right (kN) | 2.2 |
Foot acceleration (g) | |
Left | 46 |
Right | 42 |
Side: original test
Rating applies to 2021-24 models
Tested vehicle: 2021 Kia Sorento S 4-door 4wd
The Kia Sorento was redesigned for the 2021 model year. Side ratings are assigned by the Institute based on a test of a 2021 Kia Sorento conducted by Hyundai/Kia as part of side crash test verification.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
Measures of occupant compartment intrusion on driver side
Test ID | VTS2018 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -20.0 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | VTS2018 |
---|---|
Head HIC-15 | 116 |
Neck | |
Tension (kN) | 0.8 |
Compression (kN) | -0.6 |
Shoulder | |
Lateral deflection (mm) | 40 |
Lateral force (kN) | 1.2 |
Torso | |
Maximum deflection (mm) | 35 |
Average deflection (mm) | 31 |
Maximum deflection rate (m/s) | 4.42 |
Maximum viscous criterion (m/s) | 0.48 |
Pelvis | |
Iliac force (kN) | 1.5 |
Acetabulum force (kN) | 1.2 |
Combined force (kN) | 2.7 |
Left femur | |
L-M force (kN) | 0.3 |
L-M moment (Nm) | 53 |
A-P moment (Nm) | 35 |
Passenger injury measures
Test ID | VTS2018 |
---|---|
Head HIC-15 | 113 |
Neck | |
Tension (kN) | 0.1 |
Compression (kN) | -0.4 |
Shoulder | |
Lateral deflection (mm) | 33 |
Lateral force (kN) | 1.9 |
Torso | |
Maximum deflection (mm) | 43 |
Average deflection (mm) | 26 |
Maximum deflection rate (m/s) | 3.23 |
Maximum viscous criterion (m/s) | 0.57 |
Pelvis | |
Iliac force (kN) | 0.5 |
Acetabulum force (kN) | 1.0 |
Combined force (kN) | 1.1 |
Left femur | |
L-M force (kN) | 0.4 |
L-M moment (Nm) | 75 |
A-P moment (Nm) | -20 |
Child seat anchors
Rating applies to 2021-24 models
Overall evaluation |
|
Vehicle trim | SX |
Seat type | leatherette |
This vehicle has 4 rear seating positions with complete child seat attachment (LATCH) hardware.
Overall evaluation |
|
Vehicle trim | SX |
Seat type | leatherette |
G | Good |
A | Acceptable |
M | Marginal |
P | Poor |
|
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. |
thether anchor symbol
|
Tether anchor |
lower anchor symbol
|
Lower anchors |
Lower anchor(s) can be borrowed from adjacent positions(s) | |
|
No hardware available |
Details by seating position
1 | |
---|---|
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
too deep in seat | |
not too much force needed to attach | |
easy to maneuver around anchors | |
3 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
too deep in seat | |
not too much force needed to attach | |
easy to maneuver around anchors | |
4 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
too deep in seat | |
not too much force needed to attach | |
easy to maneuver around anchors | |
6 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
too deep in seat | |
not too much force needed to attach | |
easy to maneuver around anchors |
Seat position 21
Lower anchor A | |
---|---|
Open access rated | No |
Depth (cm) | 2-4 |
Force (lbs) | 11 |
Clearance angle (degrees) | 76 |
Lower anchor B | |
Open access rated | No |
Depth (cm) | 2-4 |
Force (lbs) | 16 |
Clearance angle (degrees) | 76 |
Tether anchor | |
Location | Middle seatback |
Confusing hardware present | Yes |
Has contrasting label within 3 inches of tether anchor |
Yes |
Seat position 23
Lower anchor A | |
---|---|
Open access rated | No |
Depth (cm) | 2-4 |
Force (lbs) | 17 |
Clearance angle (degrees) | 67 |
Lower anchor B | |
Open access rated | No |
Depth (cm) | 2-4 |
Force (lbs) | 12 |
Clearance angle (degrees) | 79 |
Tether anchor | |
Location | Middle seatback |
Confusing hardware present | Yes |
Has contrasting label within 3 inches of tether anchor |
Yes |
Seat position 31
Lower anchor A | |
---|---|
Open access rated | No |
Depth (cm) | 2-4 |
Force (lbs) | 14 |
Clearance angle (degrees) | 79 |
Lower anchor B | |
Open access rated | No |
Depth (cm) | 0-2 |
Force (lbs) | 18 |
Clearance angle (degrees) | 77 |
Tether anchor | |
Location | Middle seatback |
Confusing hardware present | Yes |
Has contrasting label within 3 inches of tether anchor |
Yes |
Seat position 33
Lower anchor A | |
---|---|
Open access rated | No |
Depth (cm) | 0-2 |
Force (lbs) | 17 |
Clearance angle (degrees) | 78 |
Lower anchor B | |
Open access rated | No |
Depth (cm) | 2-4 |
Force (lbs) | 17 |
Clearance angle (degrees) | 78 |
Tether anchor | |
Location | Middle seatback |
Confusing hardware present | Yes |
Has contrasting label within 3 inches of tether anchor |
Yes |
