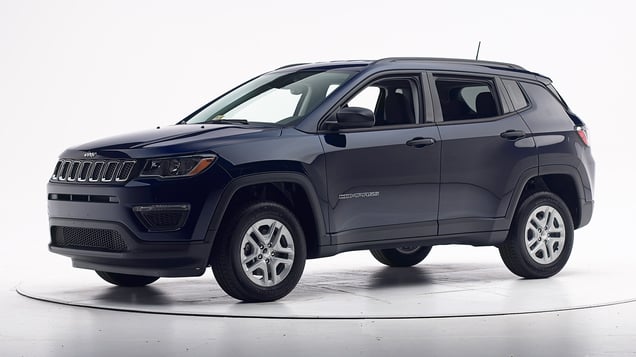

2020 Jeep Compass
small SUV / 4-door SUV
Small overlap front: driver-side
Tested vehicle: 2017 Jeep Compass Sport 4-door 4wd
Rating applies to 2017-21 models built after December 2016
The Jeep Compass was redesigned during the 2017 model year. (A short run of old-design 2017 models was produced through December 2016.) All 2017 and later Compass models built after December 2016 are the redesigned vehicles. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEN1719 |
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 8 |
| Footrest (cm) | 5 |
| Left toepan (cm) | 3 |
| Brake pedal (cm) | 1 |
| Parking brake (cm) | |
| Rocker panel lateral average (cm) | 1 |
| Upper occupant compartment | |
| Steering column | 0 |
| Upper hinge pillar max (cm) | 5 |
| Upper dash (cm) | 6 |
| Lower instrument panel (cm) | 6 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEN1719 |
| Head | |
| HIC-15 | 140 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.5 |
| Extension bending moment (Nm) | 12 |
| Maximum Nij | 0.24 |
| Chest maximum compression (mm) | 24 |
| Femur (kN) | |
| Left | 1.6 |
| Right | 0.8 |
| Knee displacement (mm) | |
| Left | 6 |
| Right | 5 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.45 |
| Right | 0.44 |
| Tibia axial force (kN) | |
| Left | 1.4 |
| Right | 0.4 |
| Foot acceleration (g) | |
| Left | 58 |
| Right | 57 |
Small overlap front: passenger-side
Tested vehicle: 2018 Jeep Compass Sport 4-door 4wd
Rating applies to 2017-21 models built after December 2016
The Jeep Compass was redesigned during the 2017 model year. (A short run of old-design 2017 models was produced through December 2016.) All 2017 and later Compass models built after December 2016 are the redesigned vehicles. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Passenger injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Passenger restraints and dummy kinematics | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics | |
Technical measurements for this test
Measures of occupant compartment intrusion on passenger side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEP1717 |
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 10 |
| Footrest (cm) | 11 |
| Right toepan (cm) | 6 |
| Center toepan (cm) | 4 |
| Rocker panel lateral average (cm) | 1 |
| Upper occupant compartment | |
| Center dash (cm) | 9 |
| Upper hinge pillar max (cm) | 8 |
| Upper dash (cm) | 12 |
| Right lower dash (cm) | 12 |
Passenger injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEP1717 |
| Head | |
| HIC-15 | 297 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.1 |
| Extension bending moment (Nm) | 37 |
| Maximum Nij | 0.42 |
| Chest maximum compression (mm) | 23 |
| Femur (kN) | |
| Left | 2.5 |
| Right | 4.4 |
| Knee displacement (mm) | |
| Left | 7 |
| Right | 3 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 2 |
| Maximum tibia index | |
| Left | 0.59 |
| Right | 0.84 |
| Tibia axial force (kN) | |
| Left | 2.9 |
| Right | 2.6 |
| Foot acceleration (g) | |
| Left | 65 |
| Right | 147 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEP1717 |
| Head | |
| HIC-15 | 129 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.0 |
| Extension bending moment (Nm) | 15 |
| Maximum Nij | 0.18 |
| Chest maximum compression (mm) | 30 |
| Femur (kN) | |
| Left | 0.8 |
| Right | 0.5 |
| Knee displacement (mm) | |
| Left | 4 |
| Right | 2 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.40 |
| Right | 0.43 |
| Tibia axial force (kN) | |
| Left | 1.1 |
| Right | 0.2 |
| Foot acceleration (g) | |
| Left | 48 |
| Right | 33 |
Moderate overlap front: original test
Tested vehicle: 2017 Jeep Compass Latitude 4-door 4wd
Rating applies to 2017-21 models built after December 2016
The Jeep Compass was redesigned during the 2017 model year. (A short run of old-design 2017 models was produced through December 2016.) All 2017 and later Compass models built after December 2016 are the redesigned vehicles. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)
Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Fiat Chrysler.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTF1716 |
| Footwell intrusion | |
| Footrest (cm) | 1 |
| Left (cm) | 2 |
| Center (cm) | 3 |
| Right (cm) | 2 |
| Brake pedal (cm) | 2 |
| Instrument panel rearward movement | |
| Left (cm) | -1 |
| Right (cm) | -1 |
| Steering column movement | |
| Upward (cm) | -4 |
| Rearward (cm) | -6 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTF1716 |
| Head | |
| HIC-15 | 318 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.4 |
| Extension bending moment (Nm) | 16 |
| Maximum Nij | 0.31 |
| Chest maximum compression (mm) | 33 |
| Legs | |
| Femur force - left (kN) | 1.0 |
| Femur force - right (kN) | 1.4 |
| Knee displacement - left (mm) | 3 |
| Knee displacement - right (mm) | 3 |
| Maximum tibia index - left | 0.55 |
| Maximum tibia index - right | 0.52 |
| Tibia axial force - left (kN) | 3.3 |
| Tibia axial force - right (kN) | 1.9 |
| Foot acceleration (g) | |
| Left | 110 |
| Right | 130 |
Side: original test
Tested vehicle: 2017 Jeep Compass Latitude 4-door 4wd
Rating applies to 2017-21 models built after December 2016
The Jeep Compass was redesigned during the 2017 model year. (A short run of old-design 2017 models was produced through December 2016.) All 2017 and later Compass models built after December 2016 are the redesigned vehicles. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)
Side ratings are assigned by the Institute based on a test conducted by Fiat Chrysler.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Test ID | VTS1714 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -17.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTS1714 |
| Head HIC-15 | 377 |
| Neck | |
| Tension (kN) | 1.1 |
| Compression (kN) | 0.4 |
| Shoulder | |
| Lateral deflection (mm) | 23 |
| Lateral force (kN) | 1.4 |
| Torso | |
| Maximum deflection (mm) | 32 |
| Average deflection (mm) | 28 |
| Maximum deflection rate (m/s) | 3.70 |
| Maximum viscous criterion (m/s) | 0.55 |
| Pelvis | |
| Iliac force (kN) | 2.0 |
| Acetabulum force (kN) | 1.7 |
| Combined force (kN) | 3.5 |
| Left femur | |
| L-M force (kN) | 0.4 |
| L-M moment (Nm) | 54 |
| A-P moment (Nm) | 37 |
Passenger injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTS1714 |
| Head HIC-15 | 161 |
| Neck | |
| Tension (kN) | 0.4 |
| Compression (kN) | 1.2 |
| Shoulder | |
| Lateral deflection (mm) | 43 |
| Lateral force (kN) | 1.9 |
| Torso | |
| Maximum deflection (mm) | 33 |
| Average deflection (mm) | 26 |
| Maximum deflection rate (m/s) | 5.35 |
| Maximum viscous criterion (m/s) | 0.57 |
| Pelvis | |
| Iliac force (kN) | 1.0 |
| Acetabulum force (kN) | 2.9 |
| Combined force (kN) | 3.5 |
| Left femur | |
| L-M force (kN) | 0.7 |
| L-M moment (Nm) | 59 |
| A-P moment (Nm) | 24 |
Side: updated test
Tested vehicle: 2021 Jeep Compass Latitude 4-door 4wd
Rating applies to 2017-21 models built after December 2016
The Jeep Compass was redesigned during the 2017 model year. (A short run of old-design 2017 models was produced through December 2016.) All 2017 and later Compass models built after December 2016 are the redesigned vehicles. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Rear passenger head protection | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES2109 |
| B-pillar to longitudinal centerline of driver's seat (cm) | -12.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES2109 |
| Head | |
| HIC-15 | 189 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.2 |
| Compression (kN) | 0.1 |
| Shoulder | |
| Lateral deflection (mm) | 26 |
| Lateral force (kN) | 1.1 |
| Torso | |
| Maximum deflection (mm) | 33 |
| Average deflection (mm) | 31 |
| Maximum deflection rate (m/s) | 3.96 |
| Maximum viscous criterion (m/s) | 0.62 |
| Pelvis | |
| Combined force (kN) | 6.8 |
Passenger injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES2109 |
| Head | |
| HIC-15 | 202 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.1 |
| Compression (kN) | 1.0 |
| Shoulder | |
| Lateral deflection (mm) | 54 |
| Lateral force (kN) | 2.2 |
| Torso | |
| Maximum deflection (mm) | 45 |
| Average deflection (mm) | 36 |
| Maximum deflection rate (m/s) | 6.24 |
| Maximum viscous criterion (m/s) | 0.96 |
| Pelvis | |
| Combined force (kN) | 4.2 |
Roof strength
Tested vehicle: 2017 Jeep Compass Latitude 4-door 4wd
Rating applies to 2017-23 models built after December 2016
| Overall evaluation | |
|---|---|
| Curb weight | 3,429 lbs |
| Peak force | 16,952 lbs |
| Strength-to-weight ratio | 4.94 |
Head restraints & seats
Seat type: Manual leatherette seat
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
Technical measurements for this test
| Seat type | Manual leatherette seat |
|---|---|
| Geometry | |
| Backset (mm) | 14 |
| Distance below top of head (mm) | -2 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 10.4 |
| Head contact time (ms) | 55 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 0 |
| Max neck tension (N) | 321 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
Headlights
Ratings are given for 4 different headlight variations available on this vehicle.
(1) Trim level(s): Latitude trim equipped with Premium Lighting Group and Advanced Safety Group packages, Trailhawk trim equipped with Premium Lighting Group and Advanced Safety Group packages, Limited trim equipped with Premium Lighting Group and Advanced Safety Group packages
| Evaluation criteria | Rating |
|---|---|
| Low-beam headlight type | HID projector |
| High-beam headlight type | HID projector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was fair on the left side of the road and inadequate on the right side. On curves, visibility was good on the gradual right curve, fair on the sharp right and sharp left curves, and inadequate on the gradual left curve.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was fair on the gradual right and gradual left curves and inadequate on the sharp right and sharp left curves.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.
Technical measurements for this test
| Evaluation criteria | Measurement |
|---|---|
| Trim level(s) |
|
| Low-beam headlight type | HID projector |
| High-beam headlight type | HID projector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating Applies to 2017-21 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 70.1 m | None |
| Straightaway left edge | 51.4 m | None |
| 250m radius right curve, right edge | 67.7 m | None |
| 250m radius left curve, right edge | 47.0 m | None |
| 150m radius right curve, right edge | 52.7 m | None |
| 150m radius left curve, left edge | 47.1 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 122.3 m |
| Straightaway left edge | 95.9 m |
| 250m radius right curve, right edge | 68.8 m |
| 250m radius left curve, left edge | 65.2 m |
| 150m radius right curve, right edge | 53.6 m |
| 150m radius left curve, left edge | 49.8 m |
(2) Trim level(s): Sport trim equipped with Advanced Safety Group package
| Evaluation criteria | Rating |
|---|---|
| Low-beam headlight type | Halogen reflector |
| High-beam headlight type | Halogen reflector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.
Technical measurements for this test
| Evaluation criteria | Measurement |
|---|---|
| Trim level(s) |
|
| Low-beam headlight type | Halogen reflector |
| High-beam headlight type | Halogen reflector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating Applies to 2020-21 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 79.1 m | None |
| Straightaway left edge | 38.4 m | None |
| 250m radius right curve, right edge | 49.0 m | None |
| 250m radius left curve, left edge | 39.6 m | None |
| 150m radius right curve, right edge | 37.7 m | None |
| 150m radius left curve, left edge | 36.4 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 155.4 m |
| Straightaway left edge | 123.6 m |
| 250m radius right curve, right edge | 60.7 m |
| 250m radius left curve, left edge | 58.4 m |
| 150m radius right curve, right edge | 48.7 m |
| 150m radius left curve, left edge | 45.7 m |
(3) Trim level(s): Latitude trim equipped with Premium Lighting Group package, Trailhawk trim equipped with Premium Lighting Group package, Limited trim equipped with Premium Lighting Group package
| Evaluation criteria | Rating |
|---|---|
| Low-beam headlight type | HID projector |
| High-beam headlight type | HID projector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was fair on the left side of the road and inadequate on the right side. On curves, visibility was good on the gradual right curve, fair on the sharp right and sharp left curves, and inadequate on the gradual left curve.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was fair on the gradual right and gradual left curves and inadequate on the sharp right and sharp left curves.
Technical measurements for this test
| Evaluation criteria | Measurement |
|---|---|
| Trim level(s) |
|
| Low-beam headlight type | HID projector |
| High-beam headlight type | HID projector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating Applies to 2019-20 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 70.1 m | None |
| Straightaway left edge | 51.4 m | None |
| 250m radius right curve, right edge | 67.7 m | None |
| 250m radius left curve, right edge | 47.0 m | None |
| 150m radius right curve, right edge | 52.7 m | None |
| 150m radius left curve, left edge | 47.1 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 122.3 m |
| Straightaway left edge | 95.9 m |
| 250m radius right curve, right edge | 68.8 m |
| 250m radius left curve, left edge | 65.2 m |
| 150m radius right curve, right edge | 53.6 m |
| 150m radius left curve, left edge | 49.8 m |
(4) Trim level(s): Sport trim, Latitude trim, Trailhawk trim, Limited trim
| Evaluation criteria | Rating |
|---|---|
| Low-beam headlight type | Halogen reflector |
| High-beam headlight type | Halogen reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.
Technical measurements for this test
| Evaluation criteria | Measurement |
|---|---|
| Trim level(s) |
|
| Low-beam headlight type | Halogen reflector |
| High-beam headlight type | Halogen reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating Applies to 2017-21 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 79.1 m | None |
| Straightaway left edge | 38.4 m | None |
| 250m radius right curve, right edge | 49.0 m | None |
| 250m radius left curve, left edge | 39.6 m | None |
| 150m radius right curve, right edge | 37.7 m | None |
| 150m radius left curve, left edge | 36.4 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 155.4 m |
| Straightaway left edge | 123.6 m |
| 250m radius right curve, right edge | 60.7 m |
| 250m radius left curve, left edge | 58.4 m |
| 150m radius right curve, right edge | 48.7 m |
| 150m radius left curve, left edge | 45.7 m |
