Small overlap front: driver-side
Rating applies to 2014-19 models

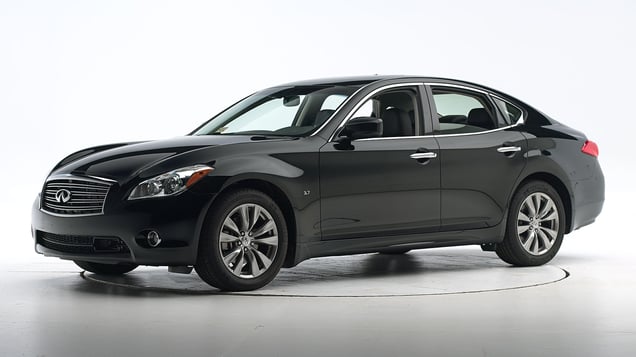

Tested vehicle: 2014 Infiniti Q70 3.7 4-door
The Infiniti M sedan was renamed the Infiniti Q70 beginning with the 2014 model year, available with V6, V8, and hybrid V6 powertrains. Starting with 2013 M models, design changes were made to the frontal airbags and seat belts; no additional substantive changes were made with the model name change for 2014.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Driver restraints and dummy kinematics |
Action shot taken during the small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well.
The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.
Except for door hinge pillar deformation and intrusion of the parking brake pedal (not visible), the driver's space was maintained reasonably well, and risk of injuries to the dummy's legs and feet was low.
Measures of occupant compartment intrusion on driver side
Test ID | CEN1431 |
---|---|
Lower occupant compartment | |
Lower hinge pillar max (cm) | 15 |
Footrest (cm) | 14 |
Left toepan (cm) | 9 |
Brake pedal (cm) | 7 |
Parking brake (cm) | 22 |
Rocker panel lateral average (cm) | 10 |
Upper occupant compartment | |
Steering column | 0 |
Upper hinge pillar max (cm) | 8 |
Upper dash (cm) | 8 |
Lower instrument panel (cm) | 9 |
Driver injury measures
Test ID | CEN1431 |
---|---|
Head | |
HIC-15 | 109 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 0.8 |
Extension bending moment (Nm) | 7 |
Maximum Nij | 0.15 |
Chest maximum compression (mm) | 26 |
Femur (kN) | |
Left | 2.5 |
Right | 1.1 |
Knee displacement (mm) | |
Left | 4 |
Right | 2 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.68 |
Right | 0.52 |
Tibia axial force (kN) | |
Left | 1.8 |
Right | 2.2 |
Foot acceleration (g) | |
Left | 90 |
Right | 55 |
Moderate overlap front: original test
Rating applies to 2014-19 models
Tested vehicle: 2013 Infiniti M37 Premium 4-door 4wd
Beginning with the 2014 model year, the Infiniti M sedan was renamed the Infiniti Q70, available with V6, V8, and hybrid V6 powertrains.
The Infiniti M sedan was redesigned for the 2011 model year and renamed the M37 and M56 at that time because the sizes of the two available engines were increased. A hybrid-electric version of the M, known as the M Hybrid, was introduced in the 2012 model year. Beginning with 2013 models, design changes were made to the frontal airbags and seat belts.
Two moderate overlap frontal tests of the M were conducted by Nissan, one of a 2011 model and the other representing a 2013 model as part of frontal crash test verification. These cars are rated separately, except that the structure ratings for both vehicles are based on both tests. (The second car tested by Nissan was designated as a 2012 model but included the airbag and seat belt changes of the 2013 models.)
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTF0912 | VTF1123 |
---|---|---|
Footwell intrusion | ||
Footrest (cm) | 4 | 7 |
Left (cm) | 8 | 9 |
Center (cm) | 11 | 12 |
Right (cm) | 11 | 12 |
Brake pedal (cm) | 11 | 16 |
Instrument panel rearward movement | ||
Left (cm) | 1 | 1 |
Right (cm) | 2 | 1 |
Steering column movement | ||
Upward (cm) | 5 | 0 |
Rearward (cm) | -1 | 1 |
A-pillar rearward movement (cm) | 0 | 0 |
Driver injury measures
Test ID | VTF1123 | |
---|---|---|
Head | ||
HIC-15 | 491 | |
Peak gs at hard contact | 89 | |
Neck | ||
Tension (kN) | 1.3 | |
Extension bending moment (Nm) | 25 | |
Maximum Nij | 0.28 | |
Chest maximum compression (mm) | 32 | |
Legs | ||
Femur force - left (kN) | 0.5 | |
Femur force - right (kN) | 3.6 | |
Knee displacement - left (mm) | 2 | |
Knee displacement - right (mm) | 1 | |
Maximum tibia index - left | 0.32 | |
Maximum tibia index - right | 0.63 | |
Tibia axial force - left (kN) | 1.6 | |
Tibia axial force - right (kN) | 2.7 | |
Foot acceleration (g) | ||
Left | 84 | |
Right | 119 |
Side: original test
Rating applies to 2014-19 models
Tested vehicle: 2013 Infiniti M56 Premium 4-door 4wd with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
Beginning with the 2014 model year, the Infiniti M sedan was renamed the Infiniti Q70, available with V6, V8, and hybrid V6 powertrains.
The Infiniti M sedan was redesigned for the 2011 model year and renamed the M37 and M56 at that time because the sizes of the two available engines were increased. A hybrid-electric version of the M, known as the M Hybrid, was introduced in the 2012 model year. Beginning with 2013 models, design changes were made to the seat-mounted side torso airbags to improve occupant protection in side impact crashes.
Two side tests of the M were conducted by Nissan, one a 2011 M37x and the other a 2013 M56x as part of side crash test verification. These cars are rated separately, except that the structure ratings for both vehicles are based on both tests, as are rear dummy injury and head protection ratings, because no changes were made to the rear occupant compartment.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
Measures of occupant compartment intrusion on driver side
Test ID | VTS0910 | VTS1223 |
---|---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -11.0 | -10.5 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | VTS1223 |
---|---|
Head HIC-15 | 267 |
Neck | |
Tension (kN) | 0.9 |
Compression (kN) | 0.4 |
Shoulder | |
Lateral deflection (mm) | 34 |
Lateral force (kN) | 1.5 |
Torso | |
Maximum deflection (mm) | 30 |
Average deflection (mm) | 25 |
Maximum deflection rate (m/s) | 2.97 |
Maximum viscous criterion (m/s) | 0.31 |
Pelvis | |
Iliac force (kN) | 1.7 |
Acetabulum force (kN) | 1.9 |
Combined force (kN) | 3.4 |
Left femur | |
L-M force (kN) | 0.4 |
L-M moment (Nm) | 28 |
A-P moment (Nm) | -93 |
Passenger injury measures
Test ID | VTS0910 | VTS1223 |
---|---|---|
Head HIC-15 | 194 | 176 |
Neck | ||
Tension (kN) | 0.2 | 0.1 |
Compression (kN) | 0.8 | 0.9 |
Shoulder | ||
Lateral deflection (mm) | 48 | 52 |
Lateral force (kN) | 2.0 | 2.0 |
Torso | ||
Maximum deflection (mm) | 32 | 35 |
Average deflection (mm) | 20 | 22 |
Maximum deflection rate (m/s) | 3.56 | 3.95 |
Maximum viscous criterion (m/s) | 0.40 | 0.52 |
Pelvis | ||
Iliac force (kN) | 0.5 | 0.5 |
Acetabulum force (kN) | 1.5 | 1.3 |
Combined force (kN) | 1.9 | 1.7 |
Left femur | ||
L-M force (kN) | 0.4 | 0.4 |
L-M moment (Nm) | 34 | 25 |
A-P moment (Nm) | 68 | 76 |
Roof strength
Rating applies to 2014-19 models
Tested vehicle: 2011 Infiniti M37 4-door
Rating does not apply to V8 4-wheel drive models. Rating of these models is Acceptable.
Overall evaluation | |
---|---|
Curb weight | 3,821 lbs |
Peak force | 16,085 lbs |
Strength-to-weight ratio | 4.21 |
Head restraints & seats
Seat type: Power leather seat
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | Power leather seat |
---|---|
Geometry | |
Backset (mm) | 51 |
Distance below top of head (mm) | 54 |
Seat design parameters | |
Pass/fail | Pass |
Max T1 acceleration (g) | 11.8 |
Head contact time (ms) | 68 |
Force rating | 1 |
Neck forces | |
Max neck shear force (N) | 22 |
Max neck tension (N) | 706 |
How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.
