Small overlap front: driver-side
Rating applies to 2011-14 models

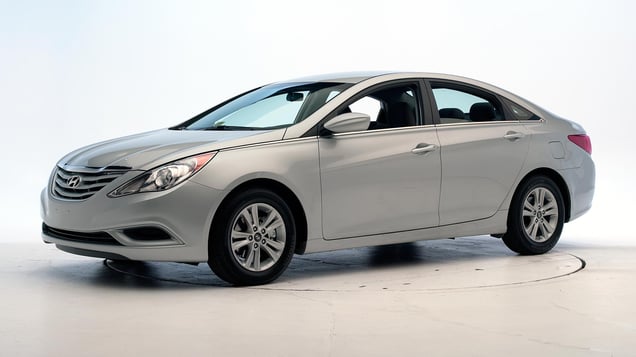

Tested vehicle: 2012 Hyundai Sonata GLS 4-door
The Hyundai Sonata was redesigned for the 2011 model year. Hyundai subsequently made several modificatons to the front structure of the car since its introduction in early 2010, with the final change effective as of September 2010. Moderate overlap frontal tests conducted before and after the changes did not substantially affect the ratings, and Hyundai has stated the same is true for small overlap frontal tests, in which much of the front structure is bypassed by crash forces.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Driver restraints and dummy kinematics The dummy’s head contacted the frontal airbag but slid off the left side, leaving the head vulnerable to contact with forward side structure. The side curtain airbag did not deploy, also leaving the dummy’s head vulnerable to contact with side structure and outside objects. |
Action shot taken during the small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was not maintained well.
The dummy’s head contacted the frontal airbag but then slid off the left side. The side curtain airbag did not deploy.
The door hinge pillar and parking brake was pushed back by the wheel and tire, and this intrusion contributed to a significant risk of injury to the left lower leg.
Measures of occupant compartment intrusion on driver side
Test ID | CEN1219 |
---|---|
Lower occupant compartment | |
Lower hinge pillar max (cm) | 24 |
Footrest (cm) | 15 |
Left toepan (cm) | 10 |
Brake pedal (cm) | 6 |
Parking brake (cm) | 28 |
Rocker panel lateral average (cm) | 8 |
Upper occupant compartment | |
Steering column | 5 |
Upper hinge pillar max (cm) | 15 |
Upper dash (cm) | 18 |
Lower instrument panel (cm) | 16 |
Driver injury measures
Test ID | CEN1219 |
---|---|
Head | |
HIC-15 | 123 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.4 |
Extension bending moment (Nm) | 15 |
Maximum Nij | 0.25 |
Chest maximum compression (mm) | 27 |
Femur (kN) | |
Left | 1.6 |
Right | 2.0 |
Knee displacement (mm) | |
Left | 7 |
Right | 3 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 1.09 |
Right | 0.46 |
Tibia axial force (kN) | |
Left | 2.4 |
Right | 1.8 |
Foot acceleration (g) | |
Left | 130 |
Right | 90 |
Moderate overlap front: original test
Rating applies to 2011-14 models
Tested vehicle: 2011 Hyundai Sonata GLS 4-door
The Hyundai Sonata was redesigned for the 2011 model year. Hyundai subsequently made several modificatons to the front structure of the car since its introduction in early 2010, with the final change effective as of September 2010. Frontal ratings are assigned by the Institute based on two tests conducted by Hyundai as part of frontal crash test verification, before and after all structural changes were made. Because the frontal ratings were not substantially affected by the changes, the ratings are based on both tests.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTF0909 | VTF1022 |
---|---|---|
Footwell intrusion | ||
Footrest (cm) | 4 | 2 |
Left (cm) | 8 | 9 |
Center (cm) | 10 | 9 |
Right (cm) | 7 | 5 |
Brake pedal (cm) | 11 | 10 |
Instrument panel rearward movement | ||
Left (cm) | 1 | 1 |
Right (cm) | 1 | 1 |
Steering column movement | ||
Upward (cm) | 0 | 2 |
Rearward (cm) | -4 | 3 |
A-pillar rearward movement (cm) | 1 | 1 |
Driver injury measures
Test ID | VTF0909 | VTF1022 |
---|---|---|
Head | ||
HIC-15 | 175 | 203 |
Peak gs at hard contact | no contact | no contact |
Neck | ||
Tension (kN) | 1.3 | 1.2 |
Extension bending moment (Nm) | 31 | 13 |
Maximum Nij | 0.25 | 0.26 |
Chest maximum compression (mm) | 25 | 33 |
Legs | ||
Femur force - left (kN) | 0.2 | 0.2 |
Femur force - right (kN) | 3.9 | 1.6 |
Knee displacement - left (mm) | 0 | 0 |
Knee displacement - right (mm) | 4 | 2 |
Maximum tibia index - left | 0.27 | 0.34 |
Maximum tibia index - right | 0.54 | 0.36 |
Tibia axial force - left (kN) | 2.4 | 1.7 |
Tibia axial force - right (kN) | 2.5 | 1.6 |
Foot acceleration (g) | ||
Left | 86 | 60 |
Right | 114 | 75 |
Side: original test
Rating applies to 2011-14 models
Tested vehicle: 2011 Hyundai Sonata GLS 4-door with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
The Hyundai Sonata was redesigned for the 2011 model year.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
Test ID | CES1001 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -11.0 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | CES1001 |
---|---|
Head HIC-15 | 455 |
Neck | |
Tension (kN) | 1.2 |
Compression (kN) | 0.3 |
Shoulder | |
Lateral deflection (mm) | 42 |
Lateral force (kN) | 1.7 |
Torso | |
Maximum deflection (mm) | 33 |
Average deflection (mm) | 31 |
Maximum deflection rate (m/s) | 2.90 |
Maximum viscous criterion (m/s) | 0.41 |
Pelvis | |
Iliac force (kN) | 1.7 |
Acetabulum force (kN) | 2.5 |
Combined force (kN) | 4.2 |
Left femur | |
L-M force (kN) | 1.1 |
L-M moment (Nm) | 212 |
A-P moment (Nm) | 73 |
Passenger injury measures
Test ID | CES1001 |
---|---|
Head HIC-15 | 166 |
Neck | |
Tension (kN) | 0.3 |
Compression (kN) | 1.5 |
Shoulder | |
Lateral deflection (mm) | 28 |
Lateral force (kN) | 1.4 |
Torso | |
Maximum deflection (mm) | 37 |
Average deflection (mm) | 32 |
Maximum deflection rate (m/s) | 3.83 |
Maximum viscous criterion (m/s) | 0.57 |
Pelvis | |
Iliac force (kN) | 0.7 |
Acetabulum force (kN) | 1.6 |
Combined force (kN) | 2.1 |
Left femur | |
L-M force (kN) | 0.3 |
L-M moment (Nm) | 151 |
A-P moment (Nm) | -22 |
Roof strength
Rating applies to 2011-14 models
Tested vehicle: 2011 Hyundai Sonata GLS 4-door
Overall evaluation | |
---|---|
Curb weight | 3,215 lbs |
Peak force | 15,736 lbs |
Strength-to-weight ratio | 4.89 |
Head restraints & seats
Seat type: Power cloth seat AHR
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | Power cloth seat AHR |
---|---|
Geometry | |
Backset (mm) | 44 |
Distance below top of head (mm) | 36 |
Seat design parameters | |
Pass/fail | Pass |
Max T1 acceleration (g) | 12.3 |
Head contact time (ms) | 60 |
Force rating | 1 |
Neck forces | |
Max neck shear force (N) | 43 |
Max neck tension (N) | 489 |
How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.
