Top Safety Pick +

2019 Hyundai Elantra

small car / 4-door sedan

Award applies only to vehicles with optional front crash prevention and specific headlights built after September 2018

2019 Hyundai Elantra 4-door sedan

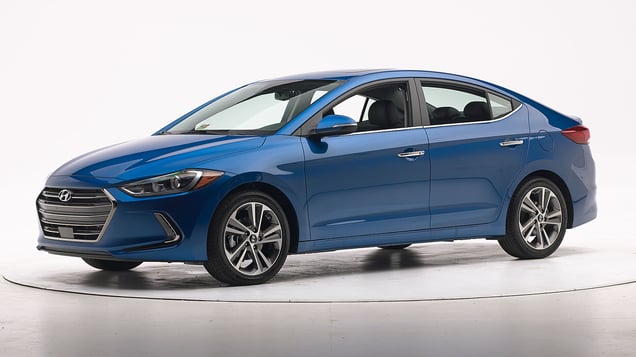

2017 Hyundai Elantra shown

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front
Side
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights (varies by trim/option)
Front crash prevention
Optional system
Superior
Optional system
Not tested

Child seat anchors

LATCH ease of use

Other available safety features

  • Standard daytime running lights
  • Optional blind spot detection
  • Optional lane departure warning
  • Optional lane departure prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2017-19 models built after March 2016

Tested vehicle: 2017 Hyundai Elantra SE 4-door
The Hyundai Elantra was redesigned for the 2017 model year and the Elantra GT was redesigned for the 2018 model year. Beginning with 2017 Elantra models built after March 2016 and applicable to all Elantra GT models, the structure was reinforced at the junction between the door sill and hinge pillar and the driver frontal airbag was modified to improve occupant protection in small overlap crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)

Overall evaluation
Structure and safety cage
Injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained very well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

Forces during the crash contributed to a moderate risk of injury to the dummy's left lower leg.

Small overlap front: passenger-side

Rating applies to 2019 models built after September 2018

Tested vehicle: 2019 Hyundai Elantra SE 4-door

The Hyundai Elantra was redesigned for the 2017 model year. Beginning with 2018 models built after December 2017, the passenger-side front door hinge pillar and door sill were reinforced to improve occupant protection in passenger-side small overlap frontal crashes. Further structural improvements in the same area were added beginning with 2019 models built after September 2018. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)

Passenger-side small overlap frontal ratings are assigned by the Institute based a test conducted by Hyundai on a 2019 Elantra with all modifications as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
The dummy’s head contacted the frontal airbag but slid off toward the right side, leaving the head vulnerable to contact with forward structure. The side curtain airbag deployed and has sufficient forward coverage to protect the head from contact with side structure and outside objects. The side torso airbag also deployed.
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Rating applies to 2018-19 models built after December 2017 and before October 2018

Tested vehicle: 2018 Hyundai Elantra SE 4-door

The Hyundai Elantra was redesigned for the 2017 model year. Beginning with 2018 models built after December 2017, the passenger-side front door hinge pillar and door sill were reinforced to improve occupant protection in passenger-side small overlap frontal crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)

Passenger-side small overlap frontal ratings are assigned by the Institute based a test conducted by Hyundai as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
The dummy’s head contacted the frontal airbag but slid off toward the right side, leaving the head vulnerable to contact with forward structure. The side curtain airbag deployed and has sufficient forward coverage to protect the head from contact with side structure and outside objects. The side torso airbag also deployed.
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Moderate overlap front

Rating applies to 2017-19 models

Tested vehicle: 2017 Hyundai Elantra SE 4-door
The Hyundai Elantra was redesigned for the 2017 model year and the Elantra GT was redesigned for the 2018 model year. Moderate overlap frontal ratings are assigned by the Institute based on two tests of the Elantra conducted by Hyundai as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Restraints and dummy kinematics

Side

Rating applies to 2017-19 models

Tested vehicle: 2017 Hyundai Elantra SE 4-door
The Hyundai Elantra was redesigned for the 2017 model year and the Elantra GT was redesigned for the 2018 model year. Side ratings are assigned by the Institute based on a test conducted by Hyundai as part of side crash test verification.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Head protection

Roof strength

Rating applies to 2017-19 models

Tested vehicle: 2017 Hyundai Elantra SE 4-door

Overall evaluation
Curb weight 2,826 lbs
Peak force 15,369 lbs
Strength-to-weight ratio 5.44

Head restraints & seats

Rating applies to 2017-19 models

Seat type: Manual cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry

Front crash prevention

Ratings are given for 2 different trim variations available on this vehicle.

System details

  • Optional Forward Collision-Assist with Pedestrian Detection

Package name

  • Optional Ultimate Package

Applies to 2019 models

Overall evaluation

  • This system meets the requirements for forward collision warning.
  • In the 12 mph IIHS test, this vehicle avoided a collision.
  • In the 25 mph IIHS test, impact speed was reduced by 22 mph.
Superior
Superior
with optional equipment

System details

  • Optional Forward Collision-Avoidance Assist

Package name

  • Optional by trim (available on SEL, Value Edition, Eco, Sport, and Limited)

Applies to 2019 models

Overall evaluation

  • This system does not meet the requirements for forward collision warning.
  • Autobrake not tested.

How front crash prevention is evaluated

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

  • Limited trim
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating

Low beams
On the straightaway, visibility was good on the left side of the road and fair on the right side. On curves, visibility was good on the gradual left and both right curves and fair on the sharp left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was good on both right curves and fair on both left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and on both left curves.

Trim level(s)

  • SE trim
  • SEL trim
  • Value Edition trim
  • Eco trim
Low-beam headlight type Halogen projector
High-beam headlight type Halogen projector
Curve-adaptive? No
High-beam assist? No
Overall rating

Low beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.

How headlights are evaluated

Child seat anchors

Applies to 2017-19 models

Overall evaluation
Vehicle trim SE
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

1 2 3
G Good
A Acceptable
M Marginal
P Poor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors

How child seat anchors are evaluated
