Top Safety Pick

2018 Honda Pilot

midsize SUV / 4-door SUV

Award applies only to vehicles with optional front crash prevention and specific headlights

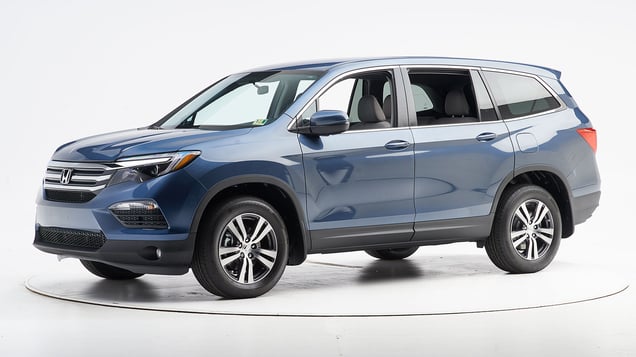

2018 Honda Pilot 4-door SUV

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front
Side
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights (varies by trim/option)
Front crash prevention
Optional system
Superior

Child seat anchors

LATCH ease of use

Other available safety features

  • Standard daytime running lights
  • Optional blind spot detection
  • Optional lane departure warning
  • Optional lane departure prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2016-19 models

Tested vehicle: 2016 Honda Pilot EX 4-door 4wd

The Honda Pilot was redesigned for the 2016 model year, and the Honda Passport was introduced in the 2019 model year. The Passport is derived from the Pilot, but it has a slightly shorter overall length and only two rows of seats instead of three. Ratings apply to both the Pilot and Passport.

Overall evaluation
Structure and safety cage
Injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

The driver's space was maintained well, and risk of injuries to the dummy's legs and feet was low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1521
Lower occupant compartment
Lower hinge pillar max (cm) 4
Footrest (cm) 8
Left toepan (cm) 7
Brake pedal (cm) 5
Parking brake (cm) 10
Rocker panel lateral average (cm) 2
Upper occupant compartment
Steering column 0
Upper hinge pillar max (cm) 3
Upper dash (cm) 4
Lower instrument panel (cm) 4

Driver injury measures

Test ID CEN1521
Head
HIC-15 243
Peak gs at hard contact no contact
Neck
Tension (kN) 1.2
Extension bending moment (Nm) 17
Maximum Nij 0.30
Chest maximum compression (mm) 24
Femur (kN)
Left 0.1
Right 0.5
Knee displacement (mm)
Left 0
Right 3
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.41
Right 0.41
Tibia axial force (kN)
Left 1.8
Right 1.5
Foot acceleration (g)
Left 80
Right 62

How the driver-side small overlap front test is conducted

Small overlap front: passenger-side

Rating applies to 2016-19 models

Tested vehicle: 2018 Honda Pilot EX 4-door 4wd

The Honda Pilot was redesigned for the 2016 model year, and the Honda Passport was introduced in the 2019 model year. The Passport is derived from the Pilot, but it has a slightly shorter overall length and only two rows of seats instead of three. Ratings apply to both the Pilot and Passport.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
The dummy’s head barely contacted the frontal airbag before sliding off the right side, allowing the head to move far enough forward to hit the dashboard. The side curtain airbag deployed and has sufficient forward coverage to protect the head from contact with side structure and outside objects. The side torso airbag also deployed.
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the passenger-side small overlap frontal crash test.

The dummy's position in relation to the door frame and dashboard after the crash test indicates that the passenger’s survival space was maintained well.

The dummy’s head slid off the right side of the frontal airbag and moved far enough forward to hit the dashboard hard.

Forces on the right lower leg were high enough to indicate a moderate risk of injury.

Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID CEP1808
Lower occupant compartment
Lower hinge pillar max (cm) 5
Footrest (cm) 11
Right toepan (cm) 7
Center toepan (cm) 4
Rocker panel lateral average (cm) 3
Upper occupant compartment
Center dash (cm) 5
Upper hinge pillar max (cm) 4
Upper dash (cm) 6
Right lower dash (cm) 5

Passenger injury measures

Test ID CEP1808
Head
HIC-15 444
Peak gs at hard contact 77
Neck
Tension (kN) 1.3
Extension bending moment (Nm) 17
Maximum Nij 0.22
Chest maximum compression (mm) 16
Femur (kN)
Left 0.7
Right 2.0
Knee displacement (mm)
Left 4
Right 8
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.35
Right 0.85
Tibia axial force (kN)
Left 0.9
Right 1.4
Foot acceleration (g)
Left 87
Right 30

Driver injury measures

Test ID CEP1808
Head
HIC-15 65
Peak gs at hard contact no contact
Neck
Tension (kN) 0.8
Extension bending moment (Nm) 10
Maximum Nij 0.19
Chest maximum compression (mm) 26
Femur (kN)
Left 0.1
Right 0.1
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.47
Right 0.18
Tibia axial force (kN)
Left 0.3
Right 0.7
Foot acceleration (g)
Left 53
Right 56

How the passenger-side small overlap front test is conducted

Moderate overlap front

Rating applies to 2016-19 models

Tested vehicle: 2016 Honda Pilot Touring 4-door 4wd

The Honda Pilot was redesigned for the 2016 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Honda as part of frontal crash test verification. The ratings also apply to the Honda Passport, introduced in the 2019 model year. The Passport is derived from the Pilot, but it has a slightly shorter overall length and only two rows of seats instead of three.

Overall evaluation
Structure and safety cage
Injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1501
Footwell intrusion
Footrest (cm) 2
Left (cm) 3
Center (cm) 3
Right (cm) 4
Brake pedal (cm) 9
Instrument panel rearward movement
Left (cm) 0
Right (cm) 0
Steering column movement
Upward (cm) 1
Rearward (cm) -5
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1501
Head
HIC-15 145
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 46
Maximum Nij 0.24
Chest maximum compression (mm) 25
Legs
Femur force - left (kN) 0.2
Femur force - right (kN) 0.2
Knee displacement - left (mm) 0
Knee displacement - right (mm) 0
Maximum tibia index - left 0.46
Maximum tibia index - right 0.48
Tibia axial force - left (kN) 1.4
Tibia axial force - right (kN) 1.3
Foot acceleration (g)
Left 61
Right 97

How the moderate overlap front test is conducted

Side

Rating applies to 2016-19 models

Tested vehicle: 2016 Honda Pilot Touring 4-door 4wd

The Honda Pilot was redesigned for the 2016 model year. Side ratings are assigned by the Institute based on a test conducted by Honda as part of side crash test verification. The ratings also apply to the Honda Passport, introduced in the 2019 model year. The Passport is derived from the Pilot, but it has a slightly shorter overall length and only two rows of seats instead of three.

Rating applies to 2016-19 models

Tested vehicle:2016 Honda Pilot Touring 4-door 4wd

The Honda Pilot was redesigned for the 2016 model year. Side ratings are assigned by the Institute based on a test conducted by Honda as part of side crash test verification. The ratings also apply to the Honda Passport, introduced in the 2019 model year. The Passport is derived from the Pilot, but it has a slightly shorter overall length and only two rows of seats instead of three.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1501
B-pillar to longitudinal centerline of driver's seat (cm) -17.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1501
Head HIC-15 147
Neck
Tension (kN) 0.7
Compression (kN) 0.4
Shoulder
Lateral deflection (mm) 28
Lateral force (kN) 1.4
Torso
Maximum deflection (mm) 26
Average deflection (mm) 23
Maximum deflection rate (m/s) 2.27
Maximum viscous criterion (m/s) 0.25
Pelvis
Iliac force (kN) 2.8
Acetabulum force (kN) 0.9
Combined force (kN) 3.3
Left femur
L-M force (kN) 0.4
L-M moment (Nm) 37
A-P moment (Nm) -22

Passenger injury measures

Test ID VTS1501
Head HIC-15 122
Neck
Tension (kN) 0.6
Compression (kN) 0.1
Shoulder
Lateral deflection (mm) 34
Lateral force (kN) 2.0
Torso
Maximum deflection (mm) 38
Average deflection (mm) 29
Maximum deflection rate (m/s) 3.62
Maximum viscous criterion (m/s) 0.61
Pelvis
Iliac force (kN) 0.1
Acetabulum force (kN) 1.7
Combined force (kN) 1.7
Left femur
L-M force (kN) 1.1
L-M moment (Nm) 111
A-P moment (Nm) 19

How the side crash test is conducted

Roof strength

Rating applies to 2016-19 models

Tested vehicle: 2016 Honda Pilot EX 4-door 2wd

Overall evaluation
Curb weight 4,219 lbs
Peak force 22,025 lbs
Strength-to-weight ratio 5.22

How the roof strength test is conducted

Head restraints & seats

Rating applies to 2016-19 models

Seat type: Power cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Power cloth seat
Geometry
Backset (mm) 50
Distance below top of head (mm) 35
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 13.0
Head contact time (ms) 67
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 470

How the head restraint & seat test is conducted

Front crash prevention

System details

  • Optional Collision Mitigation Braking System

Package name

  • Optional Honda Sensing Package

Applies to 2016-18 models

Overall evaluation

  • This system meets the requirements for forward collision warning.
  • In the 12 mph IIHS test, this vehicle avoided a collision.
  • In the 25 mph IIHS test, impact speed was reduced by 12 mph.
Superior
Superior
with optional equipment

How front crash prevention is evaluated

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

  • Elite trim
Low-beam headlight type LED projector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit Some glare

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on the gradual right curve, fair on the sharp right and sharp left curves, and inadequate on the gradual left curve.

The low beams created some glare.

High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was good on the gradual right curve and fair on the sharp right and both left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway, on both left curves and on both right curves.

Technical measurements for this test
Trim level(s)
  • Elite trim
Low-beam headlight type LED projector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2016-19 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 105.8 m 2.7 %
Straightaway left edge 55.1 m 2.7 %
250m radius right curve, right edge 65.5 m None
250m radius left curve, right edge 53.8 m None
150m radius right curve, right edge 52.8 m None
150m radius left curve, left edge 50.3 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 167.9 m
Straightaway left edge 125.5 m
250m radius right curve, right edge 75.6 m
250m radius left curve, left edge 71.5 m
150m radius right curve, right edge 58.7 m
150m radius left curve, left edge 58.3 m

Trim level(s)

  • LX trim
  • EX trim
  • EX-L trim
  • Touring trim
Low-beam headlight type Halogen projector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? No
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination

Low beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was inadequate in all 4 tests.

Technical measurements for this test
Trim level(s)
  • LX trim
  • EX trim
  • EX-L trim
  • Touring trim
Low-beam headlight type Halogen projector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? No
Overall rating
Applies to 2016-18 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 85.9 m None
Straightaway left edge 38.2 m None
250m radius right curve, right edge 51.5 m None
250m radius left curve, left edge 39.4 m None
150m radius right curve, right edge 39.4 m None
150m radius left curve, left edge 34.7 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 148.1 m
Straightaway left edge 128.9 m
250m radius right curve, right edge 63.7 m
250m radius left curve, left edge 63.0 m
150m radius right curve, right edge 47.5 m
150m radius left curve, left edge 49.5 m

How headlights are evaluated

Child seat anchors

Applies to 2016-19 models

Overall evaluation
Vehicle trim EX
Seat type cloth

This vehicle has 4 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 2 additional seating positions with a tether anchor only.

1 2 3 6 4 5
G Good
A Acceptable
M Marginal
P Poor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
difficult to maneuver around anchors
3
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
4
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
5
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
none available
6
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
none available
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 17
Clearance angle (degrees) 71
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 11
Clearance angle (degrees) 70
Tether anchor
Location Bottom seatback
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
Yes

Seat position 22

2

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 17
Clearance angle (degrees) 68
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 15
Clearance angle (degrees) 48
Tether anchor
Location Bottom seatback
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
Yes

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 16
Clearance angle (degrees) 71
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 20
Clearance angle (degrees) 73
Tether anchor
Location Bottom seatback
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
Yes

Seat position 31

6

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
No

Seat position 32

5

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
No

Seat position 33

4

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 26
Clearance angle (degrees) 75
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 23
Clearance angle (degrees) 74
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
No

How child seat anchors are evaluated
