2017 Honda HR-V

small SUV / 4-door SUV

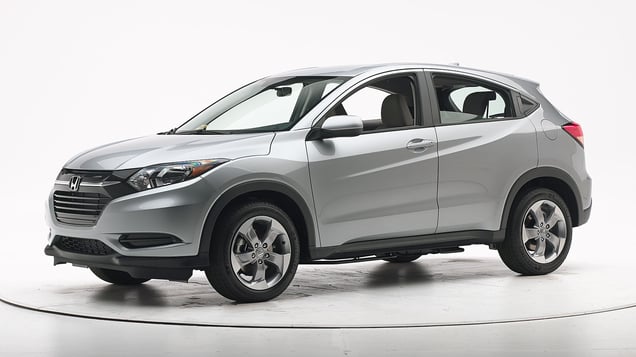

2017 Honda HR-V 4-door SUV

Crashworthiness

Rating overview
Small overlap front: driver-side
Moderate overlap front
Side
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights
Front crash prevention
Not available

Child seat anchors

LATCH ease of use

Other available safety features

  • Standard daytime running lights

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2016-18 models

Tested vehicle: 2016 Honda HR-V LX 4-door 4wd

The Honda HR-V was introduced in the 2016 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
The dummy’s head contacted the frontal airbag but moved too far to the left side, leaving the head vulnerable to contact with forward structure. Additionally, the seat belt allowed excessive forward excursion of the dummy’s head and torso. The side curtain airbag deployed and has sufficient forward coverage to protect the head from contact with side structure and outside objects. The side torso airbag also deployed.

Action shot taken during the small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well.

The seat belt allowed too much forward movement of the dummy to the extent that its head approached the intruding A-pillar.

The driver's space was maintained reasonably well, and risk of injuries to the dummy's legs and feet was low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1532
Lower occupant compartment
Lower hinge pillar max (cm) 9
Footrest (cm) 10
Left toepan (cm) 6
Brake pedal (cm) 4
Parking brake (cm)
Rocker panel lateral average (cm) 2
Upper occupant compartment
Steering column 1
Upper hinge pillar max (cm) 11
Upper dash (cm) 10
Lower instrument panel (cm) 7

Driver injury measures

Test ID CEN1532
Head
HIC-15 185
Peak gs at hard contact no contact
Neck
Tension (kN) no data
Extension bending moment (Nm) no data
Maximum Nij 0.00
Chest maximum compression (mm) 20
Femur (kN)
Left 3.7
Right 0.6
Knee displacement (mm)
Left 1
Right 0
Knee-thigh-hip injury risk (%)
Left 1
Right 0
Maximum tibia index
Left 0.56
Right 0.48
Tibia axial force (kN)
Left 2.4
Right 1.5
Foot acceleration (g)
Left 113
Right 97

How the driver-side small overlap front test is conducted

Moderate overlap front

Rating applies to 2016-18 models

Tested vehicle: 2016 Honda HR-V EX 4-door 4wd

The Honda HR-V was introduced in the 2016 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Action shot taken during the moderate overlap frontal crash test.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained very well.

Smeared greasepaint shows where the driver dummy's head was protected from hitting hard structures during rebound by the side curtain airbag.

Intrusion into the driver's space was minimal, and all leg and foot injury measures were low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF1502
Footwell intrusion
Footrest (cm) 2
Left (cm) 7
Center (cm) 7
Right (cm) 6
Brake pedal (cm) 1
Instrument panel rearward movement
Left (cm) 0
Right (cm) -1
Steering column movement
Upward (cm) -1
Rearward (cm) -4
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID CEF1502
Head
HIC-15 397
Peak gs at hard contact no contact
Neck
Tension (kN) no data
Extension bending moment (Nm) no data
Maximum Nij 0.00
Chest maximum compression (mm) 20
Legs
Femur force - left (kN) 0.3
Femur force - right (kN) 0.3
Knee displacement - left (mm) 1
Knee displacement - right (mm) 0
Maximum tibia index - left 0.30
Maximum tibia index - right 0.40
Tibia axial force - left (kN) 1.5
Tibia axial force - right (kN) 1.2
Foot acceleration (g)
Left 56
Right 108

How the moderate overlap front test is conducted

Side

Rating applies to 2017-19 models built after March 2017

Tested vehicle: 2017 Honda HR-V LX 4-door 4wd

The Honda HR-V was introduced in the 2016 model year. Beginning with 2017 models built after March 2017, the structure was reinforced at the junction between the B-pillar and door sill to improve occupant protection in side impact crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

View of the 2017 Honda HR-V just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES1709
B-pillar to longitudinal centerline of driver's seat (cm) -18.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES1709
Head HIC-15 149
Neck
Tension (kN) 0.7
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 38
Lateral force (kN) 1.6
Torso
Maximum deflection (mm) 31
Average deflection (mm) 26
Maximum deflection rate (m/s) 3.09
Maximum viscous criterion (m/s) 0.45
Pelvis
Iliac force (kN) 0.8
Acetabulum force (kN) 1.0
Combined force (kN) 1.8
Left femur
L-M force (kN) 0.8
L-M moment (Nm) 135
A-P moment (Nm) 30

Passenger injury measures

Test ID CES1709
Head HIC-15 177
Neck
Tension (kN) 0.3
Compression (kN) 1.3
Shoulder
Lateral deflection (mm) 26
Lateral force (kN) 1.0
Torso
Maximum deflection (mm) 23
Average deflection (mm) 16
Maximum deflection rate (m/s) 2.11
Maximum viscous criterion (m/s) 0.19
Pelvis
Iliac force (kN) 0.3
Acetabulum force (kN) 1.5
Combined force (kN) 1.5
Left femur
L-M force (kN) 1.6
L-M moment (Nm) 150
A-P moment (Nm) -52

Rating applies to 2016-17 models built before April 2017

Tested vehicle: 2016 Honda HR-V EX 4-door 4wd

The Honda HR-V was introduced in the 2016 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

View of the 2016 Honda HR-V and barrier just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment. The lower B-pillar was torn away from the door sills, contributing to greatly increased structural intrusion.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES1505
B-pillar to longitudinal centerline of driver's seat (cm) 2.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES1505
Head HIC-15 217
Neck
Tension (kN) 1.2
Compression (kN) 0.3
Shoulder
Lateral deflection (mm) 21
Lateral force (kN) 1.0
Torso
Maximum deflection (mm) 30
Average deflection (mm) 27
Maximum deflection rate (m/s) 2.90
Maximum viscous criterion (m/s) 0.45
Pelvis
Iliac force (kN) 4.0
Acetabulum force (kN) 2.3
Combined force (kN) 6.3
Left femur
L-M force (kN) 1.4
L-M moment (Nm) 144
A-P moment (Nm) -41

Passenger injury measures

Test ID CES1505
Head HIC-15 184
Neck
Tension (kN) 0.2
Compression (kN) 0.8
Shoulder
Lateral deflection (mm) 26
Lateral force (kN) 1.5
Torso
Maximum deflection (mm) 17
Average deflection (mm) 12
Maximum deflection rate (m/s) 1.55
Maximum viscous criterion (m/s) 0.11
Pelvis
Iliac force (kN) 0.4
Acetabulum force (kN) 2.2
Combined force (kN) 2.2
Left femur
L-M force (kN) 0.7
L-M moment (Nm) 74
A-P moment (Nm) -46

How the side crash test is conducted

Roof strength

Rating applies to 2016-19 models

Tested vehicle: 2016 Honda HR-V LX 4-door 4wd

Overall evaluation
Curb weight 3,035 lbs
Peak force 15,604 lbs
Strength-to-weight ratio 5.14

How the roof strength test is conducted

Head restraints & seats

Rating applies to 2016-19 models

Seat type: Manual cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Manual cloth seat
Geometry
Backset (mm) 36
Distance below top of head (mm) 16
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 13.8
Head contact time (ms) 56
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 228

How the head restraint & seat test is conducted

Headlights

Trim level(s)

  • All trims
Low-beam headlight type Halogen reflector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? No
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination

Low beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was inadequate in all 4 tests.

Technical measurements for this test
Trim level(s)
  • All trims
Low-beam headlight type Halogen reflector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? No
Overall rating
Applies to 2016-18 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 58.7 m None
Straightaway left edge 29.9 m None
250m radius right curve, right edge 43.9 m None
250m radius left curve, left edge 36.9 m None
150m radius right curve, right edge 39.2 m None
150m radius left curve, left edge 30.9 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 120.2 m
Straightaway left edge 107.7 m
250m radius right curve, right edge 61.0 m
250m radius left curve, left edge 56.4 m
150m radius right curve, right edge 44.3 m
150m radius left curve, left edge 42.9 m

How headlights are evaluated

Child seat anchors

Applies to 2016-18 models

Overall evaluation
Vehicle trim EX
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

1 2 3
G Good
A Acceptable
M Marginal
P Poor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
too deep in seat
too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
too deep in seat
too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 40
Clearance angle (degrees) 75
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 40
Clearance angle (degrees) 68
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
No

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Roof
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
No

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 40
Clearance angle (degrees) 72
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 40
Clearance angle (degrees) 76
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
No

Applies to 2016-18 models

Overall evaluation
Vehicle trim LX
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

1 2 3
G Good
A Acceptable
M Marginal
P Poor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
too deep in seat
too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
too deep in seat
too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 40
Clearance angle (degrees) 56
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 40
Clearance angle (degrees) 65
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
No

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Roof
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
No

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 40
Clearance angle (degrees) 64
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 40
Clearance angle (degrees) 68
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
No

How child seat anchors are evaluated
