2015 Honda CR-Z

small car / 2-door hatchback

2015 Honda CR-Z 2-door hatchback

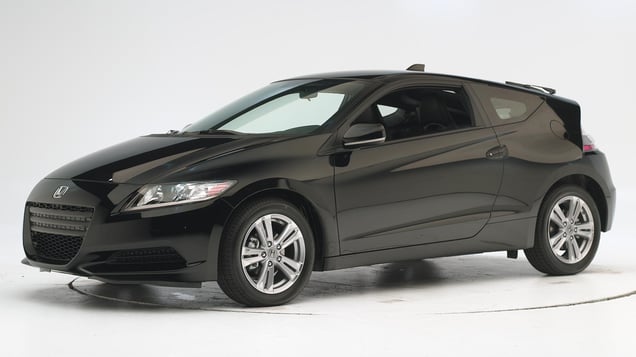

2012 Honda CR-Z shown

Crashworthiness

Rating overview
Moderate overlap front
Side
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Front crash prevention
Not available

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Moderate overlap front

Rating applies to 2011-16 models

Tested vehicle: 2011 Honda CR-Z 2-door

The Honda CR-Z was introduced in the 2011 model year. The CR-Z seats only two people; there is no rear seat.

Overall evaluation
Structure and safety cage
Injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Restraints and dummy kinematics

Action shot taken during the frontal offset crash test.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.

Smeared greasepaint indicates where the dummy's head contacted the side curtain airbag during rebound.

Intrusion into the driver's space was minimal, and all leg and foot injury measures were low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF1105
Footwell intrusion
Footrest (cm) 3
Left (cm) 8
Center (cm) 11
Right (cm) 5
Brake pedal (cm) 10
Instrument panel rearward movement
Left (cm) -1
Right (cm) -1
Steering column movement
Upward (cm) 1
Rearward (cm) -3
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID CEF1105
Head
HIC-15 474
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 12
Maximum Nij 0.28
Chest maximum compression (mm) 31
Legs
Femur force - left (kN) 1.2
Femur force - right (kN) 0.2
Knee displacement - left (mm) 0
Knee displacement - right (mm) 0
Maximum tibia index - left 0.30
Maximum tibia index - right 0.38
Tibia axial force - left (kN) 2.7
Tibia axial force - right (kN) 2.0
Foot acceleration (g)
Left 85
Right 71

How the moderate overlap front test is conducted

Side

Rating applies to 2011-16 models

Tested vehicle: 2011 Honda CR-Z 2-door with standard front head curtain airbags and standard front seat-mounted torso airbags

The Honda CR-Z was introduced in the 2011 model year. The CR-Z seats only two people; there is no rear seat.

Rating applies to 2011-16 models

Tested vehicle:2011 Honda CR-Z 2-door

The Honda CR-Z was introduced in the 2011 model year. The CR-Z seats only two people; there is no rear seat.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

View of the vehicle and barrier just after the crash test.

View of the vehicle after the crash with the door removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Forces on the left femur were elevated as the door interior panel and armrest intruded into the driver dummy's space.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES1101
B-pillar to longitudinal centerline of driver's seat (cm) -17.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES1101
Head HIC-15 286
Neck
Tension (kN) 0.8
Compression (kN) 0.4
Shoulder
Lateral deflection (mm) 27
Lateral force (kN) 1.3
Torso
Maximum deflection (mm) 38
Average deflection (mm) 32
Maximum deflection rate (m/s) 4.12
Maximum viscous criterion (m/s) 0.57
Pelvis
Iliac force (kN) 0.7
Acetabulum force (kN) 2.1
Combined force (kN) 2.7
Left femur
L-M force (kN) 1.6
L-M moment (Nm) 329
A-P moment (Nm) 117

Passenger injury measures

Test ID CES1101
Head HIC-15
Neck
Tension (kN)
Compression (kN)
Shoulder
Lateral deflection (mm)
Lateral force (kN)
Torso
Maximum deflection (mm)
Average deflection (mm)
Maximum deflection rate (m/s)
Maximum viscous criterion (m/s)
Pelvis
Iliac force (kN)
Acetabulum force (kN)
Combined force (kN)
Left femur
L-M force (kN)
L-M moment (Nm)
A-P moment (Nm)

How the side crash test is conducted

Roof strength

Rating applies to 2012-16 models

Tested vehicle: 2012 Honda CR-Z 2-door

Overall evaluation
Curb weight 2,682 lbs
Peak force 15,883 lbs
Strength-to-weight ratio 5.92

How the roof strength test is conducted

Head restraints & seats

Rating applies to 2011-16 models

Seat type: Manual cloth seat (AHR)

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Manual cloth seat (AHR)
Geometry
Backset (mm) 34
Distance below top of head (mm) 12
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 11.9
Head contact time (ms) 62
Force rating 1
Neck forces
Max neck shear force (N) 25
Max neck tension (N) 340

How the head restraint & seat test is conducted
