1995 Honda Accord
midsize car / 4-door sedan
Moderate overlap front: original test

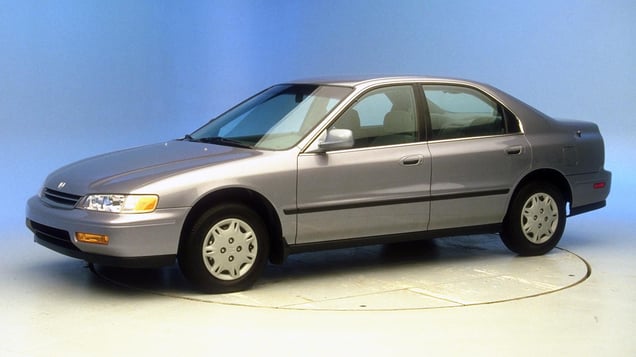

Tested vehicle: 1995 Honda Accord LX 4-door
Rating applies to 1994-97 models
The Honda Accord was redesigned for the 1994 model year.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CF95009 |
| Footwell intrusion | |
| Footrest (cm) | 16 |
| Left (cm) | 25 |
| Center (cm) | 27 |
| Right (cm) | 23 |
| Brake pedal (cm) | 22 |
| Instrument panel rearward movement | |
| Left (cm) | 7 |
| Right (cm) | 9 |
| Steering column movement | |
| Upward (cm) | 6 |
| Rearward (cm) | 9 |
| A-pillar rearward movement (cm) | 3 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CF95009 |
| Head | |
| HIC-15 | 327 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.7 |
| Extension bending moment (Nm) | 22 |
| Maximum Nij | 0.32 |
| Chest maximum compression (mm) | 39 |
| Legs | |
| Femur force - left (kN) | 3.3 |
| Femur force - right (kN) | 1.0 |
| Knee displacement - left (mm) | 3 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 1.70 |
| Maximum tibia index - right | 0.91 |
| Tibia axial force - left (kN) | 1.9 |
| Tibia axial force - right (kN) | 1.3 |
| Foot acceleration (g) | |
| Left | 68 |
| Right | 63 |
