Small overlap front: driver-side
Rating applies to 2023-24 models

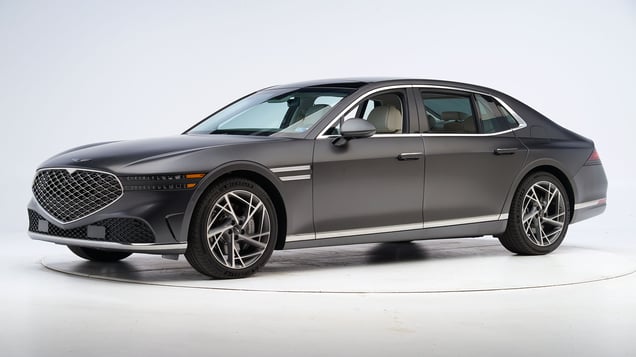

Tested vehicle: 2023 Genesis G90 3.5T 4-door 4wd
The Genesis G90 was redesigned for the 2023 model year. Driver-side small overlap frontal ratings are assigned by the Institute based on a test of a 2023 G90 conducted by Hyundai as part of frontal crash test verification.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTN2301 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 10 |
| Footrest (cm) | 17 |
| Left toepan (cm) | 12 |
| Brake pedal (cm) | 7 |
| Parking brake (cm) | |
| Rocker panel lateral average (cm) | 1 |
| Upper occupant compartment | |
| Steering column | 2 |
| Upper hinge pillar max (cm) | 6 |
| Upper dash (cm) | 8 |
| Lower instrument panel (cm) | 7 |
Driver injury measures
| Test ID | VTN2301 |
|---|---|
| Head | |
| HIC-15 | 216 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.6 |
| Extension bending moment (Nm) | 15 |
| Maximum Nij | 0.36 |
| Chest maximum compression (mm) | 31 |
| Femur (kN) | |
| Left | 2.7 |
| Right | 2.3 |
| Knee displacement (mm) | |
| Left | 4 |
| Right | 4 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.63 |
| Right | 0.59 |
| Tibia axial force (kN) | |
| Left | 3.1 |
| Right | 2.8 |
| Foot acceleration (g) | |
| Left | 73 |
| Right | 59 |
Small overlap front: passenger-side
Rating applies to 2023-24 models
Tested vehicle: 2023 Genesis G90 3.5T 4-door 4wd
The Genesis G90 was redesigned for the 2023 model year. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test of a 2023 G90 conducted by Hyundai as part of frontal crash test verification.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Passenger injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Passenger restraints and dummy kinematics | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on passenger side
| Test ID | VTP2301 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 11 |
| Footrest (cm) | 18 |
| Right toepan (cm) | 11 |
| Center toepan (cm) | 3 |
| Rocker panel lateral average (cm) | 0 |
| Upper occupant compartment | |
| Center dash (cm) | 3 |
| Upper hinge pillar max (cm) | 5 |
| Upper dash (cm) | 7 |
| Right lower dash (cm) | 10 |
Passenger injury measures
| Test ID | VTP2301 |
|---|---|
| Head | |
| HIC-15 | 190 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.0 |
| Extension bending moment (Nm) | 8 |
| Maximum Nij | 0.24 |
| Chest maximum compression (mm) | 22 |
| Femur (kN) | |
| Left | 1.3 |
| Right | 3.3 |
| Knee displacement (mm) | |
| Left | 8 |
| Right | 9 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.67 |
| Right | 1.00 |
| Tibia axial force (kN) | |
| Left | 3.4 |
| Right | 4.8 |
| Foot acceleration (g) | |
| Left | 97 |
| Right | 76 |
Driver injury measures
| Test ID | VTP2301 |
|---|---|
| Head | |
| HIC-15 | 88 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.7 |
| Extension bending moment (Nm) | 6 |
| Maximum Nij | 0.17 |
| Chest maximum compression (mm) | 26 |
| Femur (kN) | |
| Left | 1.2 |
| Right | 1.8 |
| Knee displacement (mm) | |
| Left | 1 |
| Right | 2 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.27 |
| Right | 0.39 |
| Tibia axial force (kN) | |
| Left | 2.4 |
| Right | 3.2 |
| Foot acceleration (g) | |
| Left | 41 |
| Right | 61 |
How the passenger-side small overlap front test is conducted
Moderate overlap front: original test
Rating applies to 2023-24 models
Tested vehicle: 2023 Genesis G90 4-door 4wd
The Genesis G90 was redesigned for the 2023 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test of a 2023 G90 conducted by Hyundai as part of frontal crash test verification.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTF2301 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 2 |
| Left (cm) | 1 |
| Center (cm) | 2 |
| Right (cm) | 2 |
| Brake pedal (cm) | 12 |
| Instrument panel rearward movement | |
| Left (cm) | 0 |
| Right (cm) | 0 |
| Steering column movement | |
| Upward (cm) | 0 |
| Rearward (cm) | -6 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Test ID | VTF2301 |
|---|---|
| Head | |
| HIC-15 | 173 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.2 |
| Extension bending moment (Nm) | 24 |
| Maximum Nij | 0.27 |
| Chest maximum compression (mm) | 28 |
| Legs | |
| Femur force - left (kN) | 1.2 |
| Femur force - right (kN) | 1.7 |
| Knee displacement - left (mm) | 1 |
| Knee displacement - right (mm) | 2 |
| Maximum tibia index - left | 0.27 |
| Maximum tibia index - right | 0.56 |
| Tibia axial force - left (kN) | 2.8 |
| Tibia axial force - right (kN) | 3.4 |
| Foot acceleration (g) | |
| Left | 57 |
| Right | 66 |
Side: updated test
Rating applies to 2023-24 models
Tested vehicle: 2023 Genesis G90 3.5T 4-door 4wd
The Genesis G90 was redesigned for the 2023 model year. Side 2.0 ratings are assigned by the Institute based on a test of a 2023 G90 conducted by Hyundai as part of side crash test verification.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Rear passenger head protection | |
Measures of occupant compartment intrusion on driver side
| Test ID | VTS2301 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -17.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | VTS2301 |
|---|---|
| Head | |
| HIC-15 | 185 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.0 |
| Compression (kN) | -0.6 |
| Shoulder | |
| Lateral deflection (mm) | 36 |
| Lateral force (kN) | 1.4 |
| Torso | |
| Maximum deflection (mm) | 36 |
| Average deflection (mm) | 36 |
| Maximum deflection rate (m/s) | 5.60 |
| Maximum viscous criterion (m/s) | 0.94 |
| Pelvis | |
| Combined force (kN) | 2.8 |
Passenger injury measures
| Test ID | VTS2301 |
|---|---|
| Head | |
| HIC-15 | 49 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.2 |
| Compression (kN) | 0.0 |
| Shoulder | |
| Lateral deflection (mm) | 12 |
| Lateral force (kN) | 0.5 |
| Torso | |
| Maximum deflection (mm) | 15 |
| Average deflection (mm) | 12 |
| Maximum deflection rate (m/s) | 2.20 |
| Maximum viscous criterion (m/s) | 0.09 |
| Pelvis | |
| Combined force (kN) | 1.4 |
Headlights
Trim level(s)
-
All trims
| Low-beam headlight type | LED projector |
|---|---|
| High-beam headlight type | LED projector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
| Overall rating |
|
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was fair on the left side of the road and inadequate on the right side. On curves, visibility was fair on both right curves and inadequate on both left curves.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on the gradual right curve, fair on the gradual left and sharp right curves, and inadequate on the sharp left curve.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | LED projector |
| High-beam headlight type | LED projector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
| Overall rating Applies to 2023-24 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 75.8 m | None |
| Straightaway left edge | 53.7 m | None |
| 250m radius right curve, right edge | 57.8 m | None |
| 250m radius left curve, right edge | 51.6 m | None |
| 150m radius right curve, right edge | 49.2 m | None |
| 150m radius left curve, left edge | 43.1 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 149.4 m |
| Straightaway left edge | 143.2 m |
| 250m radius right curve, right edge | 76.0 m |
| 250m radius left curve, left edge | 68.9 m |
| 150m radius right curve, right edge | 56.6 m |
| 150m radius left curve, left edge | 48.5 m |
Front crash prevention: pedestrian (day)
Front crash prevention: pedestrian (night)
Seat belt reminders
Rating applies to 2023-24 models
| Overall evaluation | |
|---|---|
| Front row | |
| Unbelted occupant alert (audible & visual) | |
| Initiation time | |
| Duration | Long enough (90+ seconds) |
| Volume | |
| Audio frequency | |
| Second row | |
| Startup status alert (visual) | |
| Initiation time | |
| Duration at least 60 seconds | |
| Belt disengaged alert (audible & visual) | |
| Initiation time | |
| Duration at least 30 seconds | |
| Volume | |
| Audio frequency |
| Background cabin sound pressure level at 24 km/h | 47 dB |
| Audible signal sound pressure level at 24 km/h | 64 dB |
| Difference between background and signal | 17.7 dB |
| Background cabin sound pressure level at 40 km/h | 49 dB |
| Audible signal sound pressure level at 40 km/h | 64 dB |
| Difference between background and signal | 15.8 dB |
| Dominant audio frequency | 528 Hz |
