Top Safety Pick +

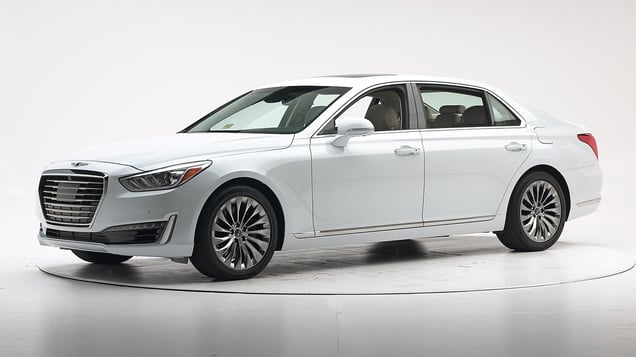

2017 Genesis G90

large luxury car / 4-door sedan

2017 Genesis G90 4-door sedan

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front
Side
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights(varies by trim/ option)
Front crash prevention
Standard system
Superior

Child seat anchors

LATCH ease of use

Other available safety features

  • Standard daytime running lights
  • Standard blind spot detection
  • Standard lane departure warning
  • Standard lane departure prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2017-19 models

Tested vehicle: 2017 Genesis G90 3.3T Premium 4-door

The Genesis G90 was introduced in the 2017 model year as the flagship sedan of the new luxury division created by Hyundai named "Genesis."

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained very well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

The driver's space was maintained well, and risk of injuries to the dummy's legs and feet was low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1629
Lower occupant compartment
Lower hinge pillar max (cm) 7
Footrest (cm) 9
Left toepan (cm) 5
Brake pedal (cm) 2
Parking brake (cm)
Rocker panel lateral average (cm) 0
Upper occupant compartment
Steering column 0
Upper hinge pillar max (cm) 3
Upper dash (cm) 3
Lower instrument panel (cm) 4

Driver injury measures

Test ID CEN1629
Head
HIC-15 69
Peak gs at hard contact no contact
Neck
Tension (kN) 0.7
Extension bending moment (Nm) 7
Maximum Nij 0.15
Chest maximum compression (mm) 20
Femur (kN)
Left 1.0
Right 0.7
Knee displacement (mm)
Left 1
Right 2
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.36
Right 0.34
Tibia axial force (kN)
Left 2.7
Right 1.5
Foot acceleration (g)
Left 56
Right 44

How the driver-side small overlap front test is conducted

Small overlap front: passenger-side

Rating applies to 2017-19 models

Tested vehicle: 2017 Genesis G90 3.3T Premium 4-door

The Genesis G90 was introduced in the 2017 model year as the flagship sedan of the new luxury division created by Hyundai named "Genesis." Passenger-side small overlap frontal ratings are assigned by the Institute based a test conducted by Hyundai as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID VTP1716
Lower occupant compartment
Lower hinge pillar max (cm) 10
Footrest (cm) 16
Right toepan (cm) 10
Center toepan (cm) 2
Rocker panel lateral average (cm) 0
Upper occupant compartment
Center dash (cm) 6
Upper hinge pillar max (cm) 5
Upper dash (cm) 9
Right lower dash (cm) 14

Passenger injury measures

Test ID VTP1716
Head
HIC-15 63
Peak gs at hard contact no contact
Neck
Tension (kN) 0.5
Extension bending moment (Nm) 6
Maximum Nij 0.11
Chest maximum compression (mm) 19
Femur (kN)
Left 0.1
Right 1.0
Knee displacement (mm)
Left 1
Right 3
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.20
Right 0.22
Tibia axial force (kN)
Left 0.4
Right 0.7
Foot acceleration (g)
Left 32
Right 50

Driver injury measures

Test ID VTP1716
Head
HIC-15 58
Peak gs at hard contact no contact
Neck
Tension (kN) 0.5
Extension bending moment (Nm) 9
Maximum Nij 0.13
Chest maximum compression (mm) 20
Femur (kN)
Left 0.2
Right 0.5
Knee displacement (mm)
Left 0
Right 1
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.39
Right 0.25
Tibia axial force (kN)
Left 0.4
Right 1.0
Foot acceleration (g)
Left 26
Right 31

How the passenger-side small overlap front test is conducted

Moderate overlap front

Rating applies to 2017-19 models

Tested vehicle: 2017 Genesis G90 5.0 Ultimate 4-door

The Genesis G90 was introduced in the 2017 model year as the flagship sedan of the new luxury division created by Hyundai named "Genesis." Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Hyundai as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1616
Footwell intrusion
Footrest (cm) 2
Left (cm) 4
Center (cm) 8
Right (cm) 6
Brake pedal (cm) 4
Instrument panel rearward movement
Left (cm) 1
Right (cm) 1
Steering column movement
Upward (cm) -6
Rearward (cm) -5
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1616
Head
HIC-15 103
Peak gs at hard contact no contact
Neck
Tension (kN) 1.0
Extension bending moment (Nm) 7
Maximum Nij 0.28
Chest maximum compression (mm) 30
Legs
Femur force - left (kN) 0.4
Femur force - right (kN) 0.7
Knee displacement - left (mm) 1
Knee displacement - right (mm) 1
Maximum tibia index - left 0.23
Maximum tibia index - right 0.42
Tibia axial force - left (kN) 1.5
Tibia axial force - right (kN) 2.8
Foot acceleration (g)
Left 41
Right 85

How the moderate overlap front test is conducted

Side

Rating applies to 2017-19 models

Tested vehicle: 2017 Genesis G90 5.0 Ultimate 4-door

The Genesis G90 was introduced in the 2017 model year as the flagship sedan of the new luxury division created by Hyundai named "Genesis." Side ratings are assigned by the Institute based on a test conducted by Hyundai as part of side crash test verification.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1614
B-pillar to longitudinal centerline of driver's seat (cm) -18.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1614
Head HIC-15 79
Neck
Tension (kN) 0.9
Compression (kN) 0.5
Shoulder
Lateral deflection (mm) 34
Lateral force (kN) 1.9
Torso
Maximum deflection (mm) 30
Average deflection (mm) 28
Maximum deflection rate (m/s) 3.94
Maximum viscous criterion (m/s) 0.52
Pelvis
Iliac force (kN) 1.5
Acetabulum force (kN) 2.4
Combined force (kN) 3.9
Left femur
L-M force (kN) 0.1
L-M moment (Nm) 69
A-P moment (Nm) 49

Passenger injury measures

Test ID VTS1614
Head HIC-15 47
Neck
Tension (kN) 0.4
Compression (kN) 0.3
Shoulder
Lateral deflection (mm) 9
Lateral force (kN) 0.7
Torso
Maximum deflection (mm) 12
Average deflection (mm) 10
Maximum deflection rate (m/s) 1.00
Maximum viscous criterion (m/s) 0.04
Pelvis
Iliac force (kN) 0.2
Acetabulum force (kN) 0.8
Combined force (kN) 0.9
Left femur
L-M force (kN) 0.5
L-M moment (Nm) 24
A-P moment (Nm) -11

How the side crash test is conducted

Roof strength

Rating applies to 2017-19 models

Tested vehicle: 2017 Genesis G90 3.3T Premium 4-door

Overall evaluation
Curb weight 4,694 lbs
Peak force 23,044 lbs
Strength-to-weight ratio 4.91

How the roof strength test is conducted

Head restraints & seats

Rating applies to 2017-19 models

Seat type: Power leather seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Power leather seat
Geometry
Backset (mm) 0
Distance below top of head (mm) -16
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 11.6
Head contact time (ms) 52
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 351

How the head restraint & seat test is conducted

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

  • 5.0 Ultimate trim
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? Yes
High-beam assist? Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was good on the left side of the road and fair on the right side. On curves, visibility was good on the sharp right and sharp left curves, fair on the gradual right curve and inadequate on the gradual left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on the sharp right curve and fair on the gradual right and both left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway, on both left curves and on the gradual right curve.

Technical measurements for this test
Trim level(s)
  • 5.0 Ultimate trim
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? Yes
High-beam assist? Yes
Overall rating
Applies to 2017-19 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 78.7 m None
Straightaway left edge 61.2 m None
250m radius right curve, right edge 56.0 m None
250m radius left curve, left edge 54.6 m None
150m radius right curve, left edge 62.7 m None
150m radius left curve, right edge 58.4 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 162.2 m
Straightaway left edge 145.9 m
250m radius right curve, right edge 65.1 m
250m radius left curve, left edge 72.5 m
150m radius right curve, left edge 67.5 m
150m radius left curve, right edge 61.5 m

Trim level(s)

  • 3.3T trim
Low-beam headlight type HID projector
High-beam headlight type HID projector
Curve-adaptive? Yes
High-beam assist? Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit Some glare

Low beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on the sharp left and both right curves and fair on the gradual left curve.

The low beams created some glare.

High beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was good in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and on both left curves.

Technical measurements for this test
Trim level(s)
  • 3.3T trim
Low-beam headlight type HID projector
High-beam headlight type HID projector
Curve-adaptive? Yes
High-beam assist? Yes
Overall rating
Applies to 2017 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 100.4 m 15.9 %
Straightaway left edge 50.0 m 15.9 %
250m radius right curve, left edge 77.0 m 26.5 %
250m radius left curve, left edge 61.4 m None
150m radius right curve, right edge 71.6 m 21.0 %
150m radius left curve, left edge 59.9 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 116.9 m
Straightaway left edge 122.6 m
250m radius right curve, right edge 83.6 m
250m radius left curve, left edge 97.2 m
150m radius right curve, right edge 72.3 m
150m radius left curve, right edge 87.2 m

How headlights are evaluated

Front crash prevention

System details

  • Standard Automatic Emergency Braking

Applies to 2017-19 models

Overall evaluation

  • This system meets the requirements for forward collision warning.
  • In the 12 mph IIHS test, this vehicle avoided a collision.
  • In the 25 mph IIHS test, this vehicle avoided a collision.
Superior
Superior

How front crash prevention is evaluated

Child seat anchors

Applies to 2017-19 models

Overall evaluation
Vehicle trim 3.3T Premium
Seat type leather

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

1 2 3
G Good
A Acceptable
M Marginal
P Poor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 4-6
Force (lbs) 29
Clearance angle (degrees) 75
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 15
Clearance angle (degrees) 87
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
No

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
No

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 14
Clearance angle (degrees) 88
Lower anchor B
Open access rated No
Depth (cm) 4-6
Force (lbs) 23
Clearance angle (degrees) 67
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
No

How child seat anchors are evaluated
