Small overlap front: driver-side
Rating applies to 2013-19 models

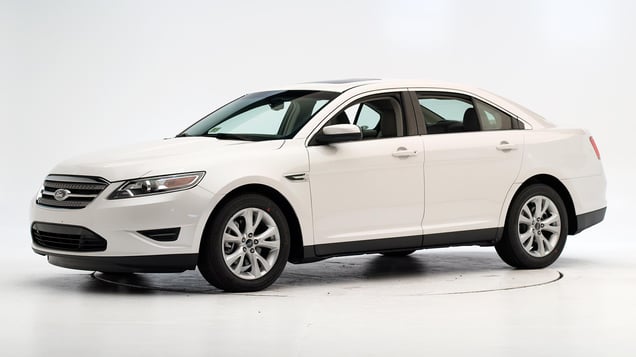

Tested vehicle: 2017 Ford Taurus SE 4-door
The Ford Taurus was redesigned for the 2010 model year. Beginning with the 2013 model year, the side curtain airbags were lengthened to improve occupant protection in small overlap frontal crashes.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Driver restraints and dummy kinematics |
Action shot taken during the small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well.
The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.
Intrusion of the door hinge pillar, parking brake pedal, and instrument panel contributed to a significant risk of injury to the left lower leg.
Measures of occupant compartment intrusion on driver side
Test ID | CEN1711 |
---|---|
Lower occupant compartment | |
Lower hinge pillar max (cm) | 13 |
Footrest (cm) | 6 |
Left toepan (cm) | 5 |
Brake pedal (cm) | 3 |
Parking brake (cm) | 11 |
Rocker panel lateral average (cm) | 4 |
Upper occupant compartment | |
Steering column | 4 |
Upper hinge pillar max (cm) | 11 |
Upper dash (cm) | 9 |
Lower instrument panel (cm) | 8 |
Driver injury measures
Test ID | CEN1711 |
---|---|
Head | |
HIC-15 | 42 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 0.8 |
Extension bending moment (Nm) | 15 |
Maximum Nij | 0.18 |
Chest maximum compression (mm) | 20 |
Femur (kN) | |
Left | 2.2 |
Right | 0.0 |
Knee displacement (mm) | |
Left | 4 |
Right | 0 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 1.19 |
Right | 0.41 |
Tibia axial force (kN) | |
Left | 2.5 |
Right | 0.0 |
Foot acceleration (g) | |
Left | 63 |
Right | 26 |
Moderate overlap front: original test
Rating applies to 2010-19 models
Tested vehicle: 2010 Ford Taurus Limited 4-door 4WD
The Ford Taurus was re-engineered and restyled for the 2010 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Ford as part of frontal crash test verification.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTF0821 |
---|---|
Footwell intrusion | |
Footrest (cm) | 5 |
Left (cm) | 6 |
Center (cm) | 7 |
Right (cm) | 7 |
Brake pedal (cm) | 3 |
Instrument panel rearward movement | |
Left (cm) | 3 |
Right (cm) | 2 |
Steering column movement | |
Upward (cm) | 1 |
Rearward (cm) | -2 |
A-pillar rearward movement (cm) | 1 |
Driver injury measures
Test ID | VTF0821 |
---|---|
Head | |
HIC-15 | 178 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.3 |
Extension bending moment (Nm) | 13 |
Maximum Nij | 0.33 |
Chest maximum compression (mm) | 39 |
Legs | |
Femur force - left (kN) | 0.3 |
Femur force - right (kN) | 0.2 |
Knee displacement - left (mm) | 2 |
Knee displacement - right (mm) | 1 |
Maximum tibia index - left | 0.36 |
Maximum tibia index - right | 0.59 |
Tibia axial force - left (kN) | 2.0 |
Tibia axial force - right (kN) | 1.4 |
Foot acceleration (g) | |
Left | 55 |
Right | 64 |
Side: original test
Rating applies to 2010-19 models
Tested vehicle: 2010 Ford Taurus SHO 4-door 4WD with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
The Ford Taurus was re-engineered and restyled for the 2010 model year. Side ratings are assigned by the Institute based on a test conducted by Ford as part of side crash test verification.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
Measures of occupant compartment intrusion on driver side
Test ID | VTS0802 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -12.0 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | VTS0802 |
---|---|
Head HIC-15 | 123 |
Neck | |
Tension (kN) | 0.8 |
Compression (kN) | 0.5 |
Shoulder | |
Lateral deflection (mm) | 37 |
Lateral force (kN) | 1.4 |
Torso | |
Maximum deflection (mm) | 37 |
Average deflection (mm) | 31 |
Maximum deflection rate (m/s) | 4.00 |
Maximum viscous criterion (m/s) | 0.50 |
Pelvis | |
Iliac force (kN) | 2.6 |
Acetabulum force (kN) | 2.7 |
Combined force (kN) | 5.1 |
Left femur | |
L-M force (kN) | 0.1 |
L-M moment (Nm) | 75 |
A-P moment (Nm) | 19 |
Passenger injury measures
Test ID | VTS0802 |
---|---|
Head HIC-15 | 207 |
Neck | |
Tension (kN) | 0.2 |
Compression (kN) | 0.4 |
Shoulder | |
Lateral deflection (mm) | 34 |
Lateral force (kN) | 1.6 |
Torso | |
Maximum deflection (mm) | 43 |
Average deflection (mm) | 33 |
Maximum deflection rate (m/s) | 5.10 |
Maximum viscous criterion (m/s) | 0.80 |
Pelvis | |
Iliac force (kN) | 0.9 |
Acetabulum force (kN) | 3.3 |
Combined force (kN) | 3.6 |
Left femur | |
L-M force (kN) | 0.1 |
L-M moment (Nm) | 103 |
A-P moment (Nm) | 24 |
Roof strength
Rating applies to 2010-19 models
Tested vehicle: 2010 Ford Taurus SEL 4-door
Overall evaluation | |
---|---|
Curb weight | 3,972 lbs |
Peak force | 16,759 lbs |
Strength-to-weight ratio | 4.22 |
Head restraints & seats
Seat type: Power leather seats with 4-way head restraints
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | Power leather seats with 4-way head restraints |
---|---|
Geometry | |
Backset (mm) | 20 |
Distance below top of head (mm) | 27 |
Seat design parameters | |
Pass/fail | Pass |
Max T1 acceleration (g) | 10.1 |
Head contact time (ms) | 57 |
Force rating | 1 |
Neck forces | |
Max neck shear force (N) | 42 |
Max neck tension (N) | 529 |
How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.
