2025 Ford Maverick
small pickup / Crew cab pickup
Moderate overlap front: updated test

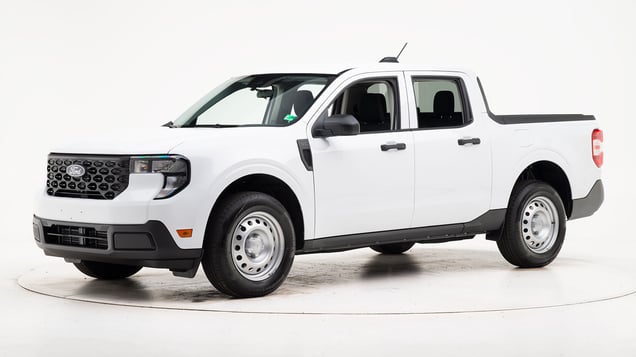

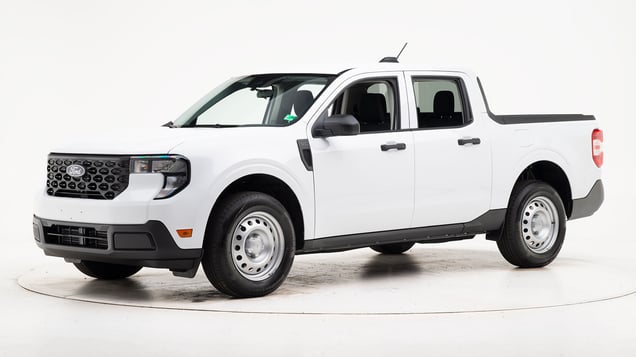

Tested vehicle: 2023 Ford Maverick XLT Crew Cab 4wd
Rating applies to 2022-25 models
The Ford Maverick was introduced in the 2022 model year.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Thigh/hip | |
| Leg/foot | |
| Driver restraints and dummy kinematics | |
| Rear passenger injury measures | |
| Head/neck | |
| Chest | |
| Thigh | |
|
Rear passenger restraints and dummy kinematics
| |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF2331 |
| Footwell intrusion | |
| Footrest (cm) | 3 |
| Left (cm) | 5 |
| Center (cm) | 6 |
| Right (cm) | 3 |
| Brake pedal (cm) | 1 |
| Instrument panel rearward movement | |
| Left (cm) | -1 |
| Right (cm) | -1 |
| Steering column movement | |
| Upward (cm) | -1 |
| Rearward (cm) | -4 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF2331 |
| Head | |
| HIC-15 | 146 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.0 |
| Extension bending moment (Nm) | 11 |
| Maximum Nij | 0.25 |
| Chest maximum compression (mm) | 29 |
| Femur (kN) | |
| Left | 0.4 |
| Right | 1.1 |
| Knee displacement (mm) | |
| Left | 1 |
| Right | 1 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.23 |
| Right | 0.44 |
| Tibia axial force (kN) | |
| Left | 1.9 |
| Right | 2.1 |
| Foot acceleration (g) | |
| Left | 51 |
| Right | 48 |
Rear passenger injury measures
| Test ID | CEF2331 |
|---|---|
| Head | |
| HIC-15 for head contact during forward excursion | no contact |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 2.0 |
| Compression (kN) | 0.7 |
| Maximum Nij for head contact during forward excursion | no contact |
| Chest | |
| Chest index | 38 |
| Shoulder belt tension (kN) | 4.9 |
| Thigh (kN) | |
| Left femur compression | 0.1 |
| Right femur compression | 0.1 |
Side: updated test
Tested vehicle: 2023 Ford Maverick XLT Hybrid Crew Cab
Rating applies to 2022-25 models built after July 2022
The Ford Maverick was introduced in the 2022 model year. Beginning with 2022 models built after July 2022, improvements were made to the front side curtain airbag deployment as part of a recall issued by Ford which also includes the same fix to cars built earlier. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Rear passenger head protection | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES2312 |
| B-pillar to longitudinal centerline of driver's seat (cm) | -20.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES2312 |
| Head | |
| HIC-15 | 146 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.6 |
| Compression (kN) | 0.4 |
| Shoulder | |
| Lateral deflection (mm) | 17 |
| Lateral force (kN) | 1.0 |
| Torso | |
| Maximum deflection (mm) | 28 |
| Average deflection (mm) | 25 |
| Maximum deflection rate (m/s) | 3.00 |
| Maximum viscous criterion (m/s) | 0.35 |
| Pelvis | |
| Combined force (kN) | 5.7 |
Passenger injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES2312 |
| Head | |
| HIC-15 | 295 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.8 |
| Compression (kN) | 0.2 |
| Shoulder | |
| Lateral deflection (mm) | 56 |
| Lateral force (kN) | 2.6 |
| Torso | |
| Maximum deflection (mm) | 46 |
| Average deflection (mm) | 37 |
| Maximum deflection rate (m/s) | 5.32 |
| Maximum viscous criterion (m/s) | 0.87 |
| Pelvis | |
| Combined force (kN) | 3.8 |
Seat belt reminders
Rating applies to 2023-25 models
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Front row | |
| Unbelted occupant alert (audible & visual) | |
| Initiation time | |
| Duration | Long enough (90+ seconds) |
| Volume | |
| Audio frequency | |
| Second row | |
| Startup status alert (visual) | |
| Initiation time | |
| Duration at least 60 seconds | |
| Belt disengaged alert (audible & visual) | |
| Initiation time | |
| Duration at least 30 seconds | |
| Volume | |
| Audio frequency | |
Technical measurements for this test
| Background cabin sound pressure level at 24 km/h | 52 dB |
| Audible signal sound pressure level at 24 km/h | 67 dB |
| Difference between background and signal | 14.4 dB |
| Background cabin sound pressure level at 40 km/h | 57 dB |
| Audible signal sound pressure level at 40 km/h | 67 dB |
| Difference between background and signal | 9.6 dB |
| Dominant audio frequency | 744 Hz |
Child seat anchors
Rating applies to 2023-25 models
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Vehicle trim | XLT |
| Seat type | cloth |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware. It has 1 additional seating position with a tether anchor and the ability to borrow lower anchors from the other seating positions. Note: When anchors are borrowed, they aren't available to use in their designated positions.
| Rating icon | Rating |
|---|---|
| G | Good |
| A | Acceptable |
| M | Marginal |
| P | Poor |
| Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
| Lower anchor(s) can be borrowed from adjacent positions(s) | |
| No hardware available |
Details by seating position
| Position | Rating |
|---|---|
| 1 | |
| Tether anchor | |
| hard-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| too deep in seat | |
| not too much force needed to attach | |
| easy to maneuver around anchors | |
| 2 | |
| Tether anchor | |
| hard-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| Can be borrowed from 1 and 3 | |
| 3 | |
| Tether anchor | |
| hard-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| too deep in seat | |
| not too much force needed to attach | |
| easy to maneuver around anchors |
Technical measurements for this test
Seat position 21
3
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 2-4 |
| Force (lbs) | 15 |
| Clearance angle (degrees) | 67 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 2-4 |
| Force (lbs) | 19 |
| Clearance angle (degrees) | 73 |
| Tether anchor | |
| Location | Back wall |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
Yes |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 22
2
| Lower anchor A | |
|---|---|
| Lower latch is shared for this seat position | |
| Lower anchor B | |
| Lower latch is shared for this seat position | |
| Tether anchor | |
| Location | Back wall |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
Yes |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 23
1
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 2-4 |
| Force (lbs) | 17 |
| Clearance angle (degrees) | 71 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 2-4 |
| Force (lbs) | 20 |
| Clearance angle (degrees) | 64 |
| Tether anchor | |
| Location | Back wall |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
Yes |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
