2019 Ford Fusion

midsize car / 4-door sedan

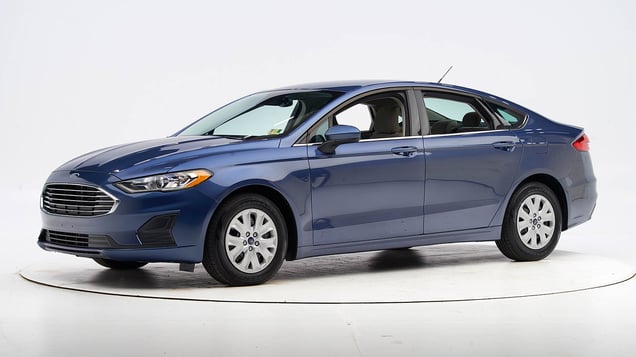

2019 Ford Fusion 4-door sedan
2017 Ford Fusion shown

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front
Side
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights (varies by trim/option)
Front crash prevention
Standard system
Superior

Child seat anchors

LATCH ease of use

Other available safety features

  • Standard daytime running lights
  • Standard blind spot detection
  • Standard lane departure warning
  • Standard lane departure prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2017-19 models

Tested vehicle: 2017 Ford Fusion SE 4-door
The Ford Fusion and Lincoln MKZ were redesigned for the 2013 model year. Beginning with 2017 models, the front-end structure and bumper reinforcement were modified to improve occupant protection in small overlap and moderate overlap frontal crashes.

Overall evaluation
Structure and safety cage
Injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained very well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

The driver's space was maintained well, and risk of injuries to the dummy's legs and feet was low.

Small overlap front: passenger-side

Rating applies to 2017-19 models

Tested vehicle: 2017 Ford Fusion SE 4-door
The Ford Fusion and Lincoln MKZ were redesigned for the 2013 model year. Beginning with 2017 models, the front-end structure and bumper reinforcement were modified to improve occupant protection in small overlap and moderate overlap frontal crashes.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the passenger-side small overlap frontal crash test.

The dummy's position in relation to the door frame and dashboard after the crash test indicates that the passenger’s survival space was maintained very well.

The frontal and side curtain airbags worked well together to keep the passenger dummy’s head from coming close to any stiff structure or outside objects that could cause injury.

The passenger’s space was maintained well, and risk of injuries to the dummy's legs and feet was low.

Moderate overlap front

Rating applies to 2017-19 models

Tested vehicle: 2017 Ford Fusion SE 4-door

The Ford Fusion and Lincoln MKZ were redesigned for the 2013 model year. Beginning with 2017 models, the front-end structure and bumper reinforcement were modified to improve occupant protection in small overlap and moderate overlap frontal crashes.

Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Ford as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Restraints and dummy kinematics

Side

Rating applies to 2017-19 models

Tested vehicle: 2017 Ford Fusion SE 4-door 4wd
The Ford Fusion and Lincoln MKZ were redesigned for the 2013 model year. Beginning with 2017 models, the side airbags were modified to improve occupant protection in side impact crashes. Side ratings are assigned by the Institute based on a test conducted by Ford as part of side crash test verification.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

Roof strength

Rating applies to 2013-19 models

Tested vehicle: 2013 Ford Fusion SE 4-door

Overall evaluation
Curb weight 3,411 lbs
Peak force 17,527 lbs
Strength-to-weight ratio 5.14

Head restraints & seats

Rating applies to 2013-19 models

Seat type: Power cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry

Front crash prevention

System details

  • Standard Pre-Collision Assist with Pedestrian Detection

Package name

  • Standard Adaptive Cruise Control with Stop-and-Go

Applies to 2019 models

Overall evaluation

  • This system meets the requirements for forward collision warning.
  • In the 12 mph IIHS test, this vehicle avoided a collision.
  • In the 25 mph IIHS test, this vehicle avoided a collision.
Superior
Superior

How front crash prevention is evaluated

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

  • SEL trim
  • Titanium trim
  • V6 Sport trim
  • Hybrid SEL trim
  • Hybrid Titanium trim
  • Energi Titanium trim
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit Some glare

Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was inadequate in all 4 tests.

The low beams created some glare.

High beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

Trim level(s)

  • S trim
  • SE trim
  • Hybrid trim
Low-beam headlight type Halogen projector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit Excessive glare

Low beams
On the straightaway, visibility was fair on the left side of the road and inadequate on the right side. On curves, visibility was inadequate in all 4 tests.

The low beams created excessive glare.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was inadequate in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

How headlights are evaluated

Child seat anchors

Applies to 2017-19 models

Overall evaluation
Vehicle trim SE
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor and the ability to borrow lower anchors from the other seating positions.

Note: When anchors are borrowed, they aren't available to use in their designated positions.

1 2 3
G Good
A Acceptable
M Marginal
P Poor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
difficult to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
Can be borrowed from 1 and 3
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
difficult to maneuver around anchors

How child seat anchors are evaluated
