2000 Ford Focus
small car / 4-door sedan
Moderate overlap front: original test

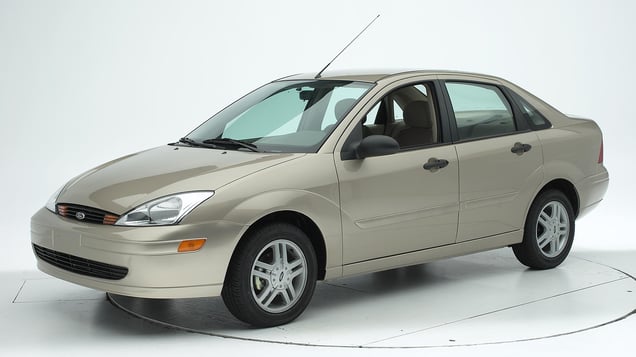

Tested vehicle: 2000 Ford Focus SE 4-door
Rating applies to 2000-07 models
The Ford Focus was introduced in the 2000 model year and modestly restyled for the 2005 model year.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CF00025 |
| Footwell intrusion | |
| Footrest (cm) | 15 |
| Left (cm) | 20 |
| Center (cm) | 19 |
| Right (cm) | 17 |
| Brake pedal (cm) | 18 |
| Instrument panel rearward movement | |
| Left (cm) | 3 |
| Right (cm) | 3 |
| Steering column movement | |
| Upward (cm) | -1 |
| Rearward (cm) | -2 |
| A-pillar rearward movement (cm) | 2 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CF00025 |
| Head | |
| HIC-15 | 183 |
| Peak gs at hard contact | 41 |
| Neck | |
| Tension (kN) | 1.7 |
| Extension bending moment (Nm) | 35 |
| Maximum Nij | 0.28 |
| Chest maximum compression (mm) | 27 |
| Legs | |
| Femur force - left (kN) | 4.9 |
| Femur force - right (kN) | 2.2 |
| Knee displacement - left (mm) | 2 |
| Knee displacement - right (mm) | 2 |
| Maximum tibia index - left | 0.81 |
| Maximum tibia index - right | 0.53 |
| Tibia axial force - left (kN) | 1.0 |
| Tibia axial force - right (kN) | 1.8 |
| Foot acceleration (g) | |
| Left | 62 |
| Right | 55 |
Side: original test
Tested vehicle: 2005 Ford Focus ZX4 SE 4-door without optional side airbags
Rating applies to 2000-07 models
The Ford Focus was introduced in the 2000 model year and modestly restyled for the 2005 model year.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection The dummy's head was hit by the intruding barrier, producing high head injury measures. |
|
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection The dummy's head was hit by the intruding barrier, as well as the window sill and window frame of the rear passenger door and the pillar behind the door. These impacts did not produce high head injury measures, but the head protection is inadequate. |
|
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Test ID | CES0417 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | 1.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES0417 |
| Head HIC-15 | 1,161 |
| Neck | |
| Tension (kN) | 2.7 |
| Compression (kN) | 1.2 |
| Shoulder | |
| Lateral deflection (mm) | 68 |
| Lateral force (kN) | 3.7 |
| Torso | |
| Maximum deflection (mm) | 58 |
| Average deflection (mm) | 47 |
| Maximum deflection rate (m/s) | 7.67 |
| Maximum viscous criterion (m/s) | 1.80 |
| Pelvis | |
| Iliac force (kN) | 3.1 |
| Acetabulum force (kN) | 3.7 |
| Combined force (kN) | 6.4 |
| Left femur | |
| L-M force (kN) | 1.1 |
| L-M moment (Nm) | 123 |
| A-P moment (Nm) | 43 |
Passenger injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES0417 |
| Head HIC-15 | 495 |
| Neck | |
| Tension (kN) | 0.8 |
| Compression (kN) | 0.9 |
| Shoulder | |
| Lateral deflection (mm) | 52 |
| Lateral force (kN) | 2.1 |
| Torso | |
| Maximum deflection (mm) | 48 |
| Average deflection (mm) | 39 |
| Maximum deflection rate (m/s) | 3.45 |
| Maximum viscous criterion (m/s) | 0.72 |
| Pelvis | |
| Iliac force (kN) | 0.4 |
| Acetabulum force (kN) | 1.9 |
| Combined force (kN) | 1.9 |
| Left femur | |
| L-M force (kN) | 2.0 |
| L-M moment (Nm) | 308 |
| A-P moment (Nm) | 38 |
