Moderate overlap front: original test

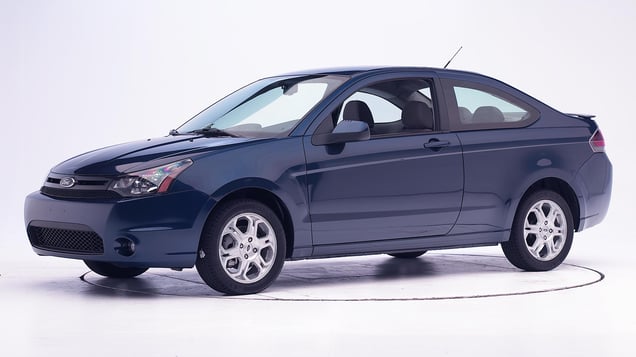

Tested vehicle: 2009 Ford Focus SE 2-door
Rating applies to 2008-10 models
The Ford Focus was restyled for the 2008 model year, and the restraint system (airbags and seat belts) was modified. In addition, side airbags were made standard (they had been optional in earlier models).
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF0902 |
| Footwell intrusion | |
| Footrest (cm) | 13 |
| Left (cm) | 20 |
| Center (cm) | 19 |
| Right (cm) | 15 |
| Brake pedal (cm) | 25 |
| Instrument panel rearward movement | |
| Left (cm) | 5 |
| Right (cm) | 4 |
| Steering column movement | |
| Upward (cm) | -3 |
| Rearward (cm) | 2 |
| A-pillar rearward movement (cm) | 5 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF0902 |
| Head | |
| HIC-15 | 218 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.3 |
| Extension bending moment (Nm) | 4 |
| Maximum Nij | 0.22 |
| Chest maximum compression (mm) | 29 |
| Legs | |
| Femur force - left (kN) | 3.1 |
| Femur force - right (kN) | 2.0 |
| Knee displacement - left (mm) | 5 |
| Knee displacement - right (mm) | 1 |
| Maximum tibia index - left | 0.25 |
| Maximum tibia index - right | 0.63 |
| Tibia axial force - left (kN) | 1.0 |
| Tibia axial force - right (kN) | 2.1 |
| Foot acceleration (g) | |
| Left | 80 |
| Right | 85 |
Side: original test
Tested vehicle: 2009 Ford Focus SE 2-door with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
Rating applies to 2008-10 models
The Ford Focus was restyled for the 2008 model year, and changes were made to the side structure to improve occupant protection in side impact crashes. In addition, the side airbag design was changed and they were made standard (they had been optional in earlier models).
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Test ID | CES0911 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -1.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES0911 |
| Head HIC-15 | 285 |
| Neck | |
| Tension (kN) | 1.1 |
| Compression (kN) | 0.0 |
| Shoulder | |
| Lateral deflection (mm) | 43 |
| Lateral force (kN) | 2.1 |
| Torso | |
| Maximum deflection (mm) | 27 |
| Average deflection (mm) | 20 |
| Maximum deflection rate (m/s) | 3.34 |
| Maximum viscous criterion (m/s) | 0.35 |
| Pelvis | |
| Iliac force (kN) | 3.7 |
| Acetabulum force (kN) | 1.0 |
| Combined force (kN) | 4.2 |
| Left femur | |
| L-M force (kN) | 1.2 |
| L-M moment (Nm) | 215 |
| A-P moment (Nm) | 23 |
Passenger injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES0911 |
| Head HIC-15 | 389 |
| Neck | |
| Tension (kN) | 0.9 |
| Compression (kN) | 0.0 |
| Shoulder | |
| Lateral deflection (mm) | 37 |
| Lateral force (kN) | 1.2 |
| Torso | |
| Maximum deflection (mm) | 40 |
| Average deflection (mm) | 24 |
| Maximum deflection rate (m/s) | 5.91 |
| Maximum viscous criterion (m/s) | 0.69 |
| Pelvis | |
| Iliac force (kN) | 2.6 |
| Acetabulum force (kN) | 2.6 |
| Combined force (kN) | 4.9 |
| Left femur | |
| L-M force (kN) | 0.5 |
| L-M moment (Nm) | 110 |
| A-P moment (Nm) | 110 |
Head restraints & seats
Seat type: Manual cloth seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
Technical measurements for this test
| Seat type | Manual cloth seats |
|---|---|
| Geometry | |
| Backset (mm) | 25 |
| Distance below top of head (mm) | 36 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 10.1 |
| Head contact time (ms) | 56 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 40 |
| Max neck tension (N) | 489 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
