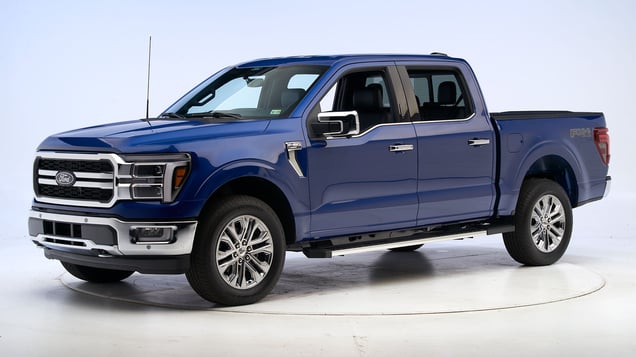

2024 Ford F-150
large pickup / Crew cab pickup
Small overlap front
The small overlap front evaluation consists of a driver-side and a passenger-side component. If the results of the two evaluations differ, then the combined small overlap rating is equal to the lower rating.
Driver-side
- Rating applies to 2021-24 models built after March 2021
Tested vehicle: 2021 Ford F-150 XL SuperCrew
The Ford F-150 was redesigned for the 2021 model year. Beginning with 2021 models built after March, reinforcements were added to the left and right-hand side of the frame to improve occupant protection in frontal crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)
Driver-side small overlap frontal ratings are assigned by the Institute based on a test of an F-150 conducted by Ford as part of frontal crash test verification.
| Overall driver-side evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics | |
Measures of occupant compartment intrusion on driver side
| Test ID | VTN2104 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 7 |
| Footrest (cm) | 8 |
| Left toepan (cm) | 7 |
| Brake pedal (cm) | 8 |
| Parking brake (cm) | |
| Rocker panel lateral average (cm) | 2 |
| Upper occupant compartment | |
| Steering column | 3 |
| Upper hinge pillar max (cm) | 8 |
| Upper dash (cm) | 7 |
| Lower instrument panel (cm) | 6 |
Driver injury measures
| Test ID | VTN2104 |
|---|---|
| Head | |
| HIC-15 | 116 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.0 |
| Extension bending moment (Nm) | 6 |
| Maximum Nij | 0.17 |
| Chest maximum compression (mm) | 22 |
| Femur (kN) | |
| Left | 0.5 |
| Right | 2.2 |
| Knee displacement (mm) | |
| Left | 2 |
| Right | 2 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.75 |
| Right | 0.64 |
| Tibia axial force (kN) | |
| Left | 4.3 |
| Right | 3.9 |
| Foot acceleration (g) | |
| Left | 168 |
| Right | 140 |
Passenger-side
- Rating applies to 2021-24 models
Tested vehicle: 2021 Ford F-150 XLT SuperCrew
The Ford F-150 was redesigned for the 2021 model year. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test of an F-150 conducted by Ford as part of frontal crash test verification.
| Overall passenger-side evaluation | |
|---|---|
| Structure and safety cage | |
| Passenger injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Passenger restraints and dummy kinematics | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics | |
Measures of occupant compartment intrusion on passenger side
| Test ID | VTP2103 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 14 |
| Footrest (cm) | 20 |
| Right toepan (cm) | 16 |
| Center toepan (cm) | 9 |
| Rocker panel lateral average (cm) | 3 |
| Upper occupant compartment | |
| Center dash (cm) | 6 |
| Upper hinge pillar max (cm) | 13 |
| Upper dash (cm) | 12 |
| Right lower dash (cm) | 11 |
Passenger injury measures
| Test ID | VTP2103 |
|---|---|
| Head | |
| HIC-15 | 83 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.7 |
| Extension bending moment (Nm) | 21 |
| Maximum Nij | 0.20 |
| Chest maximum compression (mm) | 15 |
| Femur (kN) | |
| Left | 1.6 |
| Right | 3.5 |
| Knee displacement (mm) | |
| Left | 4 |
| Right | 10 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.49 |
| Right | 0.57 |
| Tibia axial force (kN) | |
| Left | 1.0 |
| Right | 1.5 |
| Foot acceleration (g) | |
| Left | 81 |
| Right | 165 |
Driver injury measures
| Test ID | VTP2103 |
|---|---|
| Head | |
| HIC-15 | 60 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.6 |
| Extension bending moment (Nm) | 6 |
| Maximum Nij | 0.14 |
| Chest maximum compression (mm) | 16 |
| Femur (kN) | |
| Left | 0.0 |
| Right | 0.2 |
| Knee displacement (mm) | |
| Left | 0 |
| Right | 2 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.31 |
| Right | 0.25 |
| Tibia axial force (kN) | |
| Left | 0.4 |
| Right | 0.7 |
| Foot acceleration (g) | |
| Left | 33 |
| Right | 39 |
Moderate overlap front: original test
Rating applies to 2021-24 models
Tested vehicle: 2021 Ford F-150 XLT SuperCrew
The Ford F-150 was redesigned for the 2021 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test of an F-150 conducted by Ford as part of frontal crash test verification.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTF2102 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 6 |
| Left (cm) | 7 |
| Center (cm) | 6 |
| Right (cm) | 4 |
| Brake pedal (cm) | 11 |
| Instrument panel rearward movement | |
| Left (cm) | -1 |
| Right (cm) | -1 |
| Steering column movement | |
| Upward (cm) | 0 |
| Rearward (cm) | -5 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Test ID | VTF2102 |
|---|---|
| Head | |
| HIC-15 | 213 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.6 |
| Extension bending moment (Nm) | 20 |
| Maximum Nij | 0.21 |
| Chest maximum compression (mm) | 20 |
| Legs | |
| Femur force - left (kN) | 0.8 |
| Femur force - right (kN) | 0.5 |
| Knee displacement - left (mm) | 1 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.49 |
| Maximum tibia index - right | 0.32 |
| Tibia axial force - left (kN) | 2.7 |
| Tibia axial force - right (kN) | 3.2 |
| Foot acceleration (g) | |
| Left | 70 |
| Right | 87 |
Moderate overlap front: updated test
Rating applies to 2023-24 models
Tested vehicle: 2023 Ford F-150 Supercrew 4-door 4wd
The Ford F-150 was redesigned for the 2021 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Thigh/hip | |
| Leg/foot | |
| Driver restraints and dummy kinematics | |
| Rear passenger injury measures | |
| Head/neck | |
| Chest | |
| Thigh | |
| Rear passenger restraints and dummy kinematics |
|
View of the vehicle after the crash showing the airbags and damage to the occupant compartment.
The rear passenger dummy's head remained a safe distance from the front seatback.
Rear passenger dummy injury values indicate a likely risk of injury to the head or neck and chest. During the crash, the shoulder belt moved too far upward toward the dummy’s neck, compromising the effectiveness of the rear restraint system.
The rear passenger dummy's lap belt moved from the ideal position on the pelvis onto the abdomen, increasing the risk of abdominal injuries.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF2332 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 5 |
| Left (cm) | 4 |
| Center (cm) | 4 |
| Right (cm) | 5 |
| Brake pedal (cm) | 5 |
| Instrument panel rearward movement | |
| Left (cm) | 1 |
| Right (cm) | 0 |
| Steering column movement | |
| Upward (cm) | 2 |
| Rearward (cm) | -2 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Test ID | CEF2332 |
|---|---|
| Head | |
| HIC-15 | 312 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.2 |
| Extension bending moment (Nm) | 26 |
| Maximum Nij | 0.26 |
| Chest maximum compression (mm) | 21 |
| Femur (kN) | |
| Left | 0.2 |
| Right | 0.6 |
| Knee displacement (mm) | |
| Left | 1 |
| Right | 0 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.39 |
| Right | 0.47 |
| Tibia axial force (kN) | |
| Left | 2.2 |
| Right | 2.7 |
| Foot acceleration (g) | |
| Left | 47 |
| Right | 52 |
Rear passenger injury measures
| Test ID | CEF2332 |
|---|---|
| Head | |
| HIC-15 for head contact during forward excursion |
no contact
|
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 3.1 |
| Compression (kN) | 0.5 |
| Maximum Nij for head contact during forward excursion |
no contact
|
| Chest | |
| Chest index | 64 |
| Shoulder belt tension (kN) | 6.7 |
| Thigh (kN) | |
| Left femur compression | 0.4 |
| Right femur compression | 0.1 |
Side: updated test
Rating applies to 2023-24 models
Tested vehicle: 2023 Ford F-150 XL Supercrew 4-door 4wd
The Ford F-150 was redesigned for the 2021 model year. Two Side 2.0 tests of the F-150 crew cab were conducted, one by the Institute and the other by Ford as part of side crash test verification. Ratings are based on both tests, but the vehicle specifications shown below are based on the Institute’s test.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Rear passenger head protection Part of the dummy's head moved beyond the rear portion of the side curtain airbag and contacted the C-pillar. The head protection is inadequate. |
|
View of the vehicle just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.
Smeared greasepaint shows where the rear passenger dummy's head struck the C-pillar despite the deployment of the side curtain airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | VTS2305 | CES2308 |
|---|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -16.0 | -17.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | ||
Driver injury measures
| Test ID | VTS2305 | CES2308 |
|---|---|---|
| Head | ||
| HIC-15 | 40 | 56 |
| Peak gs at hard contact | no contact | no contact |
| Neck | ||
| Tension (kN) | 0.7 | 0.4 |
| Compression (kN) | 0.2 | 0.5 |
| Shoulder | ||
| Lateral deflection (mm) | 7 | 11 |
| Lateral force (kN) | 0.4 | 0.5 |
| Torso | ||
| Maximum deflection (mm) | 14 | 15 |
| Average deflection (mm) | 12 | 13 |
| Maximum deflection rate (m/s) | 2.55 | 1.81 |
| Maximum viscous criterion (m/s) | 0.07 | 0.12 |
| Pelvis | ||
| Combined force (kN) | 1.9 | 1.4 |
Passenger injury measures
| Test ID | VTS2305 | CES2308 |
|---|---|---|
| Head | ||
| HIC-15 | 249 | 194 |
| Peak gs at hard contact | 69 | 55 |
| Neck | ||
| Tension (kN) | 0.4 | 0.3 |
| Compression (kN) | 0.3 | 0.2 |
| Shoulder | ||
| Lateral deflection (mm) | 14 | 10 |
| Lateral force (kN) | 1.0 | 0.7 |
| Torso | ||
| Maximum deflection (mm) | 25 | 17 |
| Average deflection (mm) | 14 | 11 |
| Maximum deflection rate (m/s) | 2.15 | 1.65 |
| Maximum viscous criterion (m/s) | 0.20 | 0.08 |
| Pelvis | ||
| Combined force (kN) | 2.3 | 1.8 |
Seat belt reminders
Rating applies to 2022-24 models
| Overall evaluation | |
|---|---|
| Front row | |
| Unbelted occupant alert (audible & visual) | |
| Initiation time | |
| Duration | Negligible (under 8 seconds) |
| Volume | |
| Audio frequency | |
| Second row | |
| Startup status alert (visual) | |
| Initiation time | |
| Duration at least 60 seconds | |
| Belt disengaged alert (audible & visual) | |
| Initiation time | |
| Duration at least 30 seconds | |
| Volume | |
| Audio frequency |
| Background cabin sound pressure level at 24 km/h | 48 dB |
| Audible signal sound pressure level at 24 km/h | 64 dB |
| Difference between background and signal | 16.4 dB |
| Background cabin sound pressure level at 40 km/h | 52 dB |
| Audible signal sound pressure level at 40 km/h | 67 dB |
| Difference between background and signal | 15.1 dB |
| Dominant audio frequency | 744 Hz |
Child seat anchors
Rating applies to 2021-24 models
| Overall evaluation |
|
| Vehicle trim | XLT SuperCrew |
| Seat type | cloth |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.
It has 1 additional seating position with a tether anchor only.
| Overall evaluation |
|
| Vehicle trim | XLT SuperCrew |
| Seat type | cloth |
| G | Good |
| A | Acceptable |
| M | Marginal |
| P | Poor |
|
|
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. |
|
thether anchor symbol
|
Tether anchor |
|
lower anchor symbol
|
Lower anchors |
| Lower anchor(s) can be borrowed from adjacent positions(s) | |
|
|
No hardware available |
Details by seating position
| 1 | |
|---|---|
| Tether anchor | |
| hard-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| not too deep in seat | |
| not too much force needed to attach | |
| easy to maneuver around anchors | |
| 2 | |
| Tether anchor | |
| hard-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| none available | |
| 3 | |
| Tether anchor | |
| hard-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| not too deep in seat | |
| not too much force needed to attach | |
| easy to maneuver around anchors |
Seat position 21
| Lower anchor A | |
|---|---|
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 73 |
| Lower anchor B | |
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 71 |
| Tether anchor | |
| Location | Back wall |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
Seat position 22
| Lower anchor A | |
|---|---|
| No lower latch for this seat position | |
| Lower anchor B | |
| No lower latch for this seat position | |
| Tether anchor | |
| Location | Back wall |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
Seat position 23
| Lower anchor A | |
|---|---|
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 66 |
| Lower anchor B | |
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 68 |
| Tether anchor | |
| Location | Back wall |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
