2023 Ford F-150

large pickup / Crew cab pickup

Award applies only to vehicles with specific headlights

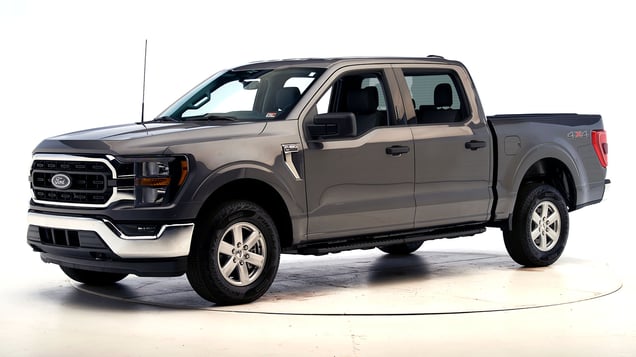

2023 Ford F-150 Crew cab pickup

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front: original test
Moderate overlap front: updated test
Side: original test
Side: updated test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights (varies by trim/option)
Front crash prevention: vehicle-to-vehicle
Standard system
Superior
Optional system
Superior
Front crash prevention: pedestrian (day)
Standard system
Superior
Optional system
Advanced
Front crash prevention: pedestrian (night)
Standard system
Superior

Seat belts & child restraints

Seat belt reminders
LATCH ease of use

Other available safety features

  • Optional blind spot detection
  • Optional lane departure warning
  • Optional lane departure prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2021-24 models built after March 2021

Tested vehicle: 2021 Ford F-150 XL SuperCrew

The Ford F-150 was redesigned for the 2021 model year. Beginning with 2021 models built after March, reinforcements were added to the left and right-hand side of the frame to improve occupant protection in frontal crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)

Driver-side small overlap frontal ratings are assigned by the Institute based on a test of an F-150 conducted by Ford as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTN2104
Lower occupant compartment
Lower hinge pillar max (cm) 7
Footrest (cm) 8
Left toepan (cm) 7
Brake pedal (cm) 8
Parking brake (cm)
Rocker panel lateral average (cm) 2
Upper occupant compartment
Steering column 3
Upper hinge pillar max (cm) 8
Upper dash (cm) 7
Lower instrument panel (cm) 6

Driver injury measures

Test ID VTN2104
Head
HIC-15 116
Peak gs at hard contact no contact
Neck
Tension (kN) 1.0
Extension bending moment (Nm) 6
Maximum Nij 0.17
Chest maximum compression (mm) 22
Femur (kN)
Left 0.5
Right 2.2
Knee displacement (mm)
Left 2
Right 2
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.75
Right 0.64
Tibia axial force (kN)
Left 4.3
Right 3.9
Foot acceleration (g)
Left 168
Right 140

How the driver-side small overlap front test is conducted

Small overlap front: passenger-side

Rating applies to 2021-24 models

Tested vehicle: 2021 Ford F-150 XLT SuperCrew

The Ford F-150 was redesigned for the 2021 model year. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test of an F-150 conducted by Ford as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID VTP2103
Lower occupant compartment
Lower hinge pillar max (cm) 14
Footrest (cm) 20
Right toepan (cm) 16
Center toepan (cm) 9
Rocker panel lateral average (cm) 3
Upper occupant compartment
Center dash (cm) 6
Upper hinge pillar max (cm) 13
Upper dash (cm) 12
Right lower dash (cm) 11

Passenger injury measures

Test ID VTP2103
Head
HIC-15 83
Peak gs at hard contact no contact
Neck
Tension (kN) 0.7
Extension bending moment (Nm) 21
Maximum Nij 0.20
Chest maximum compression (mm) 15
Femur (kN)
Left 1.6
Right 3.5
Knee displacement (mm)
Left 4
Right 10
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.49
Right 0.57
Tibia axial force (kN)
Left 1.0
Right 1.5
Foot acceleration (g)
Left 81
Right 165

Driver injury measures

Test ID VTP2103
Head
HIC-15 60
Peak gs at hard contact no contact
Neck
Tension (kN) 0.6
Extension bending moment (Nm) 6
Maximum Nij 0.14
Chest maximum compression (mm) 16
Femur (kN)
Left 0.0
Right 0.2
Knee displacement (mm)
Left 0
Right 2
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.31
Right 0.25
Tibia axial force (kN)
Left 0.4
Right 0.7
Foot acceleration (g)
Left 33
Right 39

How the passenger-side small overlap front test is conducted

Moderate overlap front: original test

Rating applies to 2021-24 models

Tested vehicle: 2021 Ford F-150 XLT SuperCrew

The Ford F-150 was redesigned for the 2021 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test of an F-150 conducted by Ford as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF2102
Footwell intrusion
Footrest (cm) 6
Left (cm) 7
Center (cm) 6
Right (cm) 4
Brake pedal (cm) 11
Instrument panel rearward movement
Left (cm) -1
Right (cm) -1
Steering column movement
Upward (cm) 0
Rearward (cm) -5
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF2102
Head
HIC-15 213
Peak gs at hard contact no contact
Neck
Tension (kN) 0.6
Extension bending moment (Nm) 20
Maximum Nij 0.21
Chest maximum compression (mm) 20
Legs
Femur force - left (kN) 0.8
Femur force - right (kN) 0.5
Knee displacement - left (mm) 1
Knee displacement - right (mm) 0
Maximum tibia index - left 0.49
Maximum tibia index - right 0.32
Tibia axial force - left (kN) 2.7
Tibia axial force - right (kN) 3.2
Foot acceleration (g)
Left 70
Right 87

How the moderate overlap front test is conducted

Moderate overlap front: updated test

Rating applies to 2023-24 models

Tested vehicle: 2023 Ford F-150 Supercrew 4-door 4wd

The Ford F-150 was redesigned for the 2021 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Thigh/hip
Leg/foot
Driver restraints and dummy kinematics
Rear passenger injury measures
Head/neck
Chest
Thigh
Rear passenger restraints and dummy kinematics

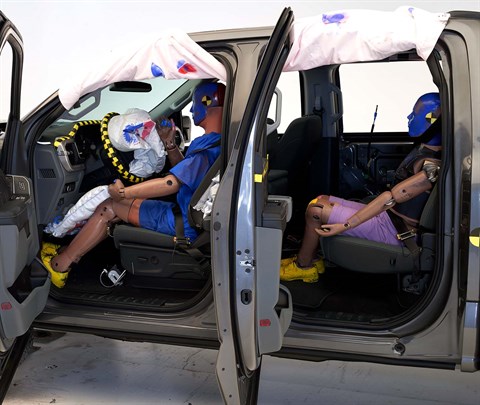

View of the vehicle after the crash showing the airbags and damage to the occupant compartment.

The rear passenger dummy's head remained a safe distance from the front seatback.

Rear passenger dummy injury values indicate a likely risk of injury to the head or neck and chest. During the crash, the shoulder belt moved too far upward toward the dummy’s neck, compromising the effectiveness of the rear restraint system.

The rear passenger dummy's lap belt moved from the ideal position on the pelvis onto the abdomen, increasing the risk of abdominal injuries.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF2332
Footwell intrusion
Footrest (cm) 5
Left (cm) 4
Center (cm) 4
Right (cm) 5
Brake pedal (cm) 5
Instrument panel rearward movement
Left (cm) 1
Right (cm) 0
Steering column movement
Upward (cm) 2
Rearward (cm) -2
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID CEF2332
Head
HIC-15 312
Peak gs at hard contact no contact
Neck
Tension (kN) 1.2
Extension bending moment (Nm) 26
Maximum Nij 0.26
Chest maximum compression (mm) 21
Femur (kN)
Left 0.2
Right 0.6
Knee displacement (mm)
Left 1
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.39
Right 0.47
Tibia axial force (kN)
Left 2.2
Right 2.7
Foot acceleration (g)
Left 47
Right 52

Rear passenger injury measures

Test ID CEF2332
Head
HIC-15 for head contact during forward excursion
no contact
Peak gs at hard contact no contact
Neck
Tension (kN) 3.1
Compression (kN) 0.5
Maximum Nij for head contact during forward excursion
no contact
Chest
Chest index 64
Shoulder belt tension (kN) 6.7
Thigh (kN)
Left femur compression 0.4
Right femur compression 0.1

How the updated moderate overlap front test is conducted

February 2024 adjustment to rating criteria

Side: original test

Rating applies to 2021-23 models

Tested vehicle: 2021 Ford F-150 XLT SuperCrew

The Ford F-150 was redesigned for the 2021 model year. Side ratings are assigned by the Institute based on a test of an F-150 conducted by Ford as part of side crash test verification.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS2102
B-pillar to longitudinal centerline of driver's seat (cm) -17.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS2102
Head HIC-15 90
Neck
Tension (kN) 1.0
Compression (kN) 0.3
Shoulder
Lateral deflection (mm) 24
Lateral force (kN) 1.3
Torso
Maximum deflection (mm) 32
Average deflection (mm) 30
Maximum deflection rate (m/s) 2.97
Maximum viscous criterion (m/s) 0.35
Pelvis
Iliac force (kN) 1.3
Acetabulum force (kN) 2.6
Combined force (kN) 3.8
Left femur
L-M force (kN) 0.7
L-M moment (Nm) 20
A-P moment (Nm) 85

Passenger injury measures

Test ID VTS2102
Head HIC-15 103
Neck
Tension (kN) 0.3
Compression (kN) 0.3
Shoulder
Lateral deflection (mm) 12
Lateral force (kN) 1.0
Torso
Maximum deflection (mm) 15
Average deflection (mm) 11
Maximum deflection rate (m/s) 2.20
Maximum viscous criterion (m/s) 0.14
Pelvis
Iliac force (kN) 1.1
Acetabulum force (kN) 1.2
Combined force (kN) 2.1
Left femur
L-M force (kN) 0.2
L-M moment (Nm) 55
A-P moment (Nm) 66

How the side crash test is conducted

Side: updated test

Rating applies to 2023-24 models

Tested vehicle: 2023 Ford F-150 XL Supercrew 4-door 4wd

The Ford F-150 was redesigned for the 2021 model year. Two Side 2.0 tests of the F-150 crew cab were conducted, one by the Institute and the other by Ford as part of side crash test verification. Ratings are based on both tests, but the vehicle specifications shown below are based on the Institute’s test.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis
Rear passenger head protection
Part of the dummy's head moved beyond the rear portion of the side curtain airbag and contacted the C-pillar. The head protection is inadequate.

View of the vehicle just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Smeared greasepaint shows where the rear passenger dummy's head struck the C-pillar despite the deployment of the side curtain airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS2305 CES2308
B-pillar to longitudinal centerline of driver's seat (cm) -16.0 -17.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS2305 CES2308
Head
HIC-15 40 56
Peak gs at hard contact no contact no contact
Neck
Tension (kN) 0.7 0.4
Compression (kN) 0.2 0.5
Shoulder
Lateral deflection (mm) 7 11
Lateral force (kN) 0.4 0.5
Torso
Maximum deflection (mm) 14 15
Average deflection (mm) 12 13
Maximum deflection rate (m/s) 2.55 1.81
Maximum viscous criterion (m/s) 0.07 0.12
Pelvis
Combined force (kN) 1.9 1.4

Passenger injury measures

Test ID VTS2305 CES2308
Head
HIC-15 249 194
Peak gs at hard contact 69 55
Neck
Tension (kN) 0.4 0.3
Compression (kN) 0.3 0.2
Shoulder
Lateral deflection (mm) 14 10
Lateral force (kN) 1.0 0.7
Torso
Maximum deflection (mm) 25 17
Average deflection (mm) 14 11
Maximum deflection rate (m/s) 2.15 1.65
Maximum viscous criterion (m/s) 0.20 0.08
Pelvis
Combined force (kN) 2.3 1.8

How the side crash test is conducted

Roof strength

Rating applies to 2015-23 models

Tested vehicle: 2015 Ford F-150 XLT SuperCrew

Overall evaluation
Curb weight4,651 lbs
Peak force27,215 lbs
Strength-to-weight ratio5.85

How the roof strength test is conducted

Head restraints & seats

Seat type: Power cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Power cloth seat
Geometry
Backset (mm) 18
Distance below top of head (mm) 20
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 12.2
Head contact time (ms) 56
Force rating 1
Neck forces
Max neck shear force (N) 14
Max neck tension (N) 587

How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.

Headlights

Ratings are given for 3 different headlight variations available on this vehicle.

Trim level(s)

  • Lariat trim equipped with 502A package
  • Raptor trim equipped with 801A package
  • King Ranch trim
  • Platinum trim
  • Limited trim
  • Tremor trim equipped with 402A package
Low-beam headlight typeLED projector
High-beam headlight typeLED projector
Curve-adaptive?Yes
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on both right curves, fair on the sharp left curve and inadequate on the gradual left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the left side of the road and fair on the right side. On curves, visibility was good in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and on both left curves.

Technical measurements for this test
Trim level(s)
  • Lariat trim equipped with 502A package
  • Raptor trim equipped with 801A package
  • King Ranch trim
  • Platinum trim
  • Limited trim
  • Tremor trim equipped with 402A package
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? Yes
High-beam assist? Yes
Overall rating
Applies to 2021-23 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 94.1 m None
Straightaway left edge 48.4 m None
250m radius right curve, right edge 76.9 m None
250m radius left curve, left edge 45.0 m None
150m radius right curve, right edge 65.2 m None
150m radius left curve, right edge 51.1 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 135.7 m
Straightaway left edge 154.1 m
250m radius right curve, right edge 80.9 m
250m radius left curve, left edge 92.9 m
150m radius right curve, right edge 65.9 m
150m radius left curve, left edge 67.9 m

Trim level(s)

  • XLT trim equipped with 302A package
  • Lariat trim
  • Tremor trim equipped with 401A package
  • Raptor trim
Low-beam headlight typeLED reflector
High-beam headlight typeLED reflector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was inadequate in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

Technical measurements for this test
Trim level(s)
  • XLT trim equipped with 302A package
  • Lariat trim
  • Tremor trim equipped with 401A package
  • Raptor trim
Low-beam headlight type LED reflector
High-beam headlight type LED reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2021-23 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 99.6 m None
Straightaway left edge 46.0 m None
250m radius right curve, right edge 51.0 m None
250m radius left curve, left edge 44.6 m None
150m radius right curve, right edge 43.9 m None
150m radius left curve, left edge 42.6 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 184.7 m
Straightaway left edge 169.0 m
250m radius right curve, right edge 59.5 m
250m radius left curve, left edge 57.7 m
150m radius right curve, right edge 47.9 m
150m radius left curve, left edge 48.2 m

Trim level(s)

  • XL trim
  • XLT trim
  • Tremor trim
Low-beam headlight typeHalogen reflector
High-beam headlight typeHalogen reflector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

Technical measurements for this test
Trim level(s)
  • XL trim
  • XLT trim
  • Tremor trim
Low-beam headlight type Halogen reflector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2021-23 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 73.7 m None
Straightaway left edge 30.7 m None
250m radius right curve, right edge 36.6 m None
250m radius left curve, left edge 33.8 m None
150m radius right curve, right edge 34.1 m None
150m radius left curve, left edge 29.9 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 130.0 m
Straightaway left edge 82.6 m
250m radius right curve, right edge 46.1 m
250m radius left curve, left edge 42.4 m
150m radius right curve, right edge 37.0 m
150m radius left curve, left edge 33.5 m

How headlights are evaluated

Front crash prevention: vehicle-to-vehicle

Ratings are given for 2 different trim variations available on this vehicle.

System details

  • Standard Pre-Collision Assist with Automatic Emergency Braking

Package name

  • Standard Ford Co-Pilot360 2.0 (camera only)

Overall evaluation

Applies to 2021-23 models

Superior
Superior
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

System details

  • Optional Pre-Collision Assist with Automatic Emergency Braking

Package name

  • Optional Ford Co-Pilot360 Assist 2.0 package (camera and radar)
  • optional on XLT, Lariat and Tremor
  • standard on King Ranch, Platinum, and Limited

Overall evaluation

Applies to 2021-23 models

Superior
Superior
with optional equipment
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

How front crash prevention is evaluated

Front crash prevention: pedestrian (day)

Ratings are given for 2 different systems available on this vehicle.

System details

  • standard Pre-Collision Assist with Automatic Emergency Braking (Co-Pilot360 2.0; camera only)

Overall evaluation

This rating applies to 2021-23 models of the following trim lines: XL trim, XLT trim, Raptor trim, Lariat trim, Tremor trim

Superior
Superior

Crossing child

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 19 mph.

Crossing adult

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

Parallel adult

  • In the 25 mph test, this vehicle avoided a collision.
  • In the 37 mph test, impact speed was reduced by 34 mph. A warning was issued 1.8 seconds before impact.

System details

  • optional Pre-Collision Assist with Automatic Emergency Braking (Co-Pilot360 Assist 2.0; camera and radar)

Overall evaluation

This rating applies to 2021-23 models of the following trim lines: XLT trim equipped with Ford Co-Pilot360 Assist 2.0 package, Lariat trim equipped with Ford Co-Pilot360 Assist 2.0 package, Tremor trim equipped with Ford Co-Pilot360 Assist 2.0 package, King Ranch trim, Platinum trim, Limited trim

Advanced
Advanced
with optional equipment

Crossing child

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 17 mph.

Crossing adult

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

Parallel adult

  • In the 25 mph test, this vehicle avoided a collision.
  • In the 37 mph test, impact speed was reduced by 30 mph. A warning was issued 2 seconds before impact.

Front crash prevention: pedestrian (night)

Night

System details

  • standard Pre-Collision Assist with Automatic Emergency Braking

Overall evaluation

Includes high-beam assist credit

This rating applies to 2023 models of the following trim lines: XL trim, XLT trim
Superior
Superior

Crossing adult

  • In the 12 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.

Parallel adult

  • In the 25 mph test, this vehicle avoided a collision when using its high beams. When using its low beams, this vehicle avoided a collision.
  • In the 37 mph test, impact speed was reduced by 36 mph when using its high beams and a warning was issued 2.1 seconds before impact. When using its low beams, impact speed was reduced by 35 mph and a warning was issued 1.4 seconds before impact.

How front crash prevention is evaluated

Seat belt reminders

Rating applies to 2022-24 models

Overall evaluation
Front row
Unbelted occupant alert (audible & visual)
Initiation time
DurationNegligible (under 8 seconds)
Volume
Audio frequency
Second row
Startup status alert (visual)
Initiation time
Duration at least 60 seconds
Belt disengaged alert (audible & visual)
Initiation time
Duration at least 30 seconds
Volume
Audio frequency
Technical measurements for this test
Background cabin sound pressure level at 24 km/h 48 dB
Audible signal sound pressure level at 24 km/h 64 dB
Difference between background and signal 16.4 dB
Background cabin sound pressure level at 40 km/h 52 dB
Audible signal sound pressure level at 40 km/h 67 dB
Difference between background and signal 15.1 dB
Dominant audio frequency 744 Hz

How seat belt reminders are evaluated

Child seat anchors

Rating applies to 2021-24 models

Overall evaluation
Vehicle trimXLT SuperCrew
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Overall evaluation
Vehicle trimXLT SuperCrew
Seat type cloth
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
hard-to-find location
other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
hard-to-find location
other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
hard-to-find location
other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 73
Lower anchor B
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 71
Tether anchor
Location Back wall
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Back wall
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

Seat position 23

1

Lower anchor A
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 66
Lower anchor B
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 68
Tether anchor
Location Back wall
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

How child seat anchors are evaluated
