Top Safety Pick

2010 Dodge Journey

midsize SUV / 4-door SUV

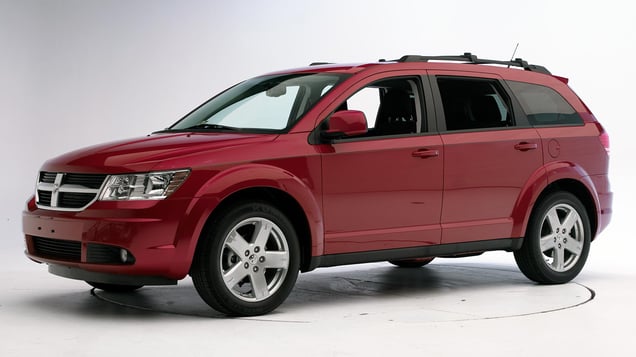

2010 Dodge Journey 4-door SUV

Crashworthiness

Rating overview
Small overlap front: driver-side
Moderate overlap front
Side
Roof strength
Head restraints & seats

Other available safety features

  • Optional daytime running lights

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2009-19 models

Tested vehicle: 2015 Dodge Journey SXT 4-door 4wd

The Dodge Journey was introduced in the 2009 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
The dummy’s head barely contacted the frontal airbag before sliding off the left side as the steering column moved 14 cm to the right. The side curtain airbag did not deploy, leaving the dummy's head vulnerable to contacts with side structure and outside objects.

Action shot taken during the small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was not maintained well.

During the crash, the dummy's head and torso barely contacted the airbag before sliding off to the left as the steering column moved to the right. The side curtain airbag did not deploy.

Door hinge pillar and instrument panel intrusion was extensive and contributed to a significant risk of injuries to the left hip and left knee and a moderate risk to the right lower leg.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1509
Lower occupant compartment
Lower hinge pillar max (cm) 21
Footrest (cm) 18
Left toepan (cm) 13
Brake pedal (cm) 7
Parking brake (cm) 22
Rocker panel lateral average (cm) 9
Upper occupant compartment
Steering column 12
Upper hinge pillar max (cm) 18
Upper dash (cm) 22
Lower instrument panel (cm) 20

Driver injury measures

Test ID CEN1509
Head
HIC-15 98
Peak gs at hard contact no contact
Neck
Tension (kN) 1.2
Extension bending moment (Nm) 12
Maximum Nij 0.26
Chest maximum compression (mm) 24
Femur (kN)
Left 6.3
Right 2.9
Knee displacement (mm)
Left 16
Right 5
Knee-thigh-hip injury risk (%)
Left 22
Right 0
Maximum tibia index
Left 0.80
Right 0.83
Tibia axial force (kN)
Left 1.0
Right 2.0
Foot acceleration (g)
Left 66
Right 65

How the driver-side small overlap front test is conducted

Moderate overlap front

Rating applies to 2009-19 models

Tested vehicle: 2009 Dodge Journey SXT 4-door 4wd

The Dodge Journey was introduced in the 2009 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Action shot taken during the frontal offset crash test.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.

Smeared pink greasepaint indicates where the dummy's head hit the roof rail and B-pillar during rebound. Head acceleration from this hit was low.

Intrusion into the driver's space was minimal, and all leg and foot injury measures were low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF0913
Footwell intrusion
Footrest (cm) 3
Left (cm) 12
Center (cm) 15
Right (cm) 11
Brake pedal (cm) 16
Instrument panel rearward movement
Left (cm) 1
Right (cm) 1
Steering column movement
Upward (cm) 2
Rearward (cm) -2
A-pillar rearward movement (cm) 1

Driver injury measures

Test ID CEF0913
Head
HIC-15 165
Peak gs at hard contact 15
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 16
Maximum Nij 0.21
Chest maximum compression (mm) 27
Legs
Femur force - left (kN) 0.4
Femur force - right (kN) 2.0
Knee displacement - left (mm) 1
Knee displacement - right (mm) 1
Maximum tibia index - left 0.35
Maximum tibia index - right 0.46
Tibia axial force - left (kN) 1.5
Tibia axial force - right (kN) 1.8
Foot acceleration (g)
Left 47
Right 111

How the moderate overlap front test is conducted

Side

Rating applies to 2009-19 models

Tested vehicle: 2009 Dodge Journey SXT 4-door 4wd with standard head curtain airbags for all three rows of seats and standard front seat-mounted torso airbags

The Dodge Journey was introduced in the 2009 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

View of the vehicle and barrier just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES0917
B-pillar to longitudinal centerline of driver's seat (cm) -16.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES0917
Head HIC-15 124
Neck
Tension (kN) 1.0
Compression (kN) 0.0
Shoulder
Lateral deflection (mm) 44
Lateral force (kN) 1.3
Torso
Maximum deflection (mm) 40
Average deflection (mm) 33
Maximum deflection rate (m/s) 5.35
Maximum viscous criterion (m/s) 0.76
Pelvis
Iliac force (kN) 0.5
Acetabulum force (kN) 1.7
Combined force (kN) 2.1
Left femur
L-M force (kN) 0.2
L-M moment (Nm) 60
A-P moment (Nm) -29

Passenger injury measures

Test ID CES0917
Head HIC-15 155
Neck
Tension (kN) 0.1
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 31
Lateral force (kN) 1.9
Torso
Maximum deflection (mm) 43
Average deflection (mm) 30
Maximum deflection rate (m/s) 3.19
Maximum viscous criterion (m/s) 0.70
Pelvis
Iliac force (kN) 0.5
Acetabulum force (kN) 3.8
Combined force (kN) 4.0
Left femur
L-M force (kN) 0.9
L-M moment (Nm) 45
A-P moment (Nm) 20

How the side crash test is conducted

Roof strength

Rating applies to 2009-19 models

Tested vehicle: 2010 Dodge Journey SXT 4-door 4wd

Overall evaluation
Curb weight 4,318 lbs
Peak force 19,649 lbs
Strength-to-weight ratio 4.55

How the roof strength test is conducted

Head restraints & seats

Rating applies to 2010-19 models

Seat type: Manual - power cloth seats AHR

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Manual - power cloth seats AHR
Geometry
Backset (mm) 44
Distance below top of head (mm) 9
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 12.2
Head contact time (ms) 51
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 285

How the head restraint & seat test is conducted
