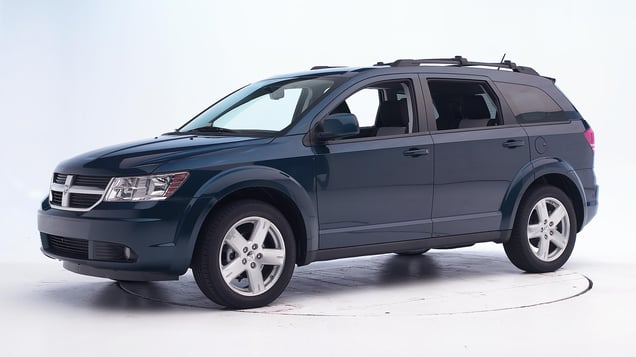

2009 Dodge Journey

Tested vehicle: 2015 Dodge Journey SXT 4-door 4wd
Rating applies to 2009-20 models

The Dodge Journey was introduced in the 2009 model year.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Evaluation criteria	Measurement
Test ID	CEN1509
Lower occupant compartment
Lower hinge pillar max (cm)	21
Footrest (cm)	18
Left toepan (cm)	13
Brake pedal (cm)	7
Parking brake (cm)	22
Rocker panel lateral average (cm)	9
Upper occupant compartment
Steering column	12
Upper hinge pillar max (cm)	18
Upper dash (cm)	22
Lower instrument panel (cm)	20

Driver injury measures

Evaluation criteria	Measurement
Test ID	CEN1509
Head
HIC-15	98
Peak gs at hard contact	no contact
Neck
Tension (kN)	1.2
Extension bending moment (Nm)	12
Maximum Nij	0.26
Chest maximum compression (mm)	24
Femur (kN)
Left	6.3
Right	2.9
Knee displacement (mm)
Left	16
Right	5
Knee-thigh-hip injury risk (%)
Left	22
Right	0
Maximum tibia index
Left	0.80
Right	0.83
Tibia axial force (kN)
Left	1.0
Right	2.0
Foot acceleration (g)
Left	66
Right	65

About the small overlap front test

Tested vehicle: 2009 Dodge Journey SXT 4-door 4wd
Rating applies to 2009-20 models

The Dodge Journey was introduced in the 2009 model year.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Evaluation criteria	Measurement
Test ID	CEF0913
Footwell intrusion
Footrest (cm)	3
Left (cm)	12
Center (cm)	15
Right (cm)	11
Brake pedal (cm)	16
Instrument panel rearward movement
Left (cm)	1
Right (cm)	1
Steering column movement
Upward (cm)	2
Rearward (cm)	-2
A-pillar rearward movement (cm)	1

Driver injury measures

Evaluation criteria	Measurement
Test ID	CEF0913
Head
HIC-15	165
Peak gs at hard contact	15
Neck
Tension (kN)	0.9
Extension bending moment (Nm)	16
Maximum Nij	0.21
Chest maximum compression (mm)	27
Legs
Femur force - left (kN)	0.4
Femur force - right (kN)	2.0
Knee displacement - left (mm)	1
Knee displacement - right (mm)	1
Maximum tibia index - left	0.35
Maximum tibia index - right	0.46
Tibia axial force - left (kN)	1.5
Tibia axial force - right (kN)	1.8
Foot acceleration (g)
Left	47
Right	111

About the original moderate overlap front test

Tested vehicle: 2009 Dodge Journey SXT 4-door 4wd with standard head curtain airbags for all three rows of seats and standard front seat-mounted torso airbags
Rating applies to 2009-20 models

The Dodge Journey was introduced in the 2009 model year.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID	CES0917
B-pillar to longitudinal centerline of driver's seat (cm)	-16.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Evaluation criteria	Measurement
Test ID	CES0917
Head HIC-15	124
Neck
Tension (kN)	1.0
Compression (kN)	0.0
Shoulder
Lateral deflection (mm)	44
Lateral force (kN)	1.3
Torso
Maximum deflection (mm)	40
Average deflection (mm)	33
Maximum deflection rate (m/s)	5.35
Maximum viscous criterion (m/s)	0.76
Pelvis
Iliac force (kN)	0.5
Acetabulum force (kN)	1.7
Combined force (kN)	2.1
Left femur
L-M force (kN)	0.2
L-M moment (Nm)	60
A-P moment (Nm)	-29

Passenger injury measures

Evaluation criteria	Measurement
Test ID	CES0917
Head HIC-15	155
Neck
Tension (kN)	0.1
Compression (kN)	0.2
Shoulder
Lateral deflection (mm)	31
Lateral force (kN)	1.9
Torso
Maximum deflection (mm)	43
Average deflection (mm)	30
Maximum deflection rate (m/s)	3.19
Maximum viscous criterion (m/s)	0.70
Pelvis
Iliac force (kN)	0.5
Acetabulum force (kN)	3.8
Combined force (kN)	4.0
Left femur
L-M force (kN)	0.9
L-M moment (Nm)	45
A-P moment (Nm)	20

About the original side crash test

Tested vehicle: 2010 Dodge Journey SXT 4-door 4wd
Rating applies to 2009-20 models
