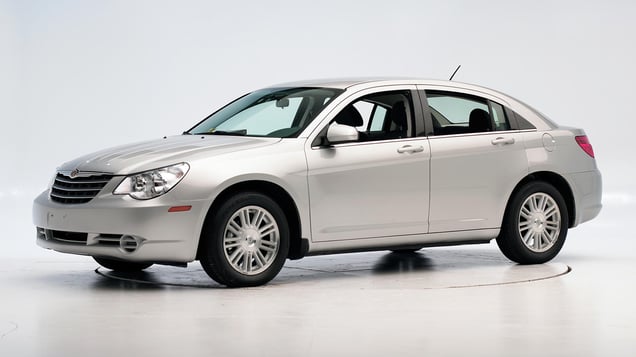

2009 Chrysler Sebring
midsize car / 4-door sedan
Small overlap front: driver-side
Tested vehicle: 2012 Dodge Avenger SE 4-door
Rating applies to 2007-10 models
The Dodge Avenger was introduced in the 2008 model year as a replacement for the Dodge Stratus, which was discontinued after the 2006 model year. The Chrysler Sebring sedan was redesigned for the 2007 model year. Both cars were restyled beginning with the 2011 model year, and the Sebring was renamed the 200.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics The dummy’s head barely contacted the frontal airbag before sliding off the left side, leaving the head vulnerable to contact with forward side structure. The side curtain airbag deployed too late during the crash, after the head had moved to the left, outboard of the inflating curtain, leaving the dummy's head vulnerable to contact with side structure and outside objects. The small side torso airbag deployed. |
|
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEN1216 |
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 18 |
| Footrest (cm) | 14 |
| Left toepan (cm) | 7 |
| Brake pedal (cm) | 3 |
| Parking brake (cm) | 0 |
| Rocker panel lateral average (cm) | 8 |
| Upper occupant compartment | |
| Steering column | 1 |
| Upper hinge pillar max (cm) | 9 |
| Upper dash (cm) | 10 |
| Lower instrument panel (cm) | 10 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEN1216 |
| Head | |
| HIC-15 | 103 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.6 |
| Extension bending moment (Nm) | 7 |
| Maximum Nij | 0.26 |
| Chest maximum compression (mm) | 26 |
| Femur (kN) | |
| Left | 2.5 |
| Right | 1.1 |
| Knee displacement (mm) | |
| Left | 3 |
| Right | 1 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.75 |
| Right | 0.27 |
| Tibia axial force (kN) | |
| Left | 1.8 |
| Right | 1.5 |
| Foot acceleration (g) | |
| Left | 82 |
| Right | 90 |
Moderate overlap front: original test
Tested vehicle: 2008 Dodge Avenger SXT 4-door
Rating applies to 2007-10 models
The Dodge Avenger was introduced in the 2008 model year as a replacement for the Dodge Stratus, which was discontinued after the 2006 model year. The Chrysler Sebring sedan was redesigned for the 2007 model year. Both cars were restyled beginning with the 2011 model year, and the Sebring was renamed the 200.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF0803 |
| Footwell intrusion | |
| Footrest (cm) | 7 |
| Left (cm) | 13 |
| Center (cm) | 8 |
| Right (cm) | 2 |
| Brake pedal (cm) | 4 |
| Instrument panel rearward movement | |
| Left (cm) | 1 |
| Right (cm) | 1 |
| Steering column movement | |
| Upward (cm) | 0 |
| Rearward (cm) | -6 |
| A-pillar rearward movement (cm) | 1 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF0803 |
| Head | |
| HIC-15 | 163 |
| Peak gs at hard contact | 25 |
| Neck | |
| Tension (kN) | 1.1 |
| Extension bending moment (Nm) | 12 |
| Maximum Nij | 0.24 |
| Chest maximum compression (mm) | 31 |
| Legs | |
| Femur force - left (kN) | 0.7 |
| Femur force - right (kN) | 1.7 |
| Knee displacement - left (mm) | 0 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.53 |
| Maximum tibia index - right | 0.58 |
| Tibia axial force - left (kN) | 2.0 |
| Tibia axial force - right (kN) | 2.9 |
| Foot acceleration (g) | |
| Left | 56 |
| Right | 53 |
Side: original test
Tested vehicle: 2008 Dodge Avenger SXT 4-door with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
Rating applies to 2007-10 models
The Dodge Avenger was introduced in the 2008 model year as a replacement for the Dodge Stratus, which was discontinued after the 2006 model year. The Chrysler Sebring sedan was redesigned for the 2007 model year. Both cars were restyled beginning with the 2011 model year, and the Sebring was renamed the 200.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Test ID | CES0806 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -16.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES0806 |
| Head HIC-15 | 179 |
| Neck | |
| Tension (kN) | 1.0 |
| Compression (kN) | 0.2 |
| Shoulder | |
| Lateral deflection (mm) | 57 |
| Lateral force (kN) | 1.8 |
| Torso | |
| Maximum deflection (mm) | 48 |
| Average deflection (mm) | 41 |
| Maximum deflection rate (m/s) | 6.32 |
| Maximum viscous criterion (m/s) | 0.76 |
| Pelvis | |
| Iliac force (kN) | 0.9 |
| Acetabulum force (kN) | 3.2 |
| Combined force (kN) | 3.9 |
| Left femur | |
| L-M force (kN) | 0.8 |
| L-M moment (Nm) | 158 |
| A-P moment (Nm) | 59 |
Passenger injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES0806 |
| Head HIC-15 | 184 |
| Neck | |
| Tension (kN) | 0.3 |
| Compression (kN) | 0.2 |
| Shoulder | |
| Lateral deflection (mm) | 34 |
| Lateral force (kN) | 1.6 |
| Torso | |
| Maximum deflection (mm) | 46 |
| Average deflection (mm) | 31 |
| Maximum deflection rate (m/s) | 3.64 |
| Maximum viscous criterion (m/s) | 0.72 |
| Pelvis | |
| Iliac force (kN) | 0.0 |
| Acetabulum force (kN) | 1.0 |
| Combined force (kN) | 1.0 |
| Left femur | |
| L-M force (kN) | 0.9 |
| L-M moment (Nm) | 184 |
| A-P moment (Nm) | -30 |
Roof strength
Tested vehicle: 2009 Dodge Avenger SXT 4-door
Rating applies to 2007-10 models
| Overall evaluation | |
|---|---|
| Curb weight | 3,275 lbs |
| Peak force | 14,508 lbs |
| Strength-to-weight ratio | 4.43 |
Head restraints & seats
Seat type: Power cloth seats with manual adjustable lumbar
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
Technical measurements for this test
| Seat type | Power cloth seats with manual adjustable lumbar |
|---|---|
| Geometry | |
| Backset (mm) | 32 |
| Distance below top of head (mm) | 38 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 10.4 |
| Head contact time (ms) | 64 |
| Force rating | 2 |
| Neck forces | |
| Max neck shear force (N) | 137 |
| Max neck tension (N) | 711 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
