2025 Chevrolet Trailblazer

small SUV / 4-door SUV

2025 Chevrolet Trailblazer 4-door SUV

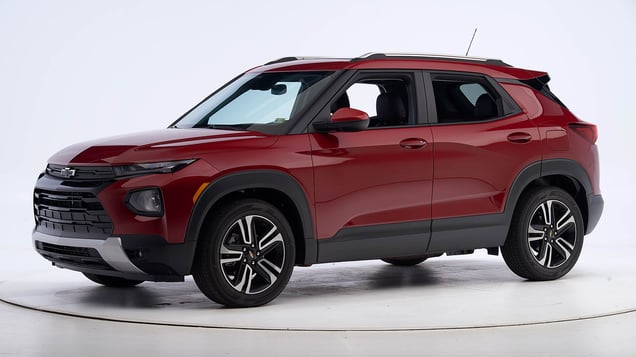

2021 Chevrolet Trailblazer shown

Crashworthiness

Rating overview
Evaluation criteriaRating
Small overlap front
G

Crash avoidance & mitigation

Evaluation criteriaRating
Front crash prevention: pedestrian (day)
Standard system
Advanced

Seat belts & child restraints

Evaluation criteriaRating
LATCH ease of use
A

Other available safety features

  • Optional blind spot detection
  • Standard lane departure warning

Key

GGood
AAcceptable
MMarginal
PPoor
Superior
Advanced
Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front

The small overlap front evaluation consists of a driver-side and a passenger-side component. If the results of the two evaluations differ, then the combined small overlap rating is equal to the lower rating.

Driver-side

Tested vehicle: 2021 Buick Encore GX Select 4-door 4wd
Rating applies to 2021-25 models built after July 2020

The Buick Encore GX was introduced in the 2020 model year as a replacement for the Buick Encore, while the 2021 Chevrolet Trailblazer returns after an 11-year absence from the market as a replacement for the Chevrolet Trax. Two small overlap frontal tests of the Encore GX were conducted, one by the Institute and the other by General Motors . Ratings are based on both tests, but the vehicle specifications shown below are based on the Institute’s test.

Evaluation criteriaRating
Overall driver-side evaluation
G
Structure and safety cage
G
Driver injury measures
Head/neck
G
Chest
G
Hip/thigh
G
Lower leg/foot
G
Driver restraints and dummy kinematics
G
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Evaluation criteriaMeasurement
Test ID VTN2105 CEN2104
Lower occupant compartment
Lower hinge pillar max (cm) 6 5
Footrest (cm) 5 2
Left toepan (cm) 2 1
Brake pedal (cm) 3 2
Parking brake (cm)
Rocker panel lateral average (cm) 1 1
Upper occupant compartment
Steering column 0 0
Upper hinge pillar max (cm) 6 4
Upper dash (cm) 6 2
Lower instrument panel (cm) 5 2

Driver injury measures

Evaluation criteriaMeasurement
Test ID VTN2105 CEN2104
Head
HIC-15 154 122
Peak gs at hard contact no contact no contact
Neck
Tension (kN) 1.1 1.1
Extension bending moment (Nm) 19 12
Maximum Nij 0.21 0.20
Chest maximum compression (mm) 20 24
Femur (kN)
Left 1.1 0.1
Right 1.0 0.2
Knee displacement (mm)
Left 1 0
Right 1 0
Knee-thigh-hip injury risk (%)
Left 0 0
Right 0 0
Maximum tibia index
Left 0.44 0.66
Right 0.42 0.50
Tibia axial force (kN)
Left 1.8 1.6
Right 1.3 1.8
Foot acceleration (g)
Left 54 50
Right 112 40

Passenger-side

Tested vehicle: 2021 Buick Encore GX Essence 4-door 4wd
Rating applies to 2021-25 models built after July 2020

The Buick Encore GX was introduced in the 2020 model year as a replacement for the Buick Encore, while the 2021 Chevrolet Trailblazer returns after an 11-year absence from the market as a replacement for the Chevrolet Trax. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test of a 2021 Encore GX conducted by General Motors.

Evaluation criteriaRating
Overall passenger-side evaluation
G
Structure and safety cage
G
Passenger injury measures
Head/neck
G
Chest
G
Hip/thigh
G
Lower leg/foot
A
Passenger restraints and dummy kinematics
G
Driver injury measures
Head/neck
G
Chest
G
Hip/thigh
G
Lower leg/foot
G
Driver restraints and dummy kinematics
G
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Evaluation criteriaMeasurement
Test ID VTP2109
Lower occupant compartment
Lower hinge pillar max (cm) 8
Footrest (cm) 4
Right toepan (cm) 0
Center toepan (cm) 2
Rocker panel lateral average (cm) 0
Upper occupant compartment
Center dash (cm) 5
Upper hinge pillar max (cm) 7
Upper dash (cm) 7
Right lower dash (cm) 6

Passenger injury measures

Evaluation criteriaMeasurement
Test ID VTP2109
Head
HIC-15 243
Peak gs at hard contact no contact
Neck
Tension (kN) 0.7
Extension bending moment (Nm) 14
Maximum Nij 0.18
Chest maximum compression (mm) 16
Femur (kN)
Left 1.9
Right 3.0
Knee displacement (mm)
Left 4
Right 10
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.75
Right 0.86
Tibia axial force (kN)
Left 2.7
Right 2.8
Foot acceleration (g)
Left 50
Right 38

Driver injury measures

Evaluation criteriaMeasurement
Test ID VTP2109
Head
HIC-15 168
Peak gs at hard contact no contact
Neck
Tension (kN) 1.1
Extension bending moment (Nm) 11
Maximum Nij 0.20
Chest maximum compression (mm) 22
Femur (kN)
Left 0.0
Right 0.1
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.26
Right 0.25
Tibia axial force (kN)
Left 0.5
Right 0.8
Foot acceleration (g)
Left 40
Right 55

About the small overlap front test

Front crash prevention: pedestrian (day)

System details

  • standard Automatic Emergency Braking/Front Pedestrian Braking
Overall evaluation
Advanced
Advanced
This rating applies to all 2021-25 models

Crossing child

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 22 mph.

Crossing adult

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 21 mph.

Parallel adult

  • In the 25 mph test, this vehicle avoided a collision.
  • In the 37 mph test, impact speed was reduced by 16 mph. A warning was issued 1.1 seconds before impact.

About the pedestrian front crash prevention test

Child seat anchors

Rating applies to 2021-25 models

Evaluation criteriaRating
Overall evaluation
A
Vehicle trimPreferred
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware. It has 1 additional seating position with a tether anchor only.

1 2 3
Rating iconRating
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

PositionRating
1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 6
Clearance angle (degrees) 77
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 22
Clearance angle (degrees) 77
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 18
Clearance angle (degrees) 81
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 15
Clearance angle (degrees) 79
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
