2022 Chevrolet Spark

minicar / 4-door hatchback

2022 Chevrolet Spark 4-door hatchback

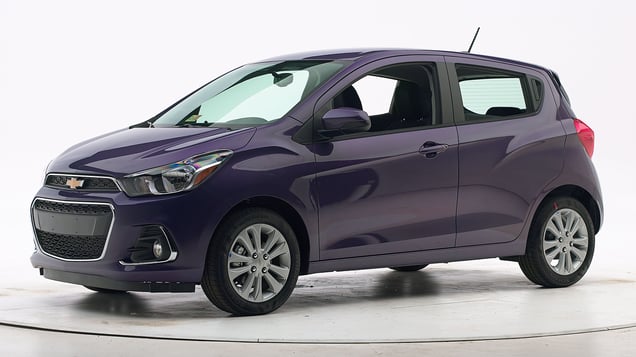

2016 Chevrolet Spark shown

Crashworthiness

Rating overview
Moderate overlap front: original test
Side: original test

Crash avoidance & mitigation

Front crash prevention: vehicle-to-vehicle
Optional system
Not tested
Front crash prevention: pedestrian (day)
Not available
Front crash prevention: pedestrian (night)
Not available

Seat belts & child restraints

LATCH ease of use

Other available safety features

  • Optional lane departure warning

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Moderate overlap front: original test

Rating applies to 2016-22 models

Tested vehicle: 2016 Chevrolet Spark 1LT 4-door

The Chevrolet Spark was redesigned for the 2016 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by General Motors.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1511
Footwell intrusion
Footrest (cm) 6
Left (cm) 11
Center (cm) 9
Right (cm) 7
Brake pedal (cm) 9
Instrument panel rearward movement
Left (cm) 1
Right (cm) 1
Steering column movement
Upward (cm) -2
Rearward (cm) -3
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1511
Head
HIC-15 212
Peak gs at hard contact no contact
Neck
Tension (kN) 1.0
Extension bending moment (Nm) 16
Maximum Nij 0.27
Chest maximum compression (mm) 25
Legs
Femur force - left (kN) 0.7
Femur force - right (kN) 2.1
Knee displacement - left (mm) 2
Knee displacement - right (mm) 3
Maximum tibia index - left 0.43
Maximum tibia index - right 0.59
Tibia axial force - left (kN) 1.9
Tibia axial force - right (kN) 3.4
Foot acceleration (g)
Left 58
Right 75

About the original moderate overlap front test

Side: original test

Rating applies to 2016-22 models

Tested vehicle: 2016 Chevrolet Spark 1LT 4-door

The Chevrolet Spark was redesigned for the 2016 model year. Two side tests of the Spark were conducted, one by the Institute and the other by General Motors. Ratings are based on both tests.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

View of the vehicle just after the Institute's crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment (Institute test car shown).

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag in the Institute's test.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1510 CES1610
B-pillar to longitudinal centerline of driver's seat (cm) -13.5 -13.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1510 CES1610
Head HIC-15 614 433
Neck
Tension (kN) 1.7 1.5
Compression (kN) 0.3 0.4
Shoulder
Lateral deflection (mm) 45 39
Lateral force (kN) 1.7 1.4
Torso
Maximum deflection (mm) 48 42
Average deflection (mm) 42 38
Maximum deflection rate (m/s) 4.97 4.36
Maximum viscous criterion (m/s) 1.09 0.93
Pelvis
Iliac force (kN) 2.8 2.7
Acetabulum force (kN) 3.2 2.4
Combined force (kN) 6.1 5.1
Left femur
L-M force (kN) 1.6 1.5
L-M moment (Nm) 300 302
A-P moment (Nm) 38 55

Passenger injury measures

Test ID VTS1510 CES1610
Head HIC-15 270 207
Neck
Tension (kN) 0.4 0.3
Compression (kN) 0.6 0.7
Shoulder
Lateral deflection (mm) 34 26
Lateral force (kN) 1.3 1.2
Torso
Maximum deflection (mm) 40 34
Average deflection (mm) 35 30
Maximum deflection rate (m/s) 2.06 2.07
Maximum viscous criterion (m/s) 0.39 0.31
Pelvis
Iliac force (kN) 0.8 0.7
Acetabulum force (kN) 2.3 2.2
Combined force (kN) 3.0 2.6
Left femur
L-M force (kN) 0.8 0.8
L-M moment (Nm) 31 87
A-P moment (Nm) 69 38

About the original side crash test

Front crash prevention: vehicle-to-vehicle

System details

  • Optional Automatic Emergency Braking
  • Optional Forward Collision Alert

Package name

  • Optional Driver Confidence Package

Overall evaluation

Applies to 2020-22 models

  • This system meets the requirements for forward collision warning.
  • Autobrake not tested.

About the original front crash prevention test

Child seat anchors

Rating applies to 2016-22 models

Overall evaluation
Vehicle trim1LT
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

Overall evaluation
Vehicle trim1LT
Seat type cloth
1 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
3
Tether anchor
hard-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 11
Clearance angle (degrees) 65
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 10
Clearance angle (degrees) 59
Tether anchor
Location Bottom seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 14
Clearance angle (degrees) 58
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 16
Clearance angle (degrees) 64
Tether anchor
Location Bottom seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

About the child seat anchor evaluation
