Moderate overlap front: original test
Rating applies to 2016-19 models

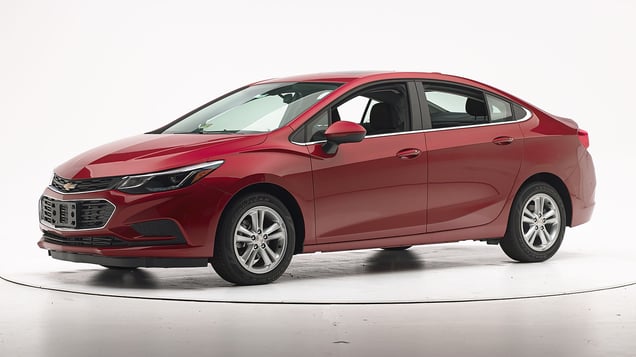

Tested vehicle: 2016 Chevrolet Cruze LTZ 4-door
The Chevrolet Cruze was redesigned for the 2016 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by General Motors as part of frontal crash test verification.
The earlier design remained in production for 2016 model year only, available new only to fleet buyers, and was called the Chevrolet Cruze Limited. The ratings on this page do not apply to the Cruze Limited.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTF1516 |
---|---|
Footwell intrusion | |
Footrest (cm) | 4 |
Left (cm) | 3 |
Center (cm) | 3 |
Right (cm) | 4 |
Brake pedal (cm) | 4 |
Instrument panel rearward movement | |
Left (cm) | -1 |
Right (cm) | -1 |
Steering column movement | |
Upward (cm) | -2 |
Rearward (cm) | -7 |
A-pillar rearward movement (cm) | 0 |
Driver injury measures
Test ID | VTF1516 |
---|---|
Head | |
HIC-15 | 178 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.1 |
Extension bending moment (Nm) | 11 |
Maximum Nij | 0.21 |
Chest maximum compression (mm) | 30 |
Legs | |
Femur force - left (kN) | 0.7 |
Femur force - right (kN) | 1.0 |
Knee displacement - left (mm) | 1 |
Knee displacement - right (mm) | 1 |
Maximum tibia index - left | 0.32 |
Maximum tibia index - right | 0.30 |
Tibia axial force - left (kN) | 2.6 |
Tibia axial force - right (kN) | 2.3 |
Foot acceleration (g) | |
Left | 87 |
Right | 63 |
Side: original test
Rating applies to 2016-19 models
Tested vehicle: 2016 Chevrolet Cruze LTZ 4-door
The Chevrolet Cruze was redesigned for the 2016 model year. Side ratings are assigned by the Institute based on a test conducted by General Motors as part of side crash test verification.
The earlier design remained in production for 2016 model year only, available new only to fleet buyers, and was called the Chevrolet Cruze Limited. The ratings on this page do not apply to the Cruze Limited.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
Measures of occupant compartment intrusion on driver side
Test ID | VTS1515 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -17.5 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | VTS1515 |
---|---|
Head HIC-15 | 255 |
Neck | |
Tension (kN) | 1.2 |
Compression (kN) | 0.1 |
Shoulder | |
Lateral deflection (mm) | 36 |
Lateral force (kN) | 1.5 |
Torso | |
Maximum deflection (mm) | 36 |
Average deflection (mm) | 33 |
Maximum deflection rate (m/s) | 7.30 |
Maximum viscous criterion (m/s) | 0.77 |
Pelvis | |
Iliac force (kN) | 1.3 |
Acetabulum force (kN) | 1.1 |
Combined force (kN) | 2.4 |
Left femur | |
L-M force (kN) | 0.8 |
L-M moment (Nm) | 41 |
A-P moment (Nm) | 130 |
Passenger injury measures
Test ID | VTS1515 |
---|---|
Head HIC-15 | 171 |
Neck | |
Tension (kN) | 0.3 |
Compression (kN) | 0.4 |
Shoulder | |
Lateral deflection (mm) | 16 |
Lateral force (kN) | 1.0 |
Torso | |
Maximum deflection (mm) | 26 |
Average deflection (mm) | 22 |
Maximum deflection rate (m/s) | 2.14 |
Maximum viscous criterion (m/s) | 0.17 |
Pelvis | |
Iliac force (kN) | 0.4 |
Acetabulum force (kN) | 1.5 |
Combined force (kN) | 1.7 |
Left femur | |
L-M force (kN) | 0.8 |
L-M moment (Nm) | 16 |
A-P moment (Nm) | 148 |
Front crash prevention: vehicle-to-vehicle
Child seat anchors
Rating applies to 2017-19 models
Overall evaluation | |
Vehicle trim | LT |
Seat type | cloth |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.
It has 1 additional seating position with a tether anchor only.
Overall evaluation | |
Vehicle trim | LT |
Seat type | cloth |
G | Good |
A | Acceptable |
M | Marginal |
P | Poor |
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
Lower anchor(s) can be borrowed from adjacent positions(s) | |
No hardware available |
Details by seating position
1 | |
---|---|
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
too deep in seat | |
too much force needed to attach | |
easy to maneuver around anchors | |
2 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
none available | |
3 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
too deep in seat | |
not too much force needed to attach | |
easy to maneuver around anchors |
Seat position 21
Lower anchor A | |
---|---|
Open access rated | No |
Depth (cm) | 4-6 |
Force (lbs) | 15 |
Clearance angle (degrees) | 88 |
Lower anchor B | |
Open access rated | No |
Depth (cm) | 4-6 |
Force (lbs) | 15 |
Clearance angle (degrees) | 83 |
Tether anchor | |
Location | Rear deck |
Confusing hardware present | No |
Has contrasting label within 3 inches of tether anchor |
No |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 22
Lower anchor A | |
---|---|
No lower latch for this seat position | |
Lower anchor B | |
No lower latch for this seat position | |
Tether anchor | |
Location | Rear deck |
Confusing hardware present | No |
Has contrasting label within 3 inches of tether anchor |
No |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 23
Lower anchor A | |
---|---|
Open access rated | No |
Depth (cm) | 4-6 |
Force (lbs) | could not measure |
Clearance angle (degrees) | 85 |
Lower anchor B | |
Open access rated | No |
Depth (cm) | 4-6 |
Force (lbs) | 27 |
Clearance angle (degrees) | 85 |
Tether anchor | |
Location | Rear deck |
Confusing hardware present | No |
Has contrasting label within 3 inches of tether anchor |
No |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
