2010 Chevrolet Cobalt

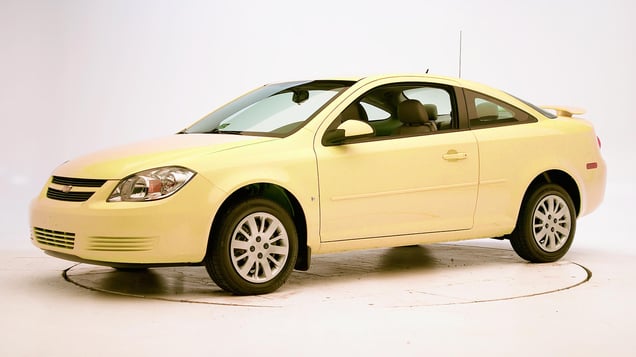

Tested vehicle: 2009 Chevrolet Cobalt LS 2-door
Rating applies to 2005-10 models

The Chevrolet Cobalt was introduced in the 2005 model year, and the Pontiac G5 (available only as a 2-door) was introduced in the 2007 model year. The Pontiac G5 was discontinued after the 2009 model year and the Cobalt after the 2010 model year.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Evaluation criteria	Measurement
Test ID	CEF0907
Footwell intrusion
Footrest (cm)	10
Left (cm)	12
Center (cm)	17
Right (cm)	15
Brake pedal (cm)	11
Instrument panel rearward movement
Left (cm)	7
Right (cm)	6
Steering column movement
Upward (cm)	6
Rearward (cm)	5
A-pillar rearward movement (cm)	7

Driver injury measures

Evaluation criteria	Measurement
Test ID	CEF0907
Head
HIC-15	172
Peak gs at hard contact	negligible
Neck
Tension (kN)	0.9
Extension bending moment (Nm)	41
Maximum Nij	0.38
Chest maximum compression (mm)	26
Legs
Femur force - left (kN)	0.9
Femur force - right (kN)	0.8
Knee displacement - left (mm)	0
Knee displacement - right (mm)	0
Maximum tibia index - left	0.59
Maximum tibia index - right	0.88
Tibia axial force - left (kN)	2.1
Tibia axial force - right (kN)	2.6
Foot acceleration (g)
Left	72
Right	82

About the original moderate overlap front test

Tested vehicle: 2009 Chevrolet Cobalt LT 2-door with standard front and rear head curtain airbags
Rating applies to 2009-10 models built after May 2009

The Chevrolet Cobalt was introduced in the 2005 model year, and the Pontiac G5 (available only as a 2-door) was introduced in the 2007 model year. Beginning with 2008 models, side airbags were made standard (they were optional in 2005-07 models). The Pontiac G5 was discontinued after the 2009 model year and the Cobalt after the 2010 model year.

Starting with 2009 models manufactured after May 2009, the side curtain airbags of the 2-door models were modified to improve occupant protection in side-impact crashes (note: information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on or near the driver door). The tested car was manufactured after the modifications had been made.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID	CES0913
B-pillar to longitudinal centerline of driver's seat (cm)	-2.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Evaluation criteria	Measurement
Test ID	CES0913
Head HIC-15	635
Neck
Tension (kN)	1.6
Compression (kN)	0.0
Shoulder
Lateral deflection (mm)
Lateral force (kN)
Torso
Maximum deflection (mm)	43
Average deflection (mm)	32
Maximum deflection rate (m/s)	4.78
Maximum viscous criterion (m/s)	0.90
Pelvis
Iliac force (kN)	4.0
Acetabulum force (kN)	1.2
Combined force (kN)	4.8
Left femur
L-M force (kN)	0.3
L-M moment (Nm)	82
A-P moment (Nm)	30

Passenger injury measures

Evaluation criteria	Measurement
Test ID	CES0913
Head HIC-15	176
Neck
Tension (kN)	1.1
Compression (kN)	0.4
Shoulder
Lateral deflection (mm)	39
Lateral force (kN)	1.4
Torso
Maximum deflection (mm)	34
Average deflection (mm)	28
Maximum deflection rate (m/s)	3.91
Maximum viscous criterion (m/s)	0.43
Pelvis
Iliac force (kN)	0.6
Acetabulum force (kN)	2.9
Combined force (kN)	3.0
Left femur
L-M force (kN)	0.9
L-M moment (Nm)	153
A-P moment (Nm)	41

About the original side crash test

Seat type: Manual cloth seats

Technical measurements for this test

Seat type	Manual cloth seats
Geometry
Backset (mm)	60
Distance below top of head (mm)	45
Seat design parameters
Pass/fail	Pass
Max T1 acceleration (g)	10.7
Head contact time (ms)	64
Force rating	2
Neck forces
Max neck shear force (N)	24
Max neck tension (N)	782

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
