2019 Cadillac XT5

midsize luxury SUV / 4-door SUV

2019 Cadillac XT5 4-door SUV

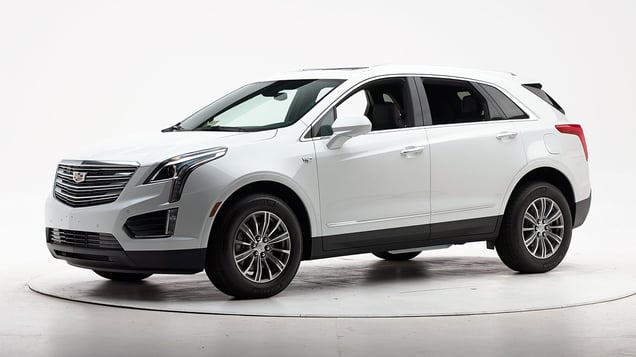

2017 Cadillac XT5 shown

Crashworthiness

Rating overview
Small overlap front: driver-side
Moderate overlap front
Side
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights (varies by trim/option)
Front crash prevention
Optional system
Superior
Optional system
Advanced

Child seat anchors

LATCH ease of use

Other available safety features

  • Standard daytime running lights
  • Optional blind spot detection
  • Optional lane departure warning
  • Optional lane departure prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2017-19 models

Tested vehicle: 2017 Cadillac XT5 Luxury 4-door 4wd

The Cadillac XT5 was introduced in the 2017 model year. It is the replacement for the Cadillac SRX.

Overall evaluation
Structure and safety cage
Injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Restraints and dummy kinematics

Action shot taken during the small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained very well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

The driver's space was maintained well, and risk of injuries to the dummy's legs and feet was low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1625
Lower occupant compartment
Lower hinge pillar max (cm) 1
Footrest (cm) 3
Left toepan (cm) 8
Brake pedal (cm) 1
Parking brake (cm)
Rocker panel lateral average (cm) 1
Upper occupant compartment
Steering column 0
Upper hinge pillar max (cm) 1
Upper dash (cm) 1
Lower instrument panel (cm) 1

Driver injury measures

Test ID CEN1625
Head
HIC-15 129
Peak gs at hard contact no contact
Neck
Tension (kN) 0.5
Extension bending moment (Nm) 23
Maximum Nij 0.23
Chest maximum compression (mm) 24
Femur (kN)
Left 0.3
Right 0.6
Knee displacement (mm)
Left 0
Right 2
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.41
Right 0.29
Tibia axial force (kN)
Left 1.2
Right 1.4
Foot acceleration (g)
Left 51
Right 51

How the driver-side small overlap front test is conducted

Moderate overlap front

Rating applies to 2017-19 models

Tested vehicle: 2017 Cadillac XT5 Premium Luxury 4-door 4wd

The Cadillac XT5 was introduced in the 2017 model year. It is the replacement for the Cadillac SRX. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by General Motors as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1617
Footwell intrusion
Footrest (cm) 3
Left (cm) 7
Center (cm) 6
Right (cm) 5
Brake pedal (cm) 3
Instrument panel rearward movement
Left (cm) 0
Right (cm) 0
Steering column movement
Upward (cm) 1
Rearward (cm) 0
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1617
Head
HIC-15 135
Peak gs at hard contact no contact
Neck
Tension (kN) 0.7
Extension bending moment (Nm) 7
Maximum Nij 0.16
Chest maximum compression (mm) 29
Legs
Femur force - left (kN) 0.5
Femur force - right (kN) 1.3
Knee displacement - left (mm) 1
Knee displacement - right (mm) 1
Maximum tibia index - left 0.53
Maximum tibia index - right 0.46
Tibia axial force - left (kN) 2.1
Tibia axial force - right (kN) 3.4
Foot acceleration (g)
Left 38
Right 89

How the moderate overlap front test is conducted

Side

Rating applies to 2017-19 models

Tested vehicle: 2017 Cadillac XT5 Luxury 4-door 4wd

The Cadillac XT5 was introduced in the 2017 model year. It is the replacement for the Cadillac SRX. Side ratings are assigned by the Institute based on a test conducted by General Motors as part of side crash test verification.

Rating applies to 2017-19 models

Tested vehicle:2017 Cadillac XT5 Luxury 4-door 4wd

The Cadillac XT5 was introduced in the 2017 model year. It is the replacement for the Cadillac SRX. Side ratings are assigned by the Institute based on a test conducted by General Motors as part of side crash test verification.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1616
B-pillar to longitudinal centerline of driver's seat (cm) -20.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1616
Head HIC-15 156
Neck
Tension (kN) 0.5
Compression (kN) 1.2
Shoulder
Lateral deflection (mm) 29
Lateral force (kN) 1.6
Torso
Maximum deflection (mm) 33
Average deflection (mm) 31
Maximum deflection rate (m/s) 2.75
Maximum viscous criterion (m/s) 0.40
Pelvis
Iliac force (kN) 1.1
Acetabulum force (kN) 1.1
Combined force (kN) 2.2
Left femur
L-M force (kN) 0.6
L-M moment (Nm) 33
A-P moment (Nm) 20

Passenger injury measures

Test ID VTS1616
Head HIC-15 179
Neck
Tension (kN) 0.5
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 33
Lateral force (kN) 1.9
Torso
Maximum deflection (mm) 33
Average deflection (mm) 23
Maximum deflection rate (m/s) 3.47
Maximum viscous criterion (m/s) 0.40
Pelvis
Iliac force (kN) 0.4
Acetabulum force (kN) 2.5
Combined force (kN) 2.7
Left femur
L-M force (kN) 0.5
L-M moment (Nm) 33
A-P moment (Nm) 24

How the side crash test is conducted

Roof strength

Rating applies to 2017-19 models

Tested vehicle: 2017 Cadillac XT5 Luxury 4-door 4wd

Overall evaluation
Curb weight 4,267 lbs
Peak force 19,840 lbs
Strength-to-weight ratio 4.65

How the roof strength test is conducted

Head restraints & seats

Rating applies to 2017-19 models

Seat type: Power leather seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Power leather seat
Geometry
Backset (mm) 22
Distance below top of head (mm) 30
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 13.6
Head contact time (ms) 57
Force rating 1
Neck forces
Max neck shear force (N) 60
Max neck tension (N) 470

How the head restraint & seat test is conducted

Front crash prevention

Ratings are given for 2 different trim variations available on this vehicle.

System details

  • Optional Forward Automatic Braking

Package name

  • Optional Driver Assist Package

Applies to 2017-19 models

Overall evaluation

  • This system meets the requirements for forward collision warning.
  • In the 12 mph IIHS test, this vehicle avoided a collision.
  • In the 25 mph IIHS test, impact speed was reduced by 24 mph.
Superior
Superior
with optional equipment

System details

  • Optional Low Speed Forward Automatic Braking

Package name

  • Optional Luxury Driver Awareness Package or Premium Luxury Trim

Applies to 2017-19 models

Overall evaluation

  • This system meets the requirements for forward collision warning.
  • In the 12 mph IIHS test, this vehicle avoided a collision.
  • In the 25 mph IIHS test, impact speed was reduced by 9 mph.
Advanced
Advanced
with optional equipment

How front crash prevention is evaluated

Headlights

Ratings are given for 3 different headlight variations available on this vehicle.

Trim level(s)

  • Luxury trim equipped with LED Headlamp package
  • Premium Luxury trim
  • Platinum trim
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was good on the left side of the road and fair on the right side. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was inadequate in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

Technical measurements for this test
Trim level(s)
  • Luxury trim equipped with LED Headlamp package
  • Premium Luxury trim
  • Platinum trim
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2017-19 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 88.2 m None
Straightaway left edge 58.8 m None
250m radius right curve, right edge 45.0 m None
250m radius left curve, left edge 46.8 m None
150m radius right curve, right edge 39.9 m None
150m radius left curve, left edge 40.3 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 106.7 m
Straightaway left edge 103.5 m
250m radius right curve, right edge 54.5 m
250m radius left curve, left edge 54.3 m
150m radius right curve, right edge 43.4 m
150m radius left curve, left edge 43.2 m

Trim level(s)

  • Luxury trim
Low-beam headlight type Halogen projector
High-beam headlight type Halogen projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway, on both left curves and on the gradual right curve.

Technical measurements for this test
Trim level(s)
  • Luxury trim
Low-beam headlight type Halogen projector
High-beam headlight type Halogen projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2017-19 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 85.2 m None
Straightaway left edge 47.6 m None
250m radius right curve, right edge 50.2 m None
250m radius left curve, left edge 43.4 m None
150m radius right curve, right edge 39.4 m None
150m radius left curve, left edge 37.9 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 140.5 m
Straightaway left edge 77.8 m
250m radius right curve, right edge 50.6 m
250m radius left curve, left edge 50.4 m
150m radius right curve, right edge 39.0 m
150m radius left curve, left edge 39.1 m

Trim level(s)

  • Base trim
Low-beam headlight type Halogen projector
High-beam headlight type Halogen projector
Curve-adaptive? No
High-beam assist? No
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination

Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.

Technical measurements for this test
Trim level(s)
  • Base trim
Low-beam headlight type Halogen projector
High-beam headlight type Halogen projector
Curve-adaptive? No
High-beam assist? No
Overall rating
Applies to 2017-19 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 85.2 m None
Straightaway left edge 47.6 m None
250m radius right curve, right edge 50.2 m None
250m radius left curve, left edge 43.4 m None
150m radius right curve, right edge 39.4 m None
150m radius left curve, left edge 37.9 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 140.5 m
Straightaway left edge 77.8 m
250m radius right curve, right edge 50.6 m
250m radius left curve, left edge 50.4 m
150m radius right curve, right edge 39.0 m
150m radius left curve, left edge 39.1 m

How headlights are evaluated

Child seat anchors

Applies to 2017-19 models

Overall evaluation
Vehicle trim Luxury
Seat type leather

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

1 2 3
G Good
A Acceptable
M Marginal
P Poor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 17
Clearance angle (degrees) 84
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 27
Clearance angle (degrees) 78
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
No

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
No

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 15
Clearance angle (degrees) 82
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 13
Clearance angle (degrees) 84
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
No

How child seat anchors are evaluated
