2010 Cadillac STS

large luxury car / 4-door sedan

2010 Cadillac STS 4-door sedan

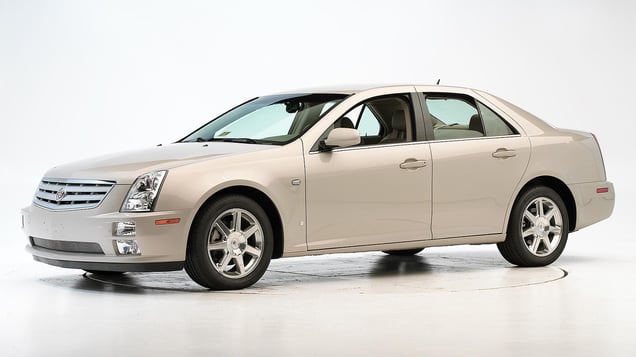

2007 Cadillac STS shown

Crashworthiness

Rating overview
Moderate overlap front: original test
Side: original test
Head restraints & seats

Other available safety features

  • Standard daytime running lights
  • Optional blind spot detection
  • Optional lane departure warning

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Moderate overlap front: original test

Rating applies to 2005-11 models

Tested vehicle: 2005 Cadillac STS 4-door

The Cadillac STS was introduced in the 2005 model year as a replacement for the Seville.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Action shot taken during the frontal offset crash test.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained very well.

Smeared greasepaint indicates where the dummy’s head hit the B-pillar, roof rail, grab handle, and head restraint. Head accelerations from these hits were low.

Intrusion into the driver's space was minimal, and all leg and foot injury measures were low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF0519
Footwell intrusion
Footrest (cm) 4
Left (cm) 6
Center (cm) 8
Right (cm) 7
Brake pedal (cm) 3
Instrument panel rearward movement
Left (cm) 0
Right (cm) 1
Steering column movement
Upward (cm) 3
Rearward (cm) -2
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID CEF0519
Head
HIC-15 451
Peak gs at hard contact 79
Neck
Tension (kN) 1.1
Extension bending moment (Nm) 19
Maximum Nij 0.25
Chest maximum compression (mm) 24
Legs
Femur force - left (kN) 1.7
Femur force - right (kN) 1.8
Knee displacement - left (mm) 0
Knee displacement - right (mm) 0
Maximum tibia index - left 0.30
Maximum tibia index - right 0.43
Tibia axial force - left (kN) 2.3
Tibia axial force - right (kN) 3.0
Foot acceleration (g)
Left 51
Right 50

How the moderate overlap front test is conducted

Side: original test

Rating applies to 2007-11 models built after August 2006

Tested vehicle: 2007 Cadillac STS 4-door with standard front and rear head curtain airbags and standard front seat-mounted torso airbags

The Cadillac STS was introduced in the 2005 model year as a replacement for the Seville. Beginning with 2007 models built after August 2006, the B-pillars were reinforced and the front door trim panels and side torso airbags were changed to improve occupant protection in side-impact crashes (note: information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on or near the driver door). The tested car was manufactured after the modifications had been made.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

View of the vehicle and barrier just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES0718
B-pillar to longitudinal centerline of driver's seat (cm) -7.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES0718
Head HIC-15 340
Neck
Tension (kN) 1.0
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 35
Lateral force (kN) 1.6
Torso
Maximum deflection (mm) 42
Average deflection (mm) 39
Maximum deflection rate (m/s) 5.26
Maximum viscous criterion (m/s) 1.16
Pelvis
Iliac force (kN) 3.8
Acetabulum force (kN) 3.6
Combined force (kN) 7.2
Left femur
L-M force (kN) 0.4
L-M moment (Nm) 144
A-P moment (Nm) -32

Passenger injury measures

Test ID CES0718
Head HIC-15 81
Neck
Tension (kN) 0.7
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 16
Lateral force (kN) 1.2
Torso
Maximum deflection (mm) 27
Average deflection (mm) 19
Maximum deflection rate (m/s) 2.75
Maximum viscous criterion (m/s) 0.24
Pelvis
Iliac force (kN) 0.1
Acetabulum force (kN) 1.8
Combined force (kN) 1.8
Left femur
L-M force (kN) 0.3
L-M moment (Nm) 65
A-P moment (Nm) 21

How the side crash test is conducted

Head restraints & seats

Seat type: Seats without adjustable lumbar

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Seats without adjustable lumbar
Geometry
Backset (mm) 85
Distance below top of head (mm) 60
Seat design parameters
Pass/fail Fail
Max T1 acceleration (g) 17.3
Head contact time (ms) 92
Force rating 3
Neck forces
Max neck shear force (N) 330
Max neck tension (N) 1,004

How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.
