Moderate overlap front: original test
Tested vehicle: 2010 Buick LaCrosse CX 4-door
Rating applies to 2010-16 models
The Buick LaCrosse was redesigned for the 2010 model year. Frontal ratings are assigned by the Institute based on a test conducted by General Motors.
Evaluation criteria | Rating |
---|---|
Overall evaluation | |
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Evaluation criteria | Measurement |
---|---|
Test ID | VTF0903 |
Footwell intrusion | |
Footrest (cm) | 3 |
Left (cm) | 7 |
Center (cm) | 11 |
Right (cm) | 8 |
Brake pedal (cm) | 3 |
Instrument panel rearward movement | |
Left (cm) | 2 |
Right (cm) | 1 |
Steering column movement | |
Upward (cm) | -3 |
Rearward (cm) | -3 |
A-pillar rearward movement (cm) | 2 |
Driver injury measures
Evaluation criteria | Measurement |
---|---|
Test ID | VTF0903 |
Head | |
HIC-15 | 160 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.3 |
Extension bending moment (Nm) | 12 |
Maximum Nij | 0.23 |
Chest maximum compression (mm) | 35 |
Legs | |
Femur force - left (kN) | 2.9 |
Femur force - right (kN) | 0.4 |
Knee displacement - left (mm) | 0 |
Knee displacement - right (mm) | 0 |
Maximum tibia index - left | 0.46 |
Maximum tibia index - right | 0.53 |
Tibia axial force - left (kN) | 1.7 |
Tibia axial force - right (kN) | 2.2 |
Foot acceleration (g) | |
Left | 50 |
Right | 76 |
Side: original test

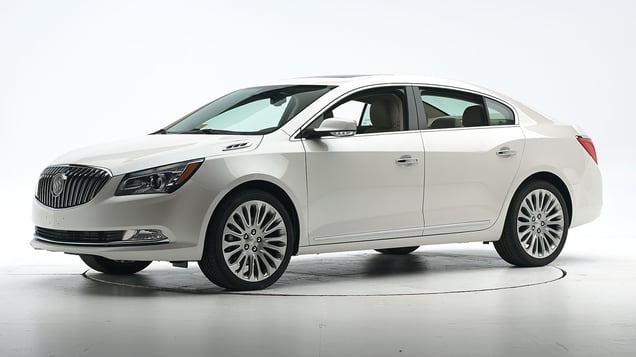

Tested vehicle: 2014 Buick LaCrosse 4-door with standard front and rear head curtain airbags and standard front and rear seat-mounted torso airbags
Rating applies to 2014-16 models
The Buick LaCrosse was redesigned for the 2010 model year. Beginning with 2014 models, side torso airbags became standard for rear seat occupants (they were optional in 2010-13 models). Also, the front door trim was modified.
Two tests of the LaCrosse were conducted, one of a 2010 model (without the then-optional rear side torso airbags) by the Institute and the other a 2014 model by General Motors. These vehicles are rated separately, except that the structure ratings for both vehicles are based on both tests.
Evaluation criteria | Rating |
---|---|
Overall evaluation | |
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
Measures of occupant compartment intrusion on driver side
Test ID | CES0923 | VTS1318 |
---|---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -15.5 | -15.0 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Evaluation criteria | Measurement |
---|---|
Test ID | VTS1318 |
Head HIC-15 | 296 |
Neck | |
Tension (kN) | 1.4 |
Compression (kN) | 0.3 |
Shoulder | |
Lateral deflection (mm) | 35 |
Lateral force (kN) | 1.7 |
Torso | |
Maximum deflection (mm) | 48 |
Average deflection (mm) | 36 |
Maximum deflection rate (m/s) | 3.84 |
Maximum viscous criterion (m/s) | 0.74 |
Pelvis | |
Iliac force (kN) | 2.8 |
Acetabulum force (kN) | 2.7 |
Combined force (kN) | 5.3 |
Left femur | |
L-M force (kN) | 0.6 |
L-M moment (Nm) | 20 |
A-P moment (Nm) | 65 |
Passenger injury measures
Evaluation criteria | Measurement |
---|---|
Test ID | VTS1318 |
Head HIC-15 | 69 |
Neck | |
Tension (kN) | 0.3 |
Compression (kN) | 0.4 |
Shoulder | |
Lateral deflection (mm) | 12 |
Lateral force (kN) | 0.7 |
Torso | |
Maximum deflection (mm) | 19 |
Average deflection (mm) | 15 |
Maximum deflection rate (m/s) | 2.53 |
Maximum viscous criterion (m/s) | 0.21 |
Pelvis | |
Iliac force (kN) | 0.2 |
Acetabulum force (kN) | 3.1 |
Combined force (kN) | 3.1 |
Left femur | |
L-M force (kN) | |
L-M moment (Nm) | 47 |
A-P moment (Nm) | 99 |
Roof strength
Tested vehicle: 2010 Buick LaCrosse CXL 4-door
Rating applies to 2010-16 models
Overall evaluation | |
---|---|
Curb weight | 3,998 lbs |
Peak force | 19,571 lbs |
Strength-to-weight ratio | 4.90 |
Head restraints & seats
Seat type: Power leather seat
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | Power leather seat |
---|---|
Geometry | |
Backset (mm) | 5 |
Distance below top of head (mm) | 16 |
Seat design parameters | |
Pass/fail | Pass |
Max T1 acceleration (g) | 14.5 |
Head contact time (ms) | 48 |
Force rating | 1 |
Neck forces | |
Max neck shear force (N) | 12 |
Max neck tension (N) | 174 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
Front crash prevention: vehicle-to-vehicle
Ratings are given for 2 different trim variations available on this vehicle.
Child seat anchors
Rating applies to 2015-16 models
Evaluation criteria | Rating |
---|---|
Overall evaluation | |
Vehicle trim | Leather |
Seat type | leather |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware. It has 1 additional seating position with a tether anchor, a single lower anchor and the ability to borrow the second anchor from another position. Note: When anchors are borrowed, they aren't available to use in their designated positions.
Rating icon | Rating |
---|---|
G | Good |
A | Acceptable |
M | Marginal |
P | Poor |
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
Lower anchor(s) can be borrowed from adjacent positions(s) | |
No hardware available |
Details by seating position
Position | Rating |
---|---|
1 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
too deep in seat | |
not too much force needed to attach | |
difficult to maneuver around anchors | |
2 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
1 dedicated anchor and 1 that can be borrowed from seat 3 | |
too deep in seat | |
not too much force needed to attach | |
easy to maneuver around anchors | |
3 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
too deep in seat | |
not too much force needed to attach | |
easy to maneuver around anchors |
Seat position 21
Lower anchor A | |
---|---|
Open access rated | No |
Depth (cm) | 2-4 |
Force (lbs) | 18 |
Clearance angle (degrees) | 65 |
Lower anchor B | |
Open access rated | No |
Depth (cm) | 2-4 |
Force (lbs) | 28 |
Clearance angle (degrees) | 63 |
Tether anchor | |
Location | Rear deck |
Confusing hardware present | No |
Has contrasting label within 3 inches of tether anchor |
No |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 22
Lower anchor A | |
---|---|
Lower latch is shared for this seat position | |
Lower anchor B | |
Open access rated | No |
Depth (cm) | 2-4 |
Force (lbs) | 31 |
Clearance angle (degrees) | 57 |
Tether anchor | |
Location | Rear deck |
Confusing hardware present | No |
Has contrasting label within 3 inches of tether anchor |
No |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 23
Lower anchor A | |
---|---|
Open access rated | No |
Depth (cm) | 2-4 |
Force (lbs) | 23 |
Clearance angle (degrees) | 62 |
Lower anchor B | |
Open access rated | No |
Depth (cm) | 4-6 |
Force (lbs) | 21 |
Clearance angle (degrees) | 51 |
Tether anchor | |
Location | Rear deck |
Confusing hardware present | No |
Has contrasting label within 3 inches of tether anchor |
No |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
