2022 Audi Q7

large SUV / 4-door SUV

2022 Audi Q7 4-door SUV

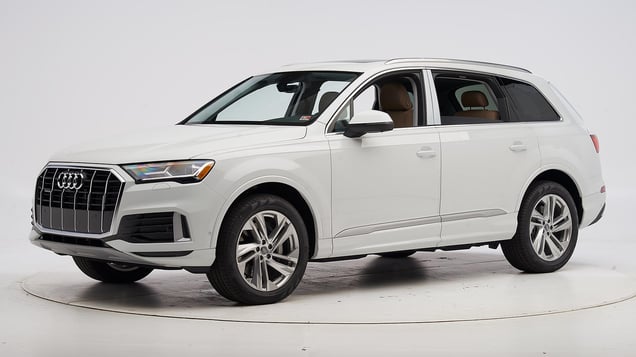

2020 Audi Q7 shown

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front: original test
Side: original test
Side: updated test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights
Front crash prevention: vehicle-to-vehicle
Standard system
Superior
Front crash prevention: pedestrian (day)
Standard system
Superior

Seat belts & child restraints

LATCH ease of use
+

Other available safety features

  • Standard daytime running lights
  • Standard blind spot detection
  • Standard lane departure warning
  • Optional lane departure prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2021-24 models

Tested vehicle: 2019 Audi Q8 3.0T Premium Plus 4-door 4wd

The Audi Q8 was introduced in the 2019 model year. The Q8 is derived from the Q7, but it has a more sloping roofline and only two rows of seats instead of three. Driver-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Volkswagen/Audi as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTN1815
Lower occupant compartment
Lower hinge pillar max (cm) 2
Footrest (cm) 5
Left toepan (cm) 3
Brake pedal (cm) 3
Parking brake (cm)
Rocker panel lateral average (cm) 0
Upper occupant compartment
Steering column 0
Upper hinge pillar max (cm) 2
Upper dash (cm) 3
Lower instrument panel (cm) 4

Driver injury measures

Test ID VTN1815
Head
HIC-15 196
Peak gs at hard contact no contact
Neck
Tension (kN) 1.0
Extension bending moment (Nm) 7
Maximum Nij 0.22
Chest maximum compression (mm) 26
Femur (kN)
Left 0.0
Right 0.0
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.24
Right 0.23
Tibia axial force (kN)
Left 1.3
Right 1.0
Foot acceleration (g)
Left 48
Right 86

How the driver-side small overlap front test is conducted

Small overlap front: passenger-side

Rating applies to 2021-24 models

Tested vehicle: 2019 Audi Q8 3.0T Premium Plus 4-door 4wd

The Audi Q8 was introduced in the 2019 model year. The Q8 is derived from the Q7, but it has a more sloping roofline and only two rows of seats instead of three. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Volkswagen/Audi as part of frontal crash test verification.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID VTP1831
Lower occupant compartment
Lower hinge pillar max (cm) 5
Footrest (cm) 7
Right toepan (cm) 4
Center toepan (cm) 2
Rocker panel lateral average (cm) 0
Upper occupant compartment
Center dash (cm) 1
Upper hinge pillar max (cm) 5
Upper dash (cm) 2
Right lower dash (cm) 2

Passenger injury measures

Test ID VTP1831
Head
HIC-15 194
Peak gs at hard contact no contact
Neck
Tension (kN) 1.1
Extension bending moment (Nm) 10
Maximum Nij 0.21
Chest maximum compression (mm) 26
Femur (kN)
Left 0.0
Right 0.2
Knee displacement (mm)
Left 1
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.29
Right 0.21
Tibia axial force (kN)
Left 0.0
Right 1.7
Foot acceleration (g)
Left 51
Right 48

Driver injury measures

Test ID VTP1831
Head
HIC-15 219
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 8
Maximum Nij 0.24
Chest maximum compression (mm) 27
Femur (kN)
Left 0.1
Right 0.1
Knee displacement (mm)
Left 1
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.34
Right 0.25
Tibia axial force (kN)
Left 1.1
Right 0.8
Foot acceleration (g)
Left 36
Right 43

How the passenger-side small overlap front test is conducted

Moderate overlap front: original test

Rating applies to 2017-24 models

Tested vehicle: 2017 Audi Q7 3.0T Premium Plus 4-door 4wd

The Audi Q7 was redesigned for the 2017 model year (no 2016 model was produced). Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Volkswagen/Audi as part of frontal crash test verification. The ratings also apply to the Audi Q8, introduced in the 2019 model year. The Q8 is derived from the Q7, but it has a more sloping roofline and only two rows of seats instead of three.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1601
Footwell intrusion
Footrest (cm) 1
Left (cm) 0
Center (cm) 1
Right (cm) 1
Brake pedal (cm) 1
Instrument panel rearward movement
Left (cm) 0
Right (cm) 0
Steering column movement
Upward (cm) 0
Rearward (cm) -7
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1601
Head
HIC-15 174
Peak gs at hard contact no contact
Neck
Tension (kN) 1.1
Extension bending moment (Nm) 11
Maximum Nij 0.23
Chest maximum compression (mm) 31
Legs
Femur force - left (kN) 0.5
Femur force - right (kN) 0.3
Knee displacement - left (mm) 7
Knee displacement - right (mm) 0
Maximum tibia index - left 0.57
Maximum tibia index - right 0.60
Tibia axial force - left (kN) 1.9
Tibia axial force - right (kN) 1.5
Foot acceleration (g)
Left 64
Right 43

How the moderate overlap front test is conducted

Side: original test

Rating applies to 2017-23 models

Tested vehicle: 2017 Audi Q7 3.0T 4-door 4wd

The Audi Q7 was redesigned for the 2017 model year (no 2016 model was produced). Side ratings are assigned by the Institute based on a test conducted by Volkswagen/Audi as part of side crash test verification. The ratings also apply to the Audi Q8, introduced in the 2019 model year. The Q8 is derived from the Q7, but it has a more sloping roofline and only two rows of seats instead of three.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1601
B-pillar to longitudinal centerline of driver's seat (cm) -27.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1601
Head HIC-15 65
Neck
Tension (kN) 1.0
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 34
Lateral force (kN) 1.2
Torso
Maximum deflection (mm) 29
Average deflection (mm) 26
Maximum deflection rate (m/s) 2.74
Maximum viscous criterion (m/s) 0.23
Pelvis
Iliac force (kN) 1.1
Acetabulum force (kN) 1.6
Combined force (kN) 2.6
Left femur
L-M force (kN) 0.2
L-M moment (Nm) 46
A-P moment (Nm) -18

Passenger injury measures

Test ID VTS1601
Head HIC-15 54
Neck
Tension (kN) 0.5
Compression (kN) 0.4
Shoulder
Lateral deflection (mm) 19
Lateral force (kN) 1.1
Torso
Maximum deflection (mm) 26
Average deflection (mm) 15
Maximum deflection rate (m/s) 2.31
Maximum viscous criterion (m/s) 0.19
Pelvis
Iliac force (kN) 1.0
Acetabulum force (kN) 2.2
Combined force (kN) 2.8
Left femur
L-M force (kN) 0.4
L-M moment (Nm) 105
A-P moment (Nm) 14

How the side crash test is conducted

Side: updated test

Rating applies to 2017-24 models

Tested vehicle: 2023 Audi Q7 3.0T 4-door 4wd

The Audi Q7 was redesigned for the 2017 model year (no 2016 model was produced). Side 2.0 ratings are assigned by the Institute based on a test of a 2023 Q7 conducted by Volkswagen/Audi as part of side crash test verification. The ratings also apply to the Audi Q8, introduced in the 2019 model year. The Q8 is derived from the Q7, but it has a more sloping roofline and only two rows of seats instead of three.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS2313
B-pillar to longitudinal centerline of driver's seat (cm) -26.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS2313
Head
HIC-15 86
Peak gs at hard contact no contact
Neck
Tension (kN) 1.0
Compression (kN) 0.5
Shoulder
Lateral deflection (mm) 28
Lateral force (kN) 1.2
Torso
Maximum deflection (mm) 24
Average deflection (mm) 22
Maximum deflection rate (m/s) 2.08
Maximum viscous criterion (m/s) 0.22
Pelvis
Combined force (kN) 4.2

Passenger injury measures

Test ID VTS2313
Head
HIC-15 40
Peak gs at hard contact no contact
Neck
Tension (kN) 0.4
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 11
Lateral force (kN) 0.6
Torso
Maximum deflection (mm) 28
Average deflection (mm) 20
Maximum deflection rate (m/s) 3.91
Maximum viscous criterion (m/s) 0.48
Pelvis
Combined force (kN) 3.6

How the side crash test is conducted

Roof strength

Rating applies to 2017-23 models

Tested vehicle: 2017 Audi Q7 3.0T Premium 4-door 4wd

Rating applies to the Audi Q7 (tested) and the structurally similar Audi Q8.

Overall evaluation
Curb weight 4,946 lbs
Peak force 24,749 lbs
Strength-to-weight ratio 5.00

How the roof strength test is conducted

Head restraints & seats

Seat type: Power leather seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Power leather seat
Geometry
Backset (mm) 22
Distance below top of head (mm) 6
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 10.9
Head contact time (ms) 61
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 223

How the head restraint & seat test is conducted
Currently, IIHS tests apply only to front seats.

Headlights

Ratings are given for 3 different headlight variations available on this vehicle.

Trim level(s)

  • Prestige trim equipped with HD Matrix Design LED Headlights with Laser Light package
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit Excessive glare

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good in all 4 tests.

The low beams created excessive glare.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on the gradual left and gradual right curves and fair on the sharp left and sharp right curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway, on both left curves and on both right curves.

Technical measurements for this test
Trim level(s)
  • Prestige trim equipped with HD Matrix Design LED Headlights with Laser Light package
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2020-23 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 97.2 m 24.4%
Straightaway left edge 63.3 m 24.4%
250m radius right curve, right edge 66.8 m 45.9%
250m radius left curve, left edge 65.2 m 93.3%
150m radius right curve, right edge 58.7 m 83.5%
150m radius left curve, left edge 57.5 m 102.6%
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 161.5 m
Straightaway left edge 133.0 m
250m radius right curve, right edge 79.3 m
250m radius left curve, left edge 81.8 m
150m radius right curve, right edge 62.3 m
150m radius left curve, left edge 62.7 m

Trim level(s)

  • Premium Plus trim equipped with Matrix-Design LED Headlights package
  • Prestige trim
Low-beam headlight type LED projector
High-beam headlight type LED reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit Excessive glare

Low beams
On the straightaway, visibility was good on the left side of the road and fair on the right side. On curves, visibility was fair in all 4 tests.

The low beams created excessive glare.

High beams
On the straightaway, visibility was fair on the left side of the road and inadequate on the right side. On curves, visibility was good on the gradual left curve, fair on the gradual right and sharp left curves, and inadequate on the sharp right curve.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway, on both left curves and on both right curves.

Technical measurements for this test
Trim level(s)
  • Premium Plus trim equipped with Matrix-Design LED Headlights package
  • Prestige trim
Low-beam headlight type LED projector
High-beam headlight type LED reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2020-23 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 83.2 m 5.9%
Straightaway left edge 66.7 m 5.9%
250m radius right curve, right edge 60.5 m 34.0%
250m radius left curve, left edge 60.1 m 90.2%
150m radius right curve, right edge 52.2 m 103.6%
150m radius left curve, left edge 52.2 m 151.6%
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 119.4 m
Straightaway left edge 133.6 m
250m radius right curve, right edge 72.3 m
250m radius left curve, left edge 75.7 m
150m radius right curve, right edge 54.8 m
150m radius left curve, left edge 56.2 m

Trim level(s)

  • Premium trim
  • Premium Plus trim
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit Excessive glare

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was fair in all 4 tests.

The low beams created excessive glare.

High beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was inadequate in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the gradual left curve.

Technical measurements for this test
Trim level(s)
  • Premium trim
  • Premium Plus trim
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2020-23 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 110.6 m 169.5%
Straightaway left edge 72.5 m 169.5%
250m radius right curve, right edge 61.7 m 177.9%
250m radius left curve, left edge 63.0 m 97.3%
150m radius right curve, right edge 47.5 m 279.3%
150m radius left curve, left edge 48.7 m 26.4%
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 102.3 m
Straightaway left edge 70.8 m
250m radius right curve, right edge 61.0 m
250m radius left curve, left edge 63.4 m
150m radius right curve, right edge 45.4 m
150m radius left curve, left edge 48.0 m

How headlights are evaluated

Front crash prevention: vehicle-to-vehicle

System details

  • Standard Audi Pre Sense Front

Package name

  • Standard Standard

Overall evaluation

Applies to 2020-23 models

Superior
Superior
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, impact speed was reduced by 11 mph.
  • In the 25 mph test, this vehicle avoided a collision.

How front crash prevention is evaluated

Front crash prevention: pedestrian (day)

System details

  • standard Pre sense front

Overall evaluation

This rating applies to all 2020-24 models

Superior
Superior

Crossing child

  • In the 12 mph test, impact speed was reduced by 10 mph.
  • In the 25 mph test, this vehicle avoided a collision.

Crossing adult

  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

Parallel adult

  • In the 25 mph test, this vehicle avoided a collision.
  • In the 37 mph test, this vehicle avoided a collision. A warning was issued 2.3 seconds before impact.

Child seat anchors

Rating applies to 2017-24 models

Overall evaluation
+
extra LATCH positions
Vehicle trim 3.0T Premium
Seat type leather

This vehicle has 5 rear seating positions with complete child seat attachment (LATCH) hardware.

Overall evaluation
+
extra LATCH positions
Vehicle trim 3.0T Premium
Seat type leather
1 2 3 6 4
G Good
A Acceptable
M Marginal
P Poor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
4
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
6
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 93
Lower anchor B
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 93
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
Yes

Seat position 22

2

Lower anchor A
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 84
Lower anchor B
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 61
Tether anchor
Location Middle seatback
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
Yes

Seat position 23

1

Lower anchor A
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 93
Lower anchor B
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 90
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
Yes

Seat position 31

6

Lower anchor A
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 84
Lower anchor B
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 95
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor
Yes

Seat position 33

4

Lower anchor A
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 90
Lower anchor B
Open access rated Yes
Depth Visible
Force (lbs) 0
Clearance angle (degrees) 83
Tether anchor
Location Middle seatback
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
Yes

How child seat anchors are evaluated

End of main content
