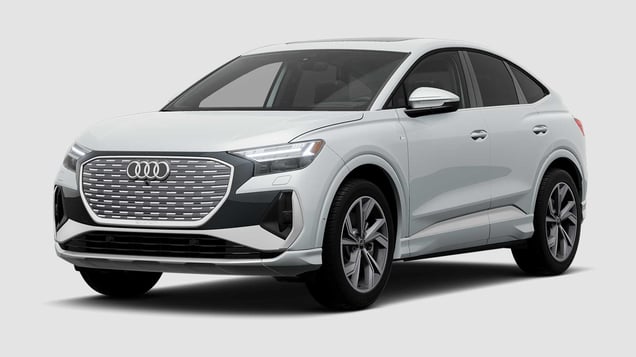

2026 Audi Q4 Sportback e-tron
midsize luxury SUV / 4-door SUV
Small overlap front
The small overlap front evaluation consists of a driver-side and a passenger-side component. If the results of the two evaluations differ, then the combined small overlap rating is equal to the lower rating.
Driver-side
Tested vehicle: 2021 Volkswagen ID.4 Pro EV 4-door
Rating applies to 2022-26 models
The Volkswagen ID.4 was introduced in the 2021 model year as the first electric SUV in Volkswagen's lineup. These ratings also apply to the Audi Q4 e-tron and Q4 Sportback e-tron, introduced in the 2022 model year.
| Evaluation criteria | Rating |
|---|---|
| Overall driver-side evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEN2105 |
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 4 |
| Footrest (cm) | 5 |
| Left toepan (cm) | 5 |
| Brake pedal (cm) | 7 |
| Parking brake (cm) | |
| Rocker panel lateral average (cm) | 0 |
| Upper occupant compartment | |
| Steering column | 0 |
| Upper hinge pillar max (cm) | 5 |
| Upper dash (cm) | 7 |
| Lower instrument panel (cm) | 5 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEN2105 |
| Head | |
| HIC-15 | 307 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.7 |
| Extension bending moment (Nm) | 8 |
| Maximum Nij | 0.30 |
| Chest maximum compression (mm) | 27 |
| Femur (kN) | |
| Left | 0.2 |
| Right | 0.0 |
| Knee displacement (mm) | |
| Left | 0 |
| Right | 0 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.33 |
| Right | 0.48 |
| Tibia axial force (kN) | |
| Left | 1.6 |
| Right | 1.5 |
| Foot acceleration (g) | |
| Left | 68 |
| Right | 57 |
Passenger-side
Tested vehicle: 2021 Volkswagen ID.4 Pro EV 4-door
Rating applies to 2022-26 models
The Volkswagen ID.4 was introduced in the 2021 model year as the first electric SUV in Volkswagen's lineup. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Volkswagen/Audi. These ratings also apply to the Audi Q4 e-tron and Q4 Sportback e-tron, introduced in the 2022 model year.
| Evaluation criteria | Rating |
|---|---|
| Overall passenger-side evaluation | |
| Structure and safety cage | |
| Passenger injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Passenger restraints and dummy kinematics | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics | |
Technical measurements for this test
Measures of occupant compartment intrusion on passenger side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTP2111 |
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 5 |
| Footrest (cm) | 7 |
| Right toepan (cm) | 5 |
| Center toepan (cm) | 3 |
| Rocker panel lateral average (cm) | 0 |
| Upper occupant compartment | |
| Center dash (cm) | 3 |
| Upper hinge pillar max (cm) | 4 |
| Upper dash (cm) | 3 |
| Right lower dash (cm) | 3 |
Passenger injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTP2111 |
| Head | |
| HIC-15 | 266 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.9 |
| Extension bending moment (Nm) | 25 |
| Maximum Nij | 0.28 |
| Chest maximum compression (mm) | 23 |
| Femur (kN) | |
| Left | 0.3 |
| Right | 0.7 |
| Knee displacement (mm) | |
| Left | 0 |
| Right | 0 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.54 |
| Right | 0.37 |
| Tibia axial force (kN) | |
| Left | 2.5 |
| Right | 2.7 |
| Foot acceleration (g) | |
| Left | 57 |
| Right | 74 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTP2111 |
| Head | |
| HIC-15 | 324 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.1 |
| Extension bending moment (Nm) | 7 |
| Maximum Nij | 0.24 |
| Chest maximum compression (mm) | 35 |
| Femur (kN) | |
| Left | 0.0 |
| Right | 0.3 |
| Knee displacement (mm) | |
| Left | 0 |
| Right | 0 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.29 |
| Right | 0.43 |
| Tibia axial force (kN) | |
| Left | 2.0 |
| Right | 2.1 |
| Foot acceleration (g) | |
| Left | 51 |
| Right | 62 |
Moderate overlap front: updated test
Tested vehicle: 2025 Audi Q4 55 e-tron quattro 4-door 4wd
Rating applies to 2025-26 models
The Audi Q4 e-tron and Q4 Sportback e-tron were introduced for the 2022 model year. Beginning with 2025 models, rear passenger seatbelt changes were implemented. These ratings apply to both Q4 e-tron and Q4 Sportback e-tron models.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Thigh/hip | |
| Leg/foot | |
| Driver restraints and dummy kinematics | |
| Rear passenger injury measures | |
| Head/neck | |
| Chest | |
| Thigh | |
|
Rear passenger restraints and dummy kinematics
| |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF2550 |
| Footwell intrusion | |
| Footrest (cm) | 3 |
| Left (cm) | 4 |
| Center (cm) | 4 |
| Right (cm) | 3 |
| Brake pedal (cm) | 1 |
| Instrument panel rearward movement | |
| Left (cm) | 0 |
| Right (cm) | 1 |
| Steering column movement | |
| Upward (cm) | -2 |
| Rearward (cm) | -4 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF2550 |
| Head | |
| HIC-15 | 234 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.8 |
| Extension bending moment (Nm) | 10 |
| Maximum Nij | 0.19 |
| Chest maximum compression (mm) | 28 |
| Femur (kN) | |
| Left | 0.2 |
| Right | 0.2 |
| Knee displacement (mm) | |
| Left | 0 |
| Right | 0 |
| Knee-thigh-hip injury risk (%) | |
| Left | 1 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.21 |
| Right | 0.33 |
| Tibia axial force (kN) | |
| Left | 1.3 |
| Right | 1.5 |
| Foot acceleration (g) | |
| Left | 35 |
| Right | 39 |

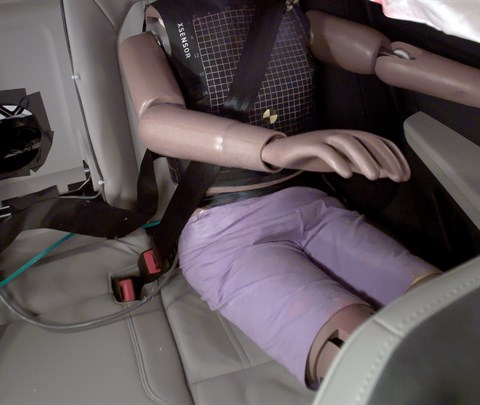

Rear passenger injury measures
| Test ID | CEF2550 |
|---|---|
| Head | |
| HIC-15 for head contact during forward excursion | no contact |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.7 |
| Compression (kN) | 0.1 |
| Maximum Nij for head contact during forward excursion | no contact |
| Chest | |
| Chest index | 47 |
| Shoulder belt tension (kN) | 3.8 |
| Thigh (kN) | |
| Left femur compression | 0.2 |
| Right femur compression | 0.2 |

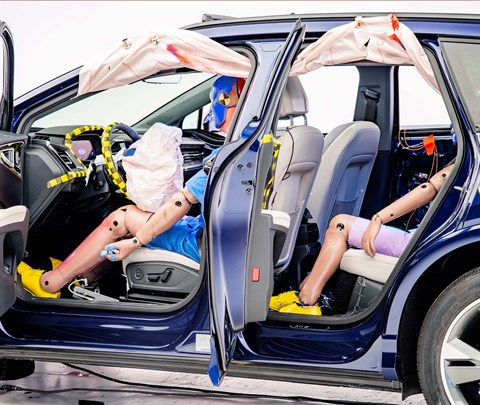

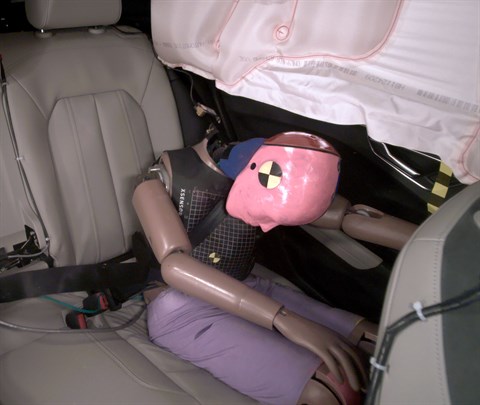

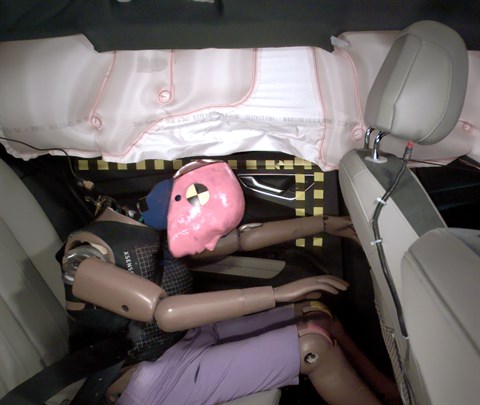

Side: updated test
Tested vehicle: 2021 Volkswagen ID.4 Pro S EV 4-door 4wd
Rating applies to 2022-26 models
The Volkswagen ID.4 was introduced in the 2021 model year as the first electric SUV in Volkswagen's lineup. These ratings also apply to the Audi Q4 e-tron and Q4 Sportback e-tron, introduced in the 2022 model year.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Rear passenger head protection | |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES2213 |
| B-pillar to longitudinal centerline of driver's seat (cm) | -29.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES2213 |
| Head | |
| HIC-15 | 41 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.8 |
| Compression (kN) | 0.1 |
| Shoulder | |
| Lateral deflection (mm) | 25 |
| Lateral force (kN) | 0.8 |
| Torso | |
| Maximum deflection (mm) | 21 |
| Average deflection (mm) | 18 |
| Maximum deflection rate (m/s) | 1.70 |
| Maximum viscous criterion (m/s) | 0.15 |
| Pelvis | |
| Combined force (kN) | 1.6 |
Passenger injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES2213 |
| Head | |
| HIC-15 | 243 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.3 |
| Compression (kN) | 0.5 |
| Shoulder | |
| Lateral deflection (mm) | 7 |
| Lateral force (kN) | 0.5 |
| Torso | |
| Maximum deflection (mm) | 18 |
| Average deflection (mm) | 14 |
| Maximum deflection rate (m/s) | 1.94 |
| Maximum viscous criterion (m/s) | 0.19 |
| Pelvis | |
| Combined force (kN) | 2.0 |
Headlights
Trim level(s): All trims
| Evaluation criteria | Rating |
|---|---|
| Low-beam headlight type | LED reflector |
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was good on the left side of the road and fair on the right side. On curves, visibility was fair on the sharp left curve and inadequate on the gradual left and both right curves.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on the left side of the road and fair on the right side. On curves, visibility was good on the gradual left curve, fair on the sharp left curve and inadequate on both right curves.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.
Technical measurements for this test
| Evaluation criteria | Measurement |
|---|---|
| Trim level(s) |
|
| Low-beam headlight type | LED reflector |
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating Applies to 2022-26 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 82.4 m | None |
| Straightaway left edge | 58.8 m | None |
| 250m radius right curve, right edge | 50.7 m | None |
| 250m radius left curve, left edge | 53.1 m | None |
| 150m radius right curve, right edge | 42.2 m | None |
| 150m radius left curve, left edge | 48.0 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 134.2 m |
| Straightaway left edge | 146.6 m |
| 250m radius right curve, right edge | 61.3 m |
| 250m radius left curve, left edge | 77.8 m |
| 150m radius right curve, right edge | 47.7 m |
| 150m radius left curve, left edge | 57.3 m |
